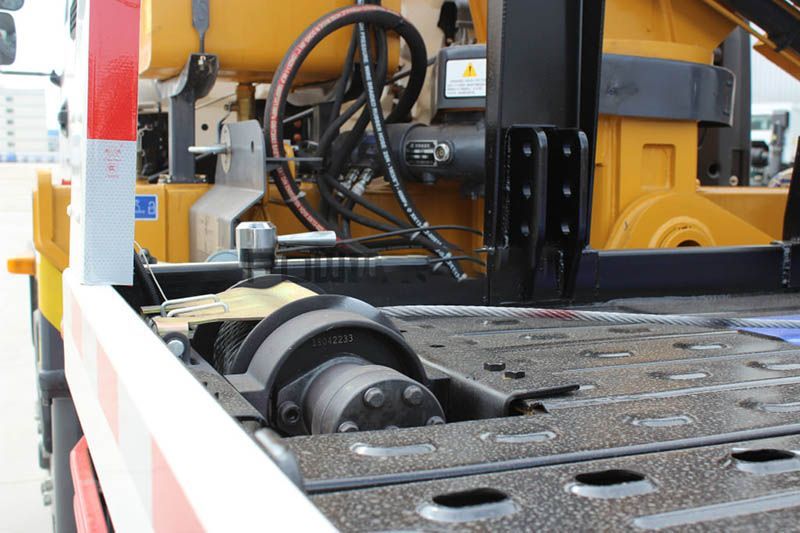

8Tons towing winch
8Tons towing winch with 25m cable, easy operation

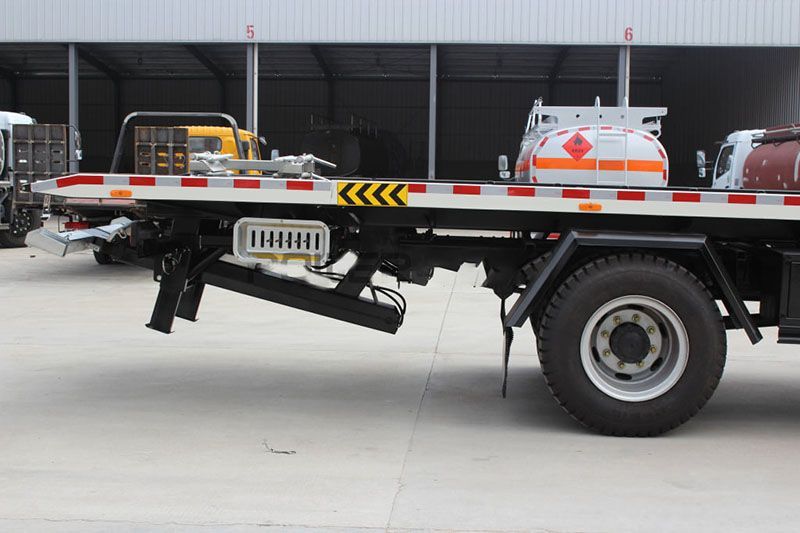

Integrated designed wrecker platform
Integrated designed wrecker platform, with steel thickness 5mm, durable performance
details show
Manufacturer | GP Motors Technology (Chongqing)Co.Ltd | ||
Product Name | QINGLING Recovery Wrecker Trucks | ||
Vehicle Brand Series | QIGLING | ||
Vehicle Model | FTR | ||
Production Time | 25 days | ||
Chassis parameters | Overall dimensions | mm | 9100*2300*2350 |
Gross weight | kg | 16,000 | |
Kerb weight | 8,500 | ||
Wheelbase | mm | 5,550 | |
Driving type | 4*2 | ||
Chassis model | QINGLING FTR middle-duty | ||
Tire size | 10.00-20 | ||
Number of Tires | 6+1 | ||
Passengers in cab | 3 | ||
Engine | Engine model | 4HK1-TC50 | |
Type of fuel | Diesel | ||
Power | 190HP | ||
Max speed | Km/h | 110 | |
Emission standard | EURO 4,5,6 | ||
Wrecker performance | Flatbed size | 6500*2300mm | |
Flatbed payload capacity | 8,500 kg | ||
Crane | 5 Tons knuckle boom crane | ||

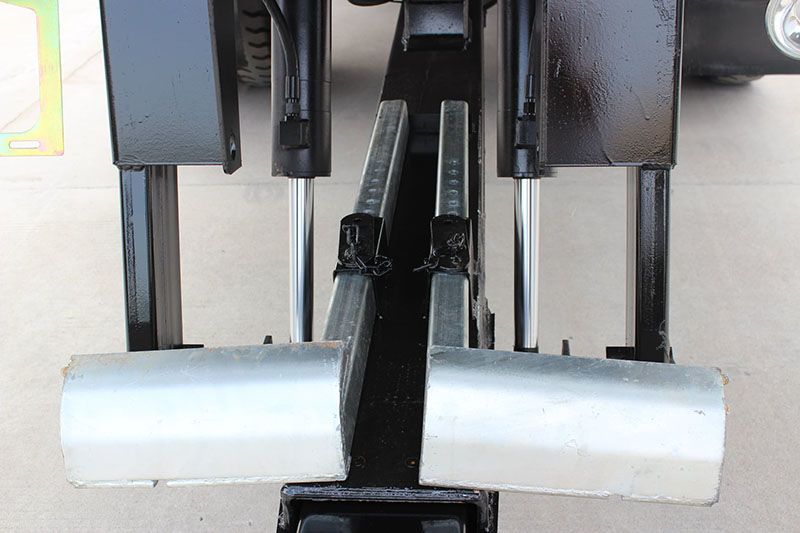

Under-lift | 3,000kg Towing capacity | ||
Max extended with 1.7 m | |||
Winch no | 1 no | ||
Winch capacity | 4,000 kg | ||
Winch cable | 25 m length | ||
Washing tank | YES | ||

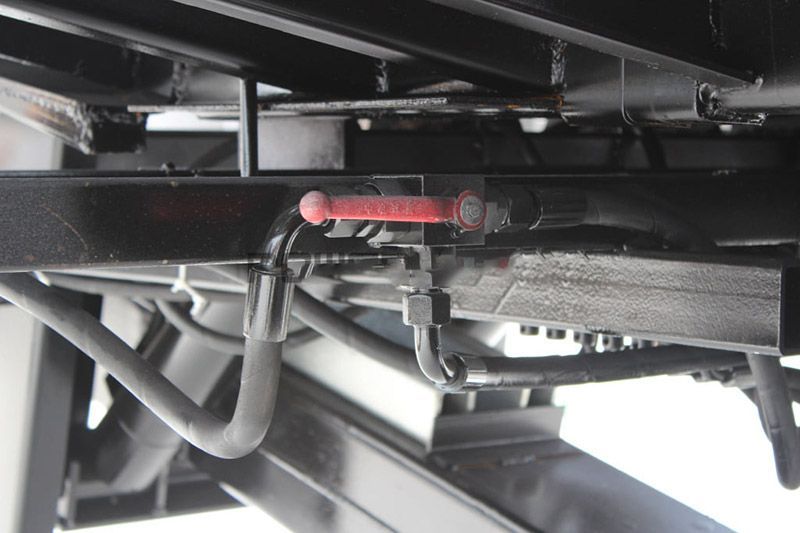

Operation | Hydraulic control | ||

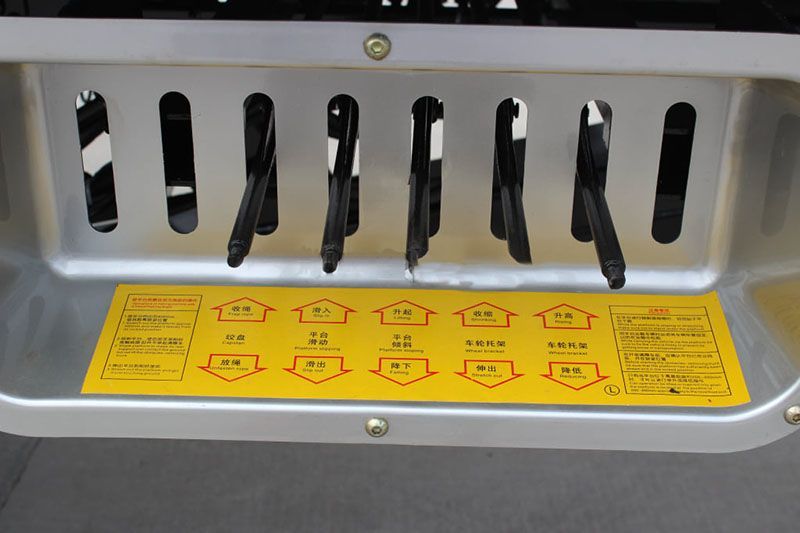

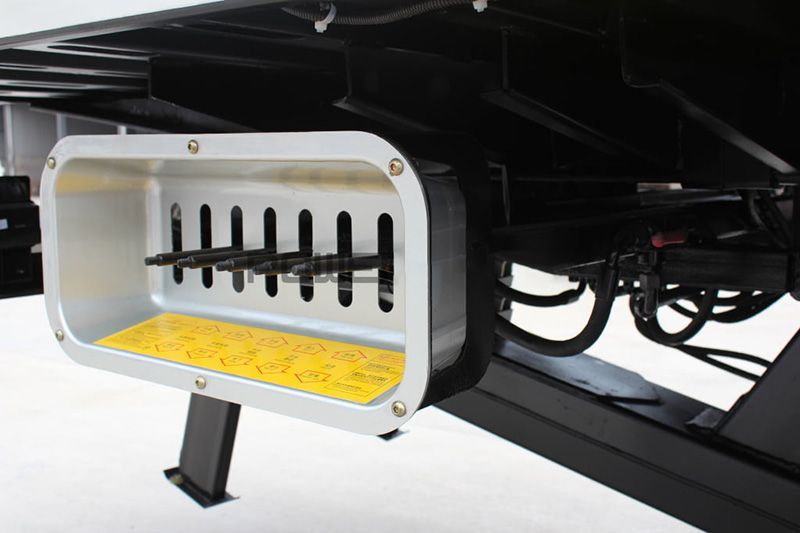

Control Panel kit | Control lever kit on both side | ||
Auxiliary rescue equipment | Factory | ||
Painting | Two primers, and one final paint coating | ||
Color & LOGO | According to wish | ||
Factory standard | “U” shape Sub Frame, 2 pcs Auxiliary wheels, Rear tail lights LED, both sides electronic lights, Hand washing water tank, 4 pcs bundling belt, Fork seat, Drag mechanism and so on. | ||
Documents | English operation manual, Spare parts list, and all necessary export docs. | ||
Optional equipment | 1, Wireless remote control 2, Aluminum alloy body 3, Italy imported multi-way valve 4, Optional different flatbed size. | ||
