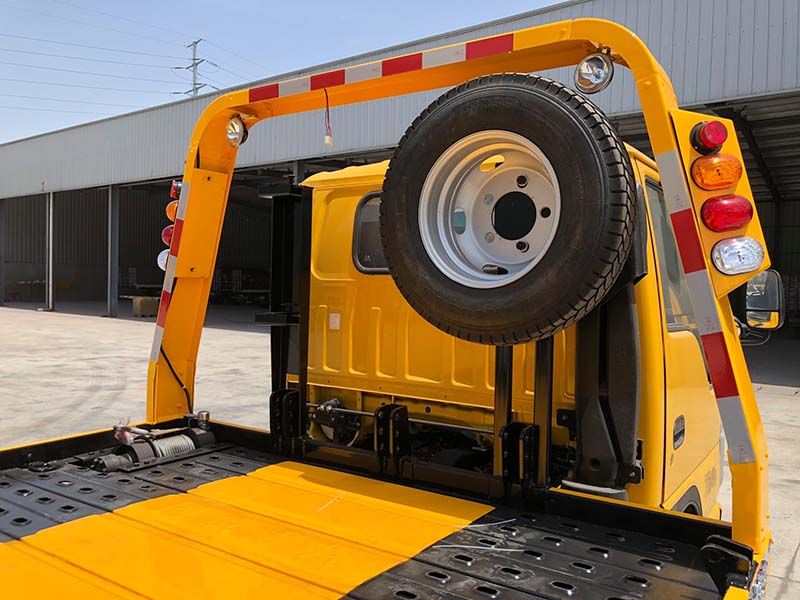

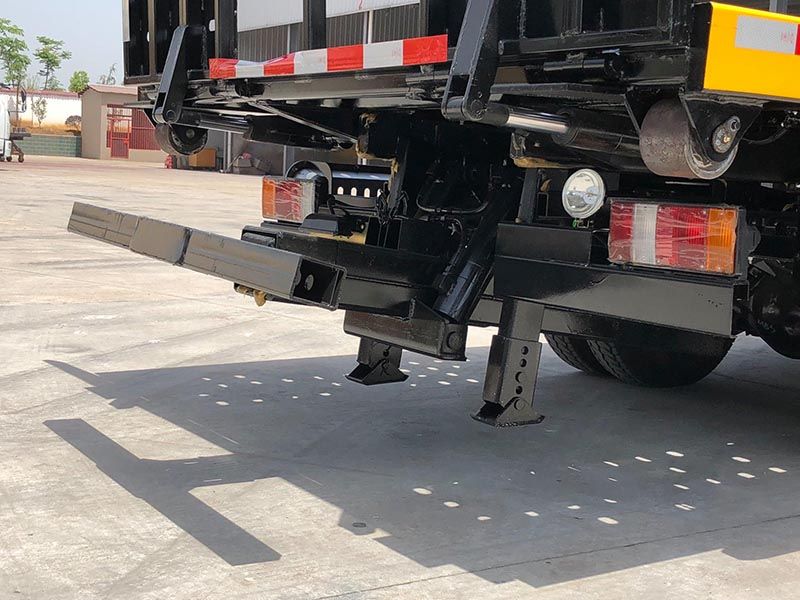

Auxiliary wheel
used to help tow a vehicle whose tires have been immobilized in an accident

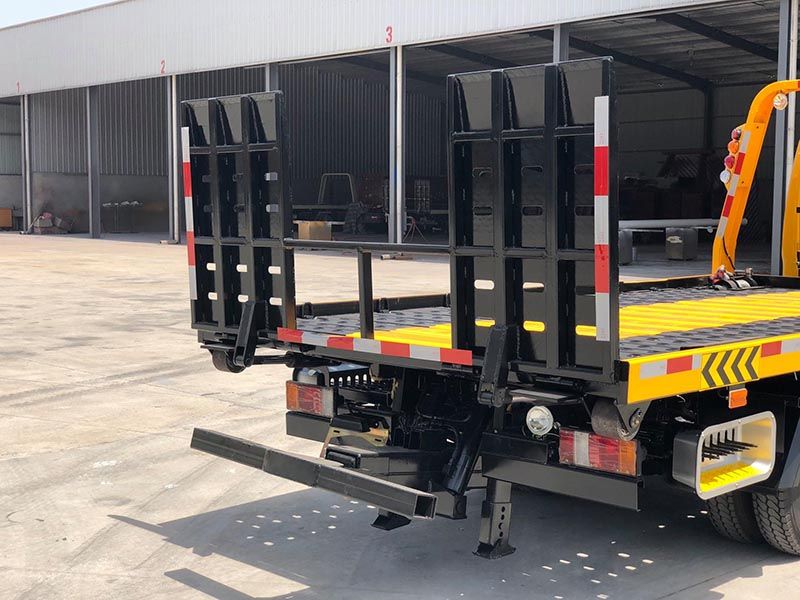

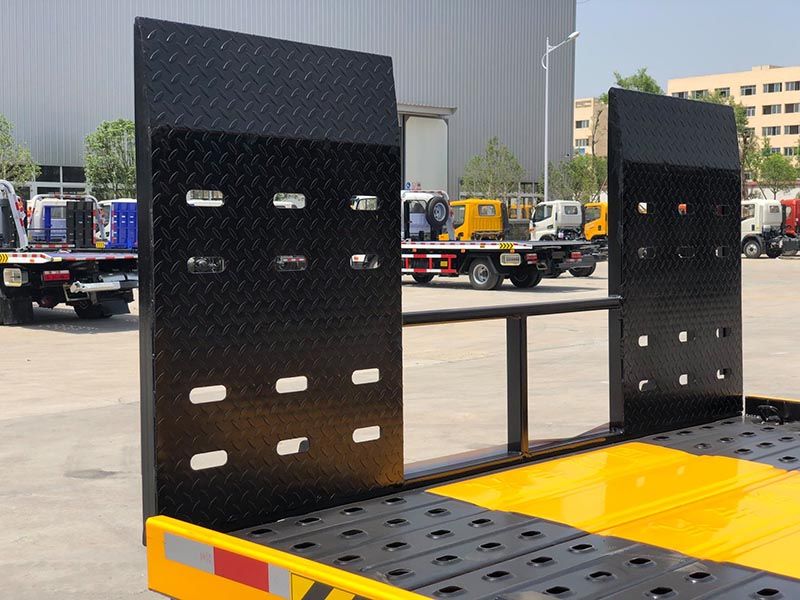

Foldable rear gate
1.3m foldable rear gate used to drive the vehicle directly onto the platform
details show

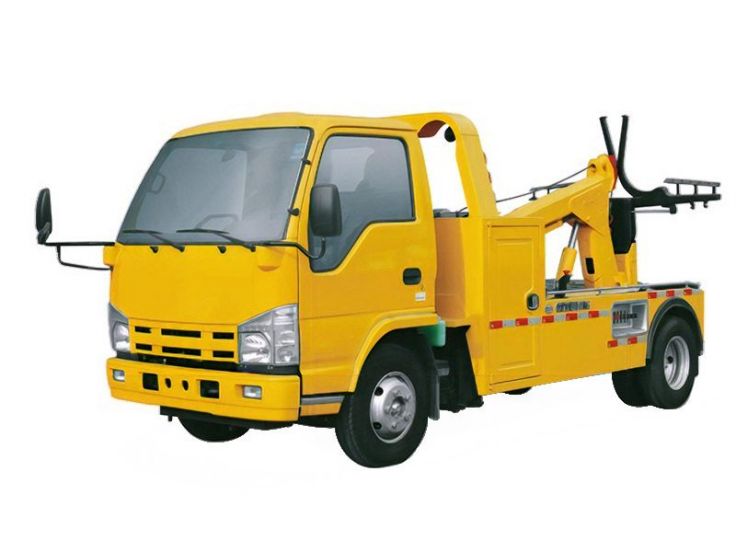

100P | |||
Driving Type | 4x2 (Left hand drive) | ||
Wheelbase | 3815 mm | ||
Cab | Forward control over engine, all-steel-welded construction | ||
Boom Structure | Rated towing weight | 7300kg | |
Max. Lifting weight | 1500kg | ||
Max. Lifting weight of full extending boom | 800kg | ||
Effective length of boom | 1600mm | ||
Extension traveling of boom | 1200mm | ||
Elevation of boom (upper/ lower) | 9~-10° | ||
Platform Structure | Min. Elevation of full extending platform | 8° | |
Max. Loading of platform | 3000kg | ||
External dimension of platform (L×W×H) | 5400×2140×57mm | ||
Ground clearance of cage floor | 1014mm | ||
Max. Pulling power of winch | 4000kg | ||
Dia. Of steel cable | 10mm | ||
Length of steel cable | 25m | ||
Min. Speed of steel cable | 4.5m/min | ||
Engine | Model | 4JB1CN | |
Type | Diesel, turbo charged inter-cooled, 4 cylinder | ||
Max. Power | 72 KW (98 HP) | ||
Gearbox | MSB 5-shift, mechanical type, 5 forward and 1 reverse with | ||
Tire | 7.00-15 | ||
Color | Yellow (Any color & logos up to wish) | ||
Max Speed | 100 km/h | ||
