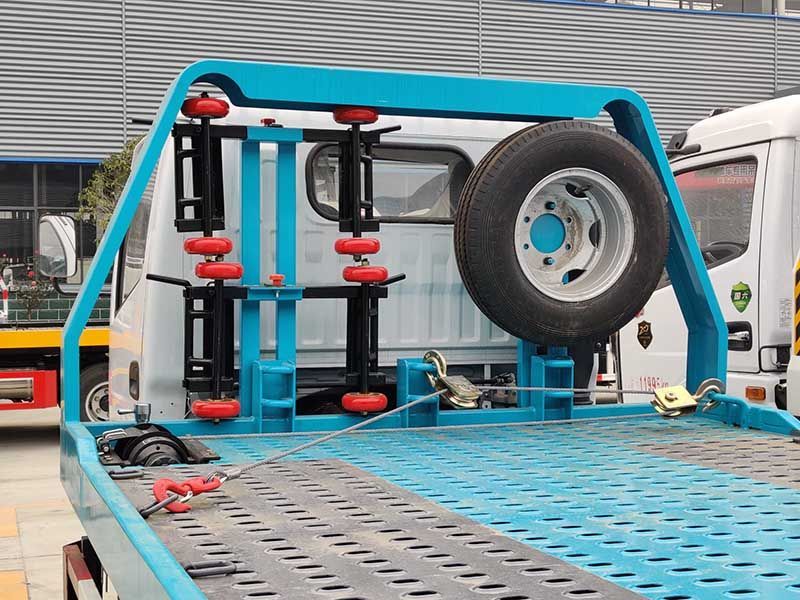

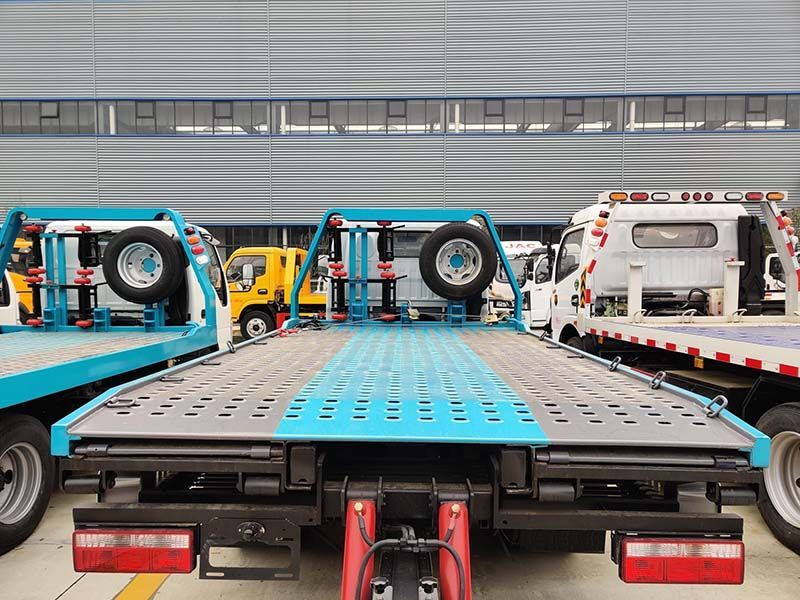

Integrated designed wrecker platform
Integrated designed wrecker platform, with steel thickness 5mm, durable performance

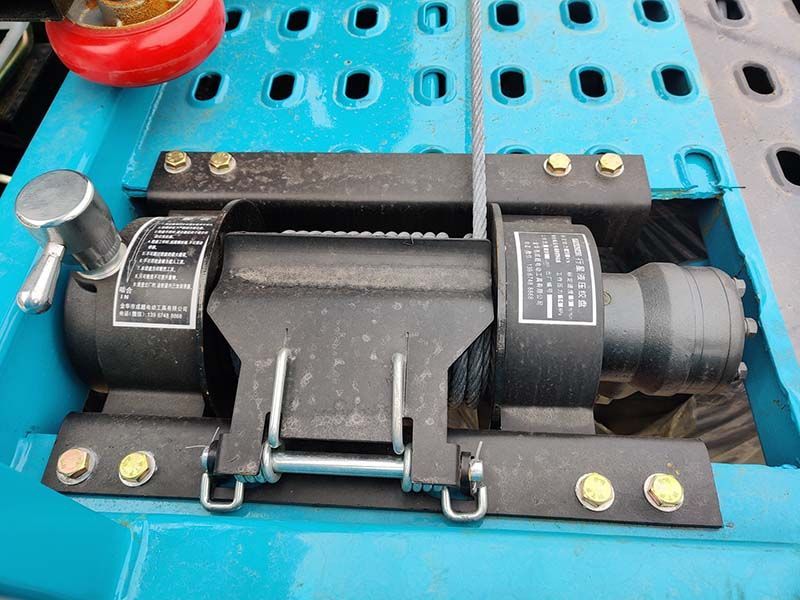

3 Tons towing winch
3 Tons towing winch with 25m cable, easy operation
details show
| Manufacturer | Qingling Trucks | |
| Item | QINGLING 3ton mini Flatbed Wrecker Towing Tow Truck | |
| Brand | QINGLING | |
| Production Time | 25 days | |
| Truck Chassis | ||
| Specification | Overall dimensions | 7380*2400*2400 mm |
| Maximum payload | 3000 kg | |
| Minimum tilt angle | H-shaped outriggers can be operated simultaneously or individually | |
| Wheelbase | 3360 mm | |
| Driving type | 4*2 | |
| Chassis model | QINGLING 100p light-duty | |
| Tire size | 7.00R16 | |
| Passengers in cab | 2 | |
| Engine | Engine model | 4KH1CN5LS |
| Type of fuel | Diesel | |
| Power | 98 HP | |
| Gearbox | MSB 5-shift gearbox | |
| Upper Structure | ||
| Wrecker performance | Capacity | 3Tons |
| Platform Size | 5600x2220 mm | |

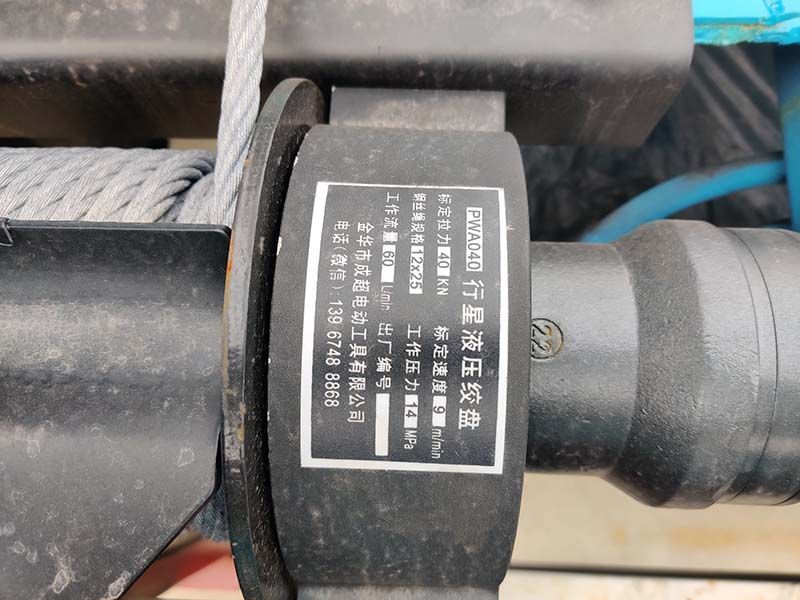

| Winch | One set, 3Tons towing winch, 25m cable | |
| Clean Water Tanker | 20-50L as required, for hand washing | |
| Control | Control both on both sides of the boom crane, English language or your language | |

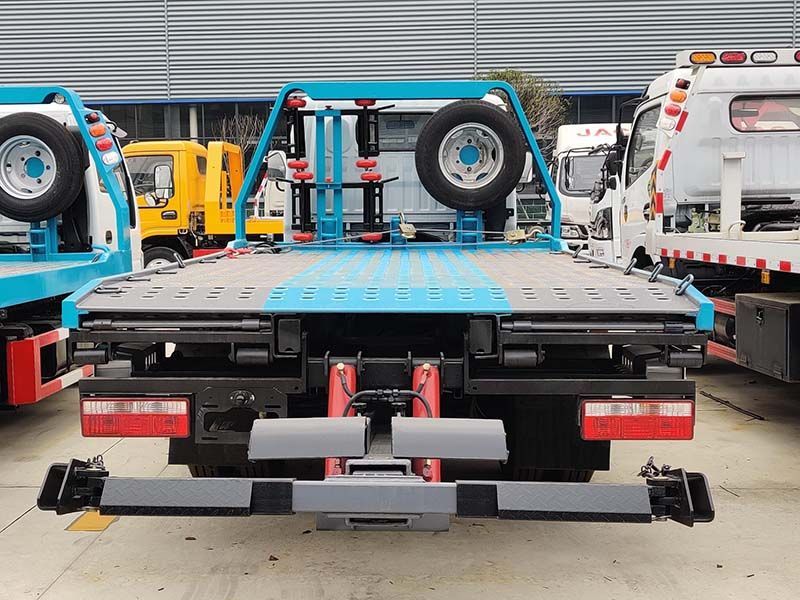

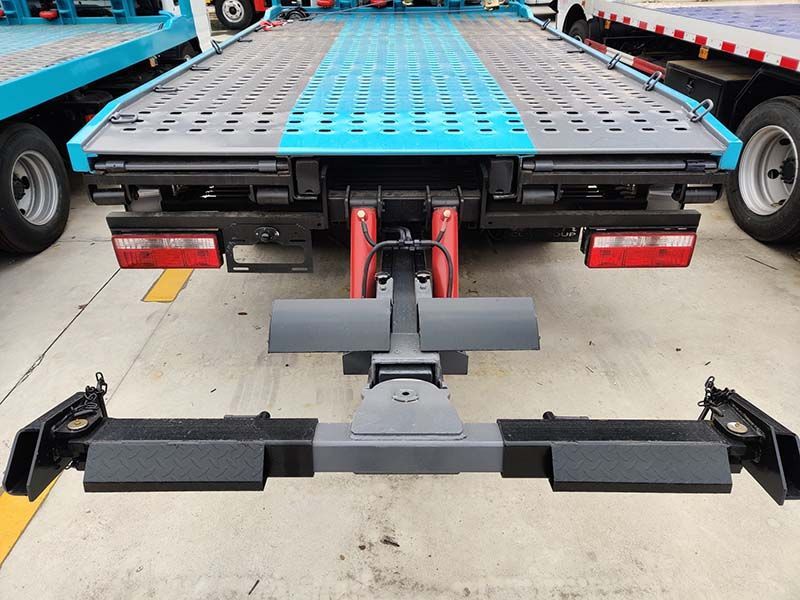

| Under-lifter | 3000kg capacity with extend length 1.7m | |
| Auxiliary Resuce Equipment | Factory standard | |
| Painting | Two primers, and one final paint coating | |
| Color & LOGO | According to wish | |
| Factory standard | “U” shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and rubber flaps... | |
| Documents | English operation manual, Spare parts list, and all necessary export docs. | |
| Optional equipment | 1, Other working weight (Any options) | |
| 2, Import multi-way valve optional | ||
| 3, Working camera can be equipped | ||
| 4, Optional Remote Control | ||
