Hydraulic cylinders

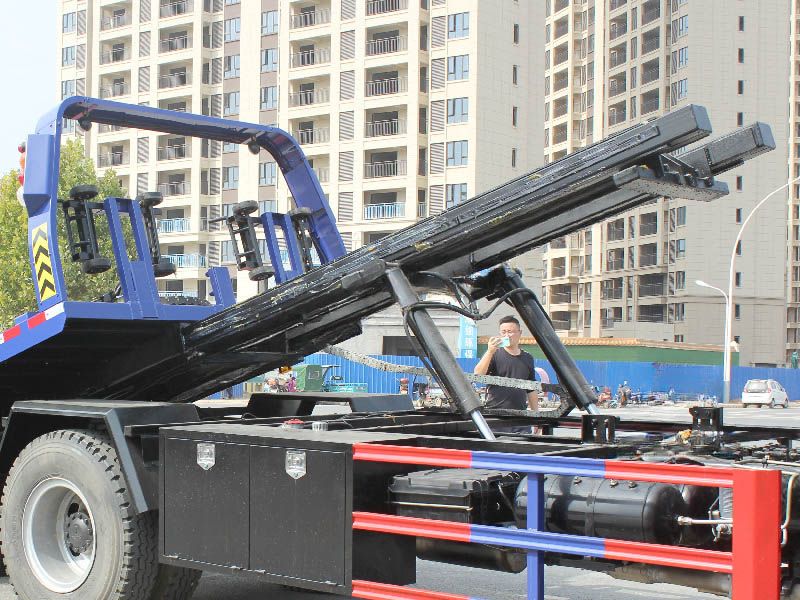

Durable hydraulic cylinder for wrecker truck, platform lifting and extending

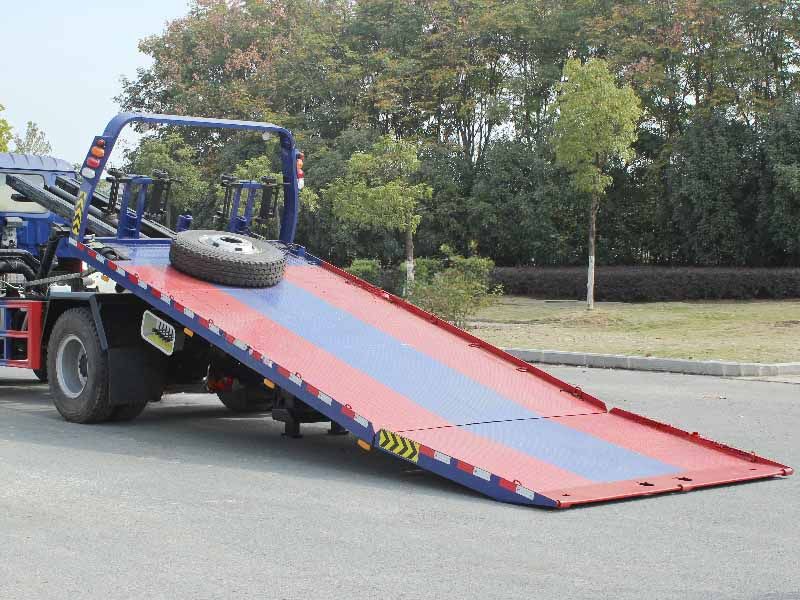

5mm thickness steel Wrecker Platform
Strong Wrecker platform with steel thickness 5mm, durable and good performance
details show
Manufacturer | Qingling Trucks | |

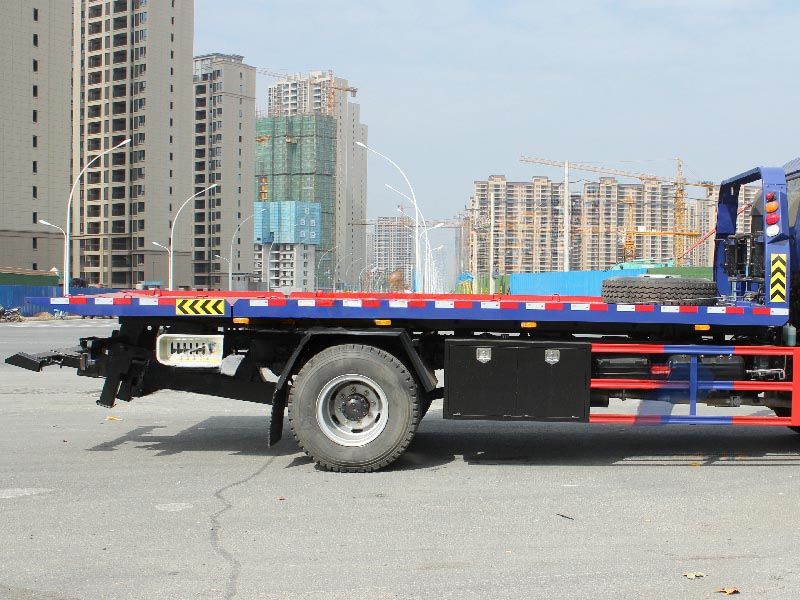

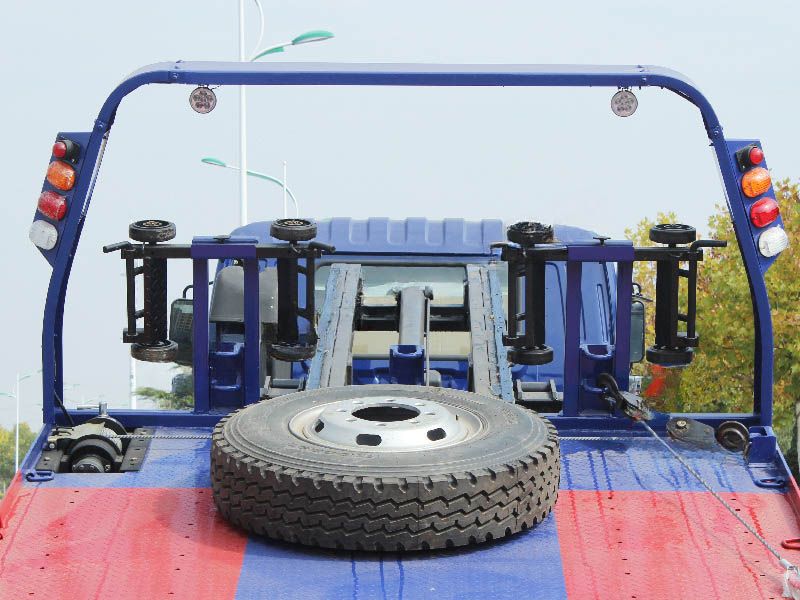

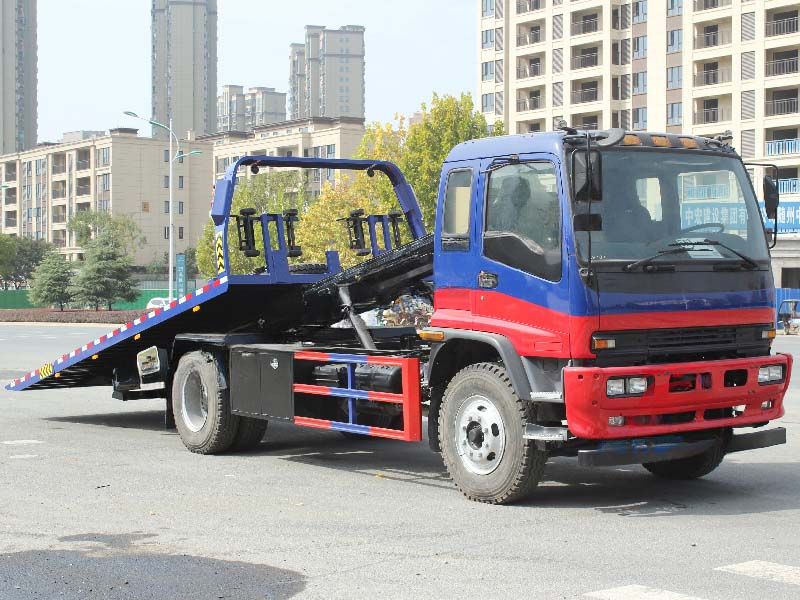

Item | Qingling FVR Recovery Wrecker Truck | |
Brand | QINGLING | |
Model | PT08TQZ | |
Production Time | 25 days | |
Truck Chassis | ||
Specification | Overall dimensions | 9100*2500*3050 mm |
Gross weight | 16,000 kg | |
Kerb weight | 8,500 kg | |
Wheelbase | 4,500 mm | |
Driving type | 4*2 | |
Chassis model | Qingling FVR heavy-duty | |
Tire size | 10.00R20 | |
Passengers in cab | 3 | |
Engine | Engine model | 6HK1-TCL |
Type of fuel | Diesel | |
Power | 240 HP | |
Gearbox | MLD 6-shift gearbox | |
Upper Structure | ||
Wrecker performance | Capacity | 8Tons |
Platform Size | 6500x2300 mm | |

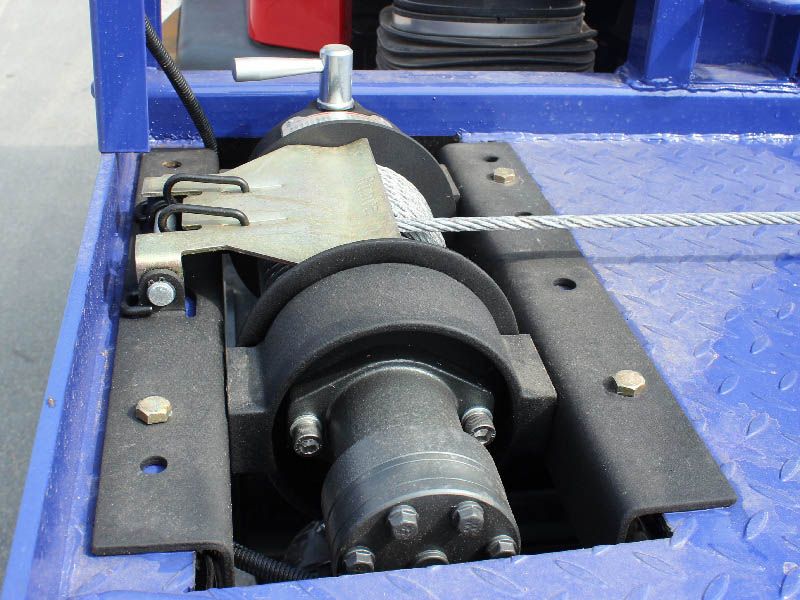

Winch | One set, 8Tons towing winch, 25m cable | |
Clean Water Tanker | 20-50L as required, for hand washing | |
Control | Control both on both sides of the boom crane, English language or your language | |

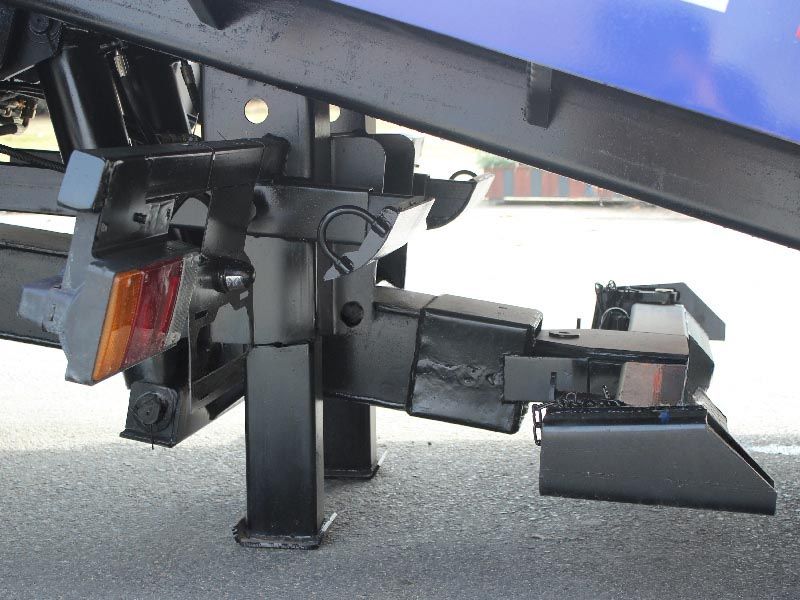

Under-lifter | 3000kg capacity with extend length 1.7m | |
Auxiliary Resuce Equipment | Factory standard | |
Painting | Two primers, and one final paint coating | |
Color & LOGO | According to wish | |
Factory standard | “U” shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and rubber flaps... | |
Documents | English operation manual, Spare parts list, and all necessary export docs. | |
Optional equipment | 1, Other working weight (Any options) 2, Import multi-way valve optional 3, Working camera can be equipped 4, Optional Remote Control | |
