Original Italy brand MORO PM110W
Original Italy brand MORO PM110W, top quality with air flow rate 16400Liters/min
Body application
SPECIFICATIONS
Manufacturer | Qingling Trucks | |

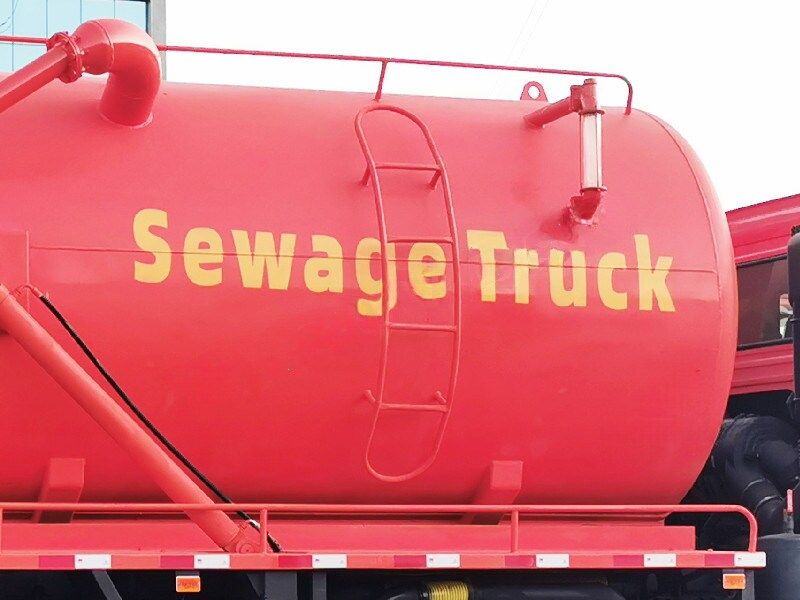

Item | QINGLING GIGA Septic Vacuum Tanker Truck | |
Brand | QINGLING | |
Model | PT20XW | |
Production Time | 25 days | |
Truck Chassis | ||
Specification | Overall dimensions | 9100*2500*3200 mm |
Gross weight | 25,000 kg | |
Kerb weight | 12,500 kg | |
Wheelbase | 4,565+1370 mm | |
Driving type | 6*4 | |
Chassis model | QINGLING GIGA Heavy-duty | |
Tire size | 315/80R22.5 | |
Passengers in cab | 3 | |
Engine | Engine model | 6WG1-TCG52 |
Type of fuel | Diesel | |
Power | 420 HP | |
Gearbox | FAST 12-shift gearbox | |
Upper Structure | ||
Water Tanker performance | Tank Capacity | 20,000L |
Tank Material | 6mm carbon steel with antiseptic treatment | |
Vacuum Pump | Original Italy Import famous MORO brand | |
PM110W model, flow rate 16400Liters/min | ||
Suction Time | 250 s | |
Tank lifting angle | ≥45° | |
Self-suction height | 7 m | |
Suction hose | 7m length with DN 100 mm | |
Rear cover | Hydraulic control | |
Control Panel | English | |
Discharging system | Gravity discharge or pump out from tank body. | |
Painting | Two primers, and one final paint coating | |
Color & LOGO | According to wish | |
Factory standard | “U” shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and rubber flaps... | |
Documents | English operation manual, Spare parts list, and all necessary export docs. | |
Optional equipment | 1, Stainless steel tank, Aluminum alloy tank 2, Wider platform and Fire Cannon 3, Electricity controlled separately sprinkler 4, Spreading salt water Snow-melting agent | |
DIMENSIONS
