Original Qingling GIGA cabinet
Original Qingling GIGA cabinet with comfortable driving feeling
Body application
SPECIFICATIONS
Manufacturer | Qingling Trucks | |

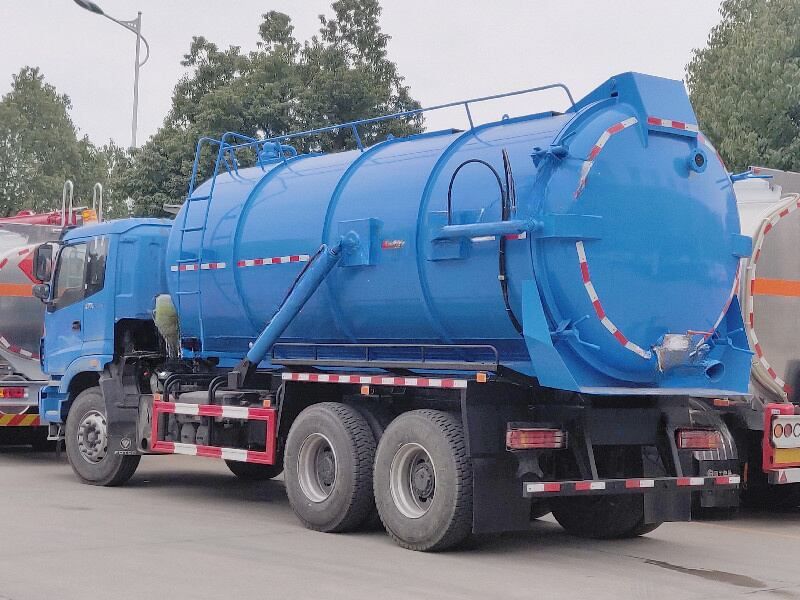

Item | Qingling GIGA Cesspit Emptier | |
Brand | Qingling | |
Model | PT24XW | |
Production Time | 35 days | |
Truck Chassis | ||
Specification | Overall dimensions | 9600*2500*3300 mm |
Gross weight | 33,000 kg | |
Kerb weight | 14,500 kg | |
Wheelbase | 4,565+1370 mm | |
Driving type | 6*4 | |
Chassis model | Qingling GIGA Heavy-duty | |
Tire size | 315/80R22.5 | |
Passengers in cab | 3 | |
Engine | Engine model | 6WG1-TCG51 |
Type of fuel | Diesel | |
Power | 460 HP | |
Gearbox | FAST 12-shift gearbox | |
Upper Structure | ||
Water Tanker performance | Tank Capacity | 24,000L |
Tank Material | 6mm carbon steel with antiseptic treatment | |
Vacuum Pump | Original Chinese famous brand | |
Combined double pump WEILONG 68/7000 | ||
Suction Time | 250 s | |
Tank lifting angle | ≥45° | |
Self-suction height | 7 m | |
Suction hose | 7m length with DN 100 mm | |
Rear cover | Hydraulic control | |
Control Panel | English | |
Discharging system | Gravity discharge or pump out from tank body. | |
Painting | Two primers, and one final paint coating | |
Color & LOGO | According to wish | |
Factory standard | “U” shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and rubber flaps... | |
Documents | English operation manual, Spare parts list, and all necessary export docs. | |
Optional equipment | 1, Stainless steel tank, Aluminum alloy tank 2, Wider platform and Fire Cannon 3, Electricity controlled separately sprinkler 4, Spreading salt water Snow-melting agent | |
DIMENSIONS
