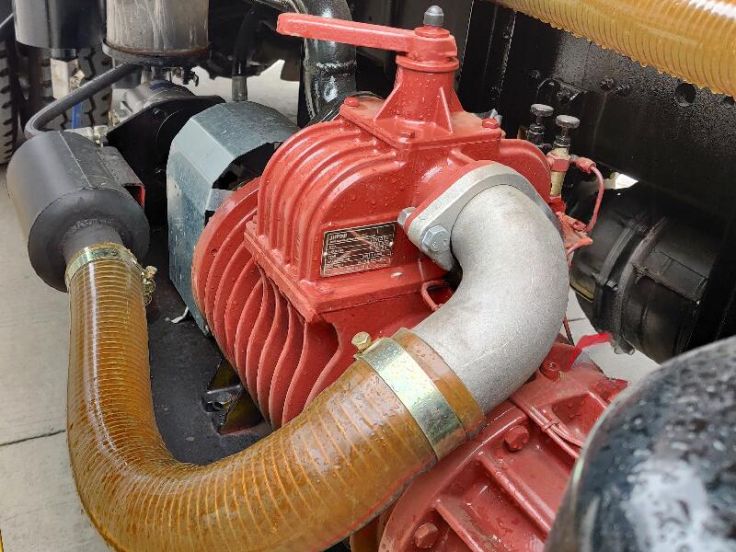

Original ltaly JUROP vacuum pump
Original Italy JUROP vacuum pump, durable and good performance
Body application
SPECIFICATIONS
Manufacturer | Qingling Trucks | |

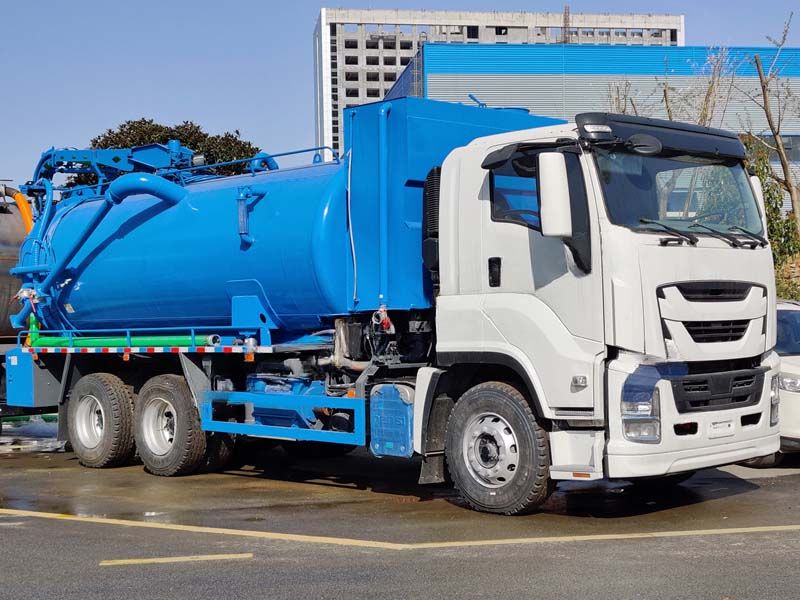

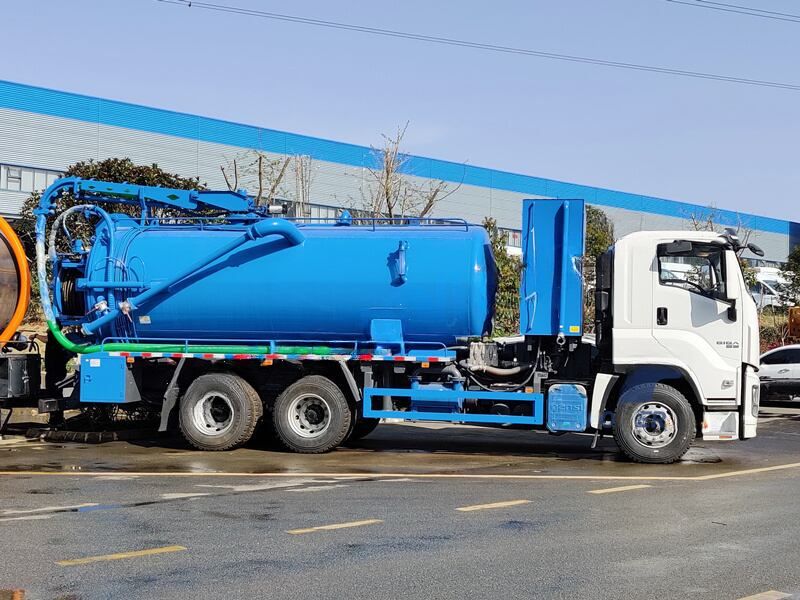

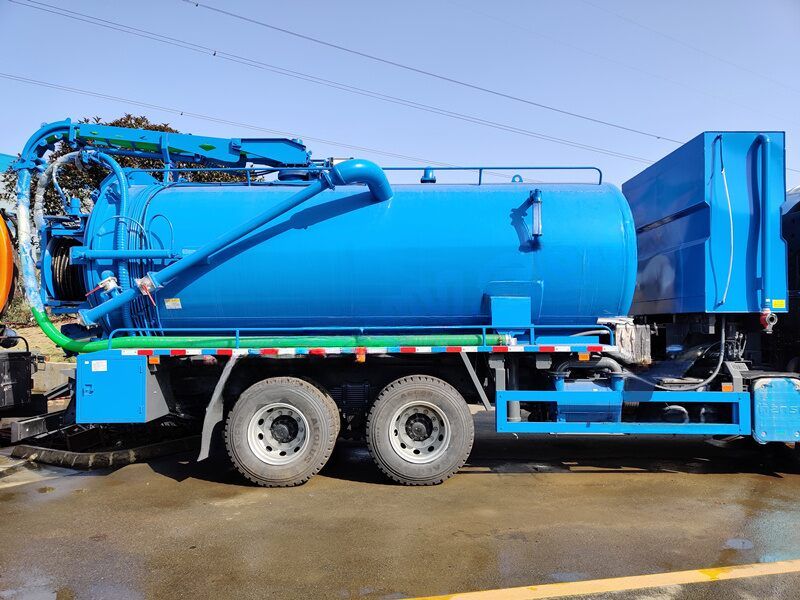

Item | Qingling GIGA Septic Vacuum Pump Jetting Tanker Truck | |
Brand | Qingling | |
Model | PT20QW | |
Production Time | 30 days | |
Truck Chassis | ||
Specification | Overall dimensions | 9100*2500*3200 mm |
Gross weight | 25,000 kg | |
Kerb weight | 12,500 kg | |
Wheelbase | 4,565+1370 mm | |
Driving type | 6*4 | |

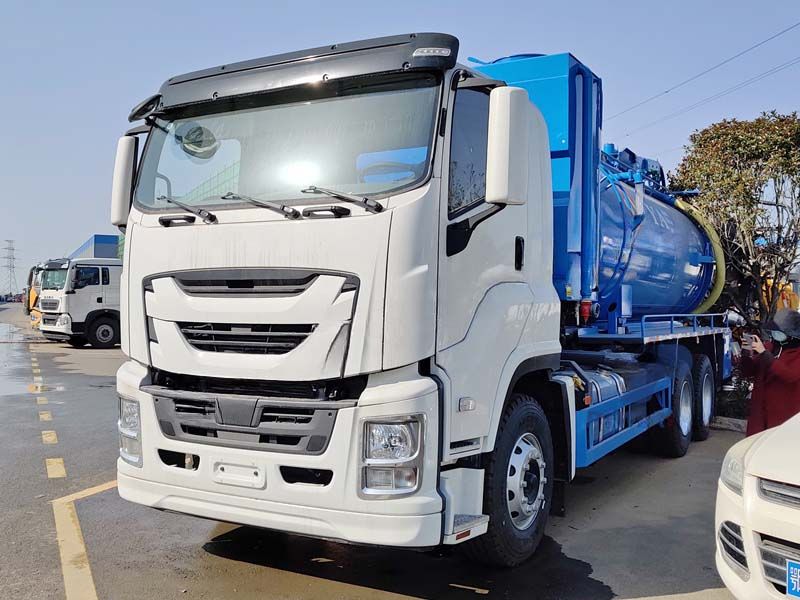

Chassis model | Qingling GIGA Heavy-duty | |
Tire size | 315/80R22.5 | |
Passengers in cab | 3 | |
Engine | Engine model | 6WG1-TCG52 |
Type of fuel | Diesel | |
Power | 420HP | |
Gearbox | FAST 12-shift gearbox | |
Upper Structure | ||

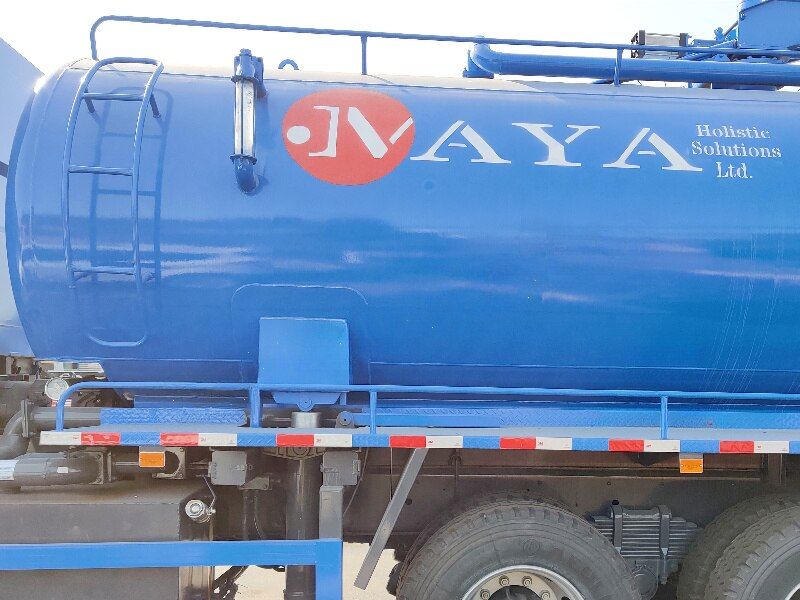

Vacuum Tanker performance | Tank Capacity | 16,000L |
Tank Material | 6mm carbon steel with antiseptic treatment | |
Vacuum Pump | Original Italy Import famous JUROP brand | |
Suction Time | 250 s | |
Tank lifting angle | ≥45° | |
Self-suction height | 7 m | |
Suction hose | 7m length with DN 100 mm | |
Rear cover | Hydraulic control | |

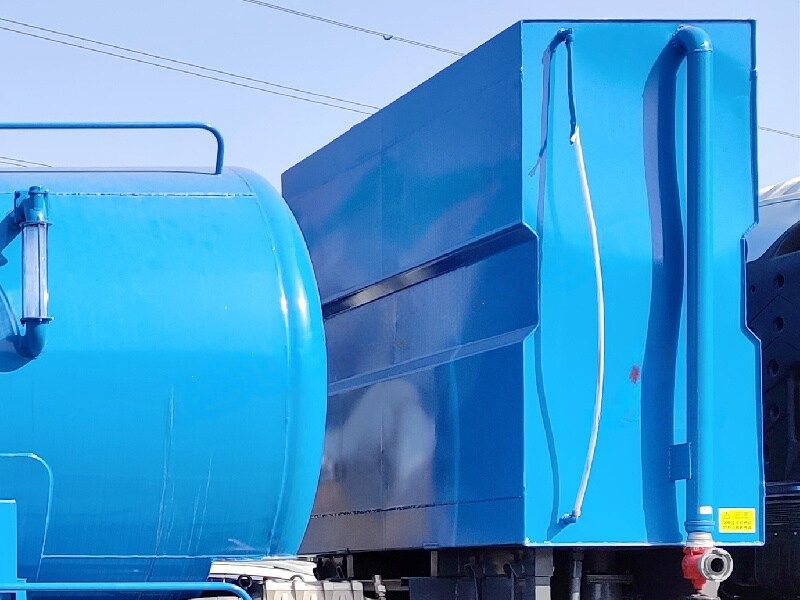

Water Tanker performance | Tank Capacity | 4,000L |
Tank Material | 4mm carbon steel with antiseptic treatment | |

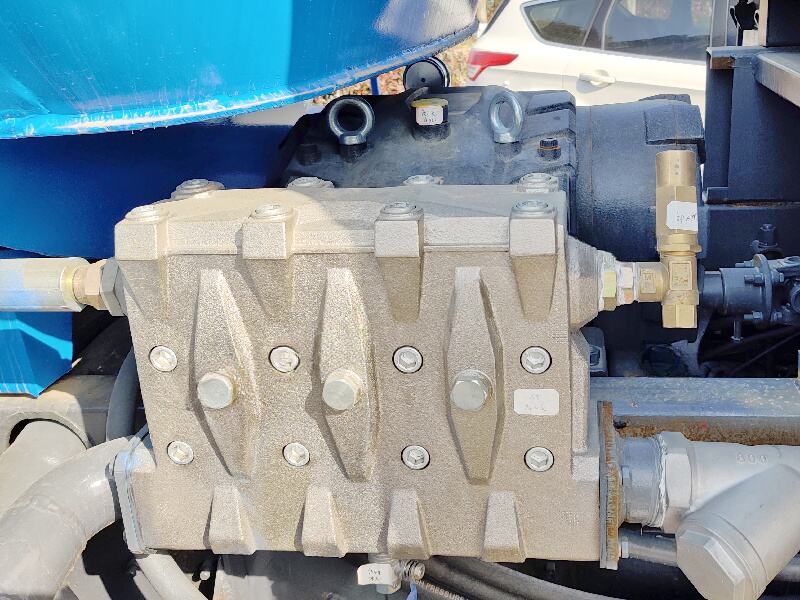

High Pressure Water Pump | Original Germany Import famous PINFL brand | |

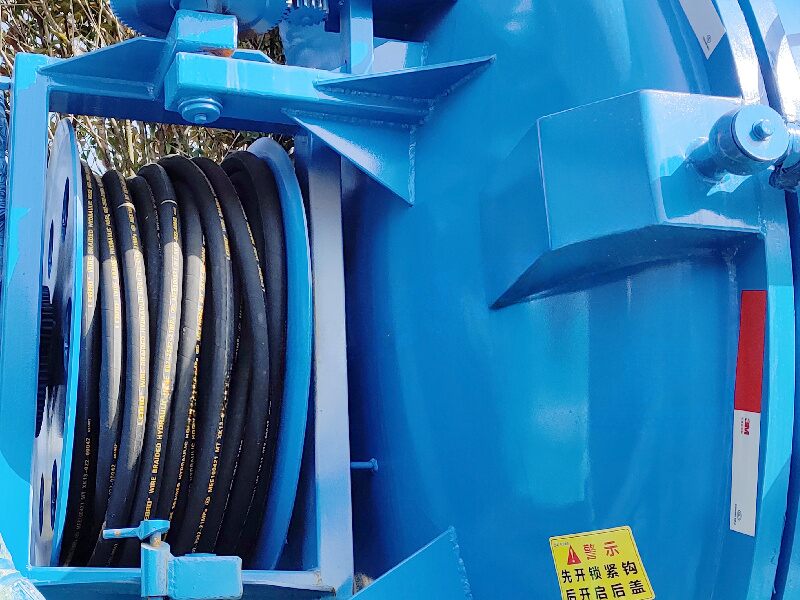

High Pressure Pipe | 60m high pressure water pipeline with diameter φ19 | |
Jetting Nozzle | Standard 10 units with different models | |
Control Panel | English | |
Discharging system | Gravity discharge or pump out from tank body. | |
Painting | Two primers, and one final paint coating | |
Color & LOGO | According to wish | |
Factory standard | “U” shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and rubber flaps... | |
Documents | English operation manual, Spare parts list, and all necessary export docs. | |
Optional equipment | 1, Stainless steel tank, Aluminum alloy tank 2, Wider platform for Pipeline Storage 3, Wireless Electricity controller optional | |
