ltaly genuine coupling
Italy genuine ,Advanced coupling system with PTO
Body application
SPECIFICATIONS
Manufacturer | Qingling Trucks | |
Item | QINGLING FTR Septic tanker truck | |
Brand | QINGLING | |
Model | PT10XW | |
Production Time | 25 days | |
Truck Chassis | ||
Specification | Overall dimensions | 8800*2500*3260 mm |
Gross weight | 16,000 kg | |
Kerb weight | 8,800 kg | |
Wheelbase | 5,000 mm | |
Driving type | 4*2 | |
Chassis model | QINGLING FTR | |
Tire size | 295/80R22.5 | |
Passengers in cab | 3 | |
Engine | Engine model | 4HK1-TC60 |
Type of fuel | Diesel | |
Power | 205 HP | |
Gearbox | MLD 6-shift gearbox | |
Upper Structure | ||
Water Tanker performance | Tank Capacity | 10,000L |
Tank Material | 5mm carbon steel with antiseptic treatment | |

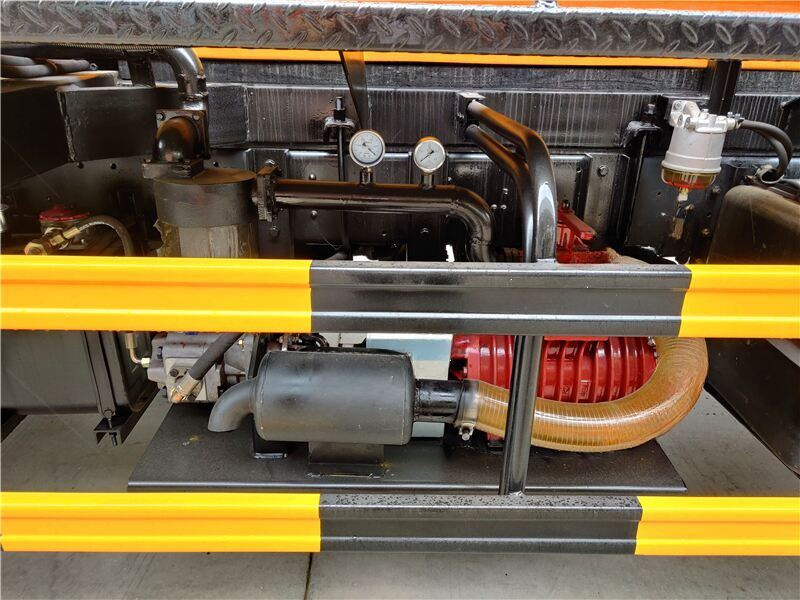

Vacuum Pump | China Famous Brand 50m3/h | |
Optional Italy, Euro brand | ||
Suction Time | 250 s | |
Tank lifting angle | ≥45° | |
Self-suction height | 7 m | |
Suction hose | 7m length with DN 100 mm | |

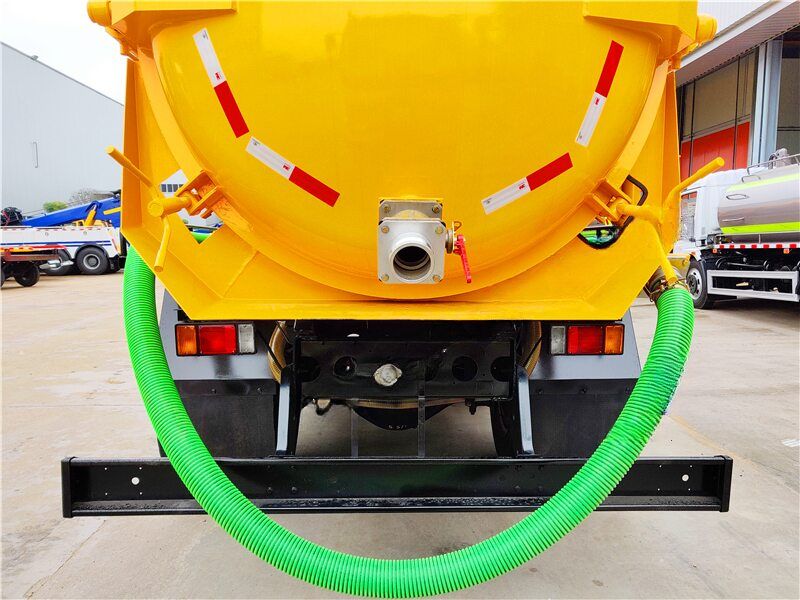

Rear cover | Hydraulic control | |
Control Panel | English | |
Discharging system | Gravity discharge or pump out from tank body. | |
Painting | Two primers, and one final paint coating | |
Color & LOGO | According to wish | |
Factory standard | “U” shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and rubber flaps... | |
Documents | English operation manual, Spare parts list, and all necessary export docs. | |
Optional equipment | 1, Stainless steel tank, Aluminum alloy tank 2, Wider platform and Fire Cannon 3, Electricity controlled separately sprinkler 4, Spreading salt water Snow-melting agent | |
