the lsuzu septic tanker truck manufactured is as below.
1.Tank can be lifted hydrauically to 40 to 45 degree.Rear door can be opened&closed hydraulically. With ful opening design, discharge can be very
quick&complete
2.0verfll system with music horn is equipped to prevent the vacuum pump damage from sewage water into vacuum pump when the tank is full
3.Super power of vacuum pump, seamless die casted sheel cover, designing for container with high ability of pressure-resistance, double hydraulic
jack system,morestrength then cesspit emptier.
Body application
SPECIFICATIONS
| Product Specification | ||
| Isuzu Vacuum Pump Tanker trucks Specification | ||
| Product name | 10cbm sewage suction truck | |
| Overall dimension(LxWxH)(mm) | 7500x2500x3750 | |
| Chassis model | ISUZU NPR | |
| Chassis brand | ISUZU | |
| Cabin | Flat cabin with A/C.LHD | |
| Drive type | 4x2 | |
| Fuel type of engine | Diesel | |
| Engine | Model | 4HK1-TC |
| Maximum power | 1 39kw/190hp | |
| Emission standard | Euro 5 | |
| Gear box | Type | ISUZU MLD |
| Axle | Front | 57 |
| Rear | 6T | |
| Tyres | Model | 8.25R20 |
| Quantity | 6+1 spare tire | |
| Upper Body Specification | ||
| Vacuum tank | Tank capacity(L) | 10000 |
| Tank design | Cylindrical shape | |
| Tank material | Carbon steel0235.6mm thickness | |
| Inlet valve | 2 units | |
| Outlet valve | 2 unit | |

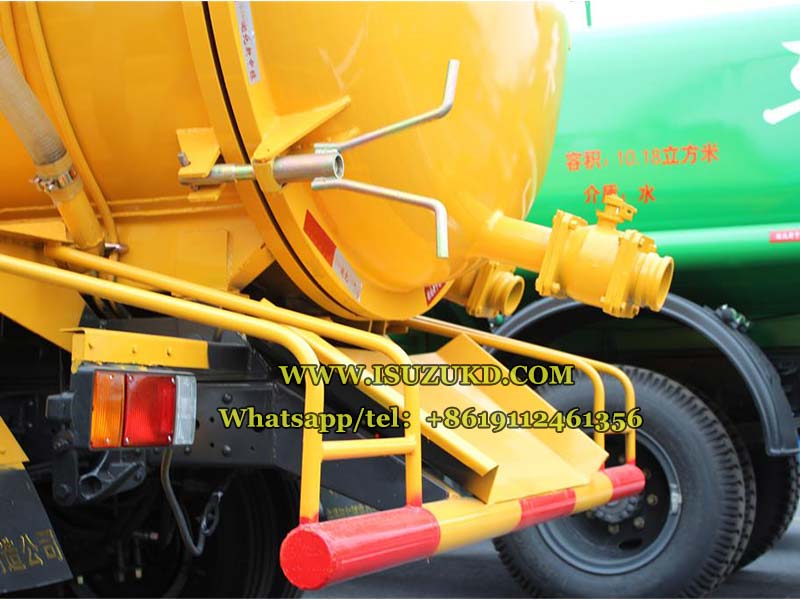

| Open type of rear cover | Full open, 4 units locking devices | |
| Working pressure | Full vacuum | |
| Safety protection | 1.Physical overflow protection.2.Secondaryphysical floating ball overflow valve alarm system | |
| Vacuum pump | Brand/Model | ltaly BP brand/MEC13500 |
| Air flow(free air) | 13500L/min | |
| Pression Max. absolue(relative) | 2.5(1.5) Bar | |
| Depressione senza valvola regolazione vuoto installata Vacuum without depression valve fitted | ’-0.95Bar | |
| Depressione con valvola regolazione vuoto installata Vacuum withdepression valve ftted | ‘-0.8Bar | |
| Ass. potenza a vuoto maxpower absorption per max vacuum | 24Kw | |
| Power absorption at 25 bar absolute. 1000 rpm | 36kw | |
| Max.rpm/tours maximum | 1 400rpm | |
| Hydraulic system | Lifting the vacuum tank body to 35 degree | |
| Open and closed the rear cover of the vacuum tank | ||
| Loading system | Pressure system | Negative pressure loading |
| Discharge system | Pressure system | Positive pressure unloading |
| Suction hose | Flexible suction Hoses in length not less than 7 meters | |
| Others | With dung window, hand washing device, oil and water separator, vacuum pressure gauge, overflow valve | |
