Engine type:
Isuzu 4KH1
Body application
SPECIFICATIONS

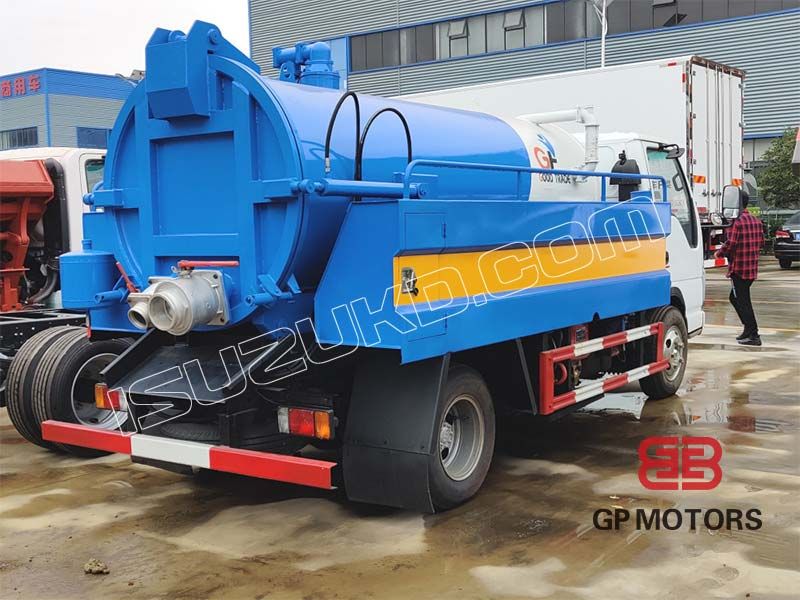

| Truck model | ISUZU sewage suction truck | |
| Model | ||
| Vehicle size | (mm) | 6800×2000×2350 |
| A/D angle | 20/16 | |
| F/R hang | (mm) | 1015/1525 |
| Total mass | (Kg) | 6495 |
| Rated mass | (Kg) | 4000 |
| Curb weight | (Kg) | 2050 |
| Max speed | (km/h) | 98 |
| Axles | 2 | |
| Wheelbase | 3815 | |
| Wheel loading | 1805/2690 | |
| Steel spring NO | 3/3+2 | |
| Tyre NO | 6 | |
| Tyre size | 7.00R16 8PR | |
| Front tread | 1504 | |
| Rear tread | 1525 | |
| Engine | Model | Euro 4 engine |
| Power | 96 | |
| Horse power | 130HP | |
| TANKER | Sewage tanker | 2000gallons |
| I SUZU jetting sewage truck | Oily water separator, air water separator, special vacuum excrement suction pump, pressure volume gauge, pipeline system, the sucking tube, flow valve, vacuum tank, a communicating device (as the dung window), automatic anti-overflow valve these parts | |
| More tanker equipment | ||
| I SUZU jetting sewage truck | Vane rotor pump with 4-way-value | |
| Vacuum pump | ||
| Suction tube diameter | 108mm | |
| High pressure water pump | Bentian brand | |
| assembly | Oil-water separator, | |
| gas-water separator, | ||
| Hydraulic self-unloading device, | ||
| Special vacuum suction pump, | ||
| Pressure volume table, | ||
| Pipe network system, | ||
| Aspiration catheter, | ||
| Gravity valve, | ||
| Vacuum tank,Connector ( depending on the dung window ), | ||
| automatic anti-overflow valve, | ||
DIMENSIONS
