product description

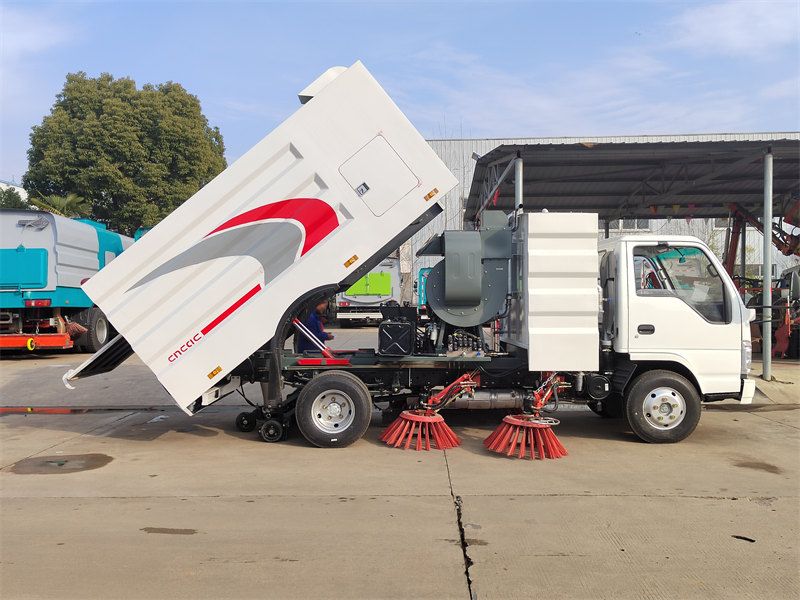

The road sweeper is divided into two pans. a clean water tank and a dust tank. The clean water tank is responsilble for reducing dust on the road, and then thesweeper moves allthe gabage to the midle of the vehicle. The rear dustbin body is connected to a high-power suction cup, which can pick up all kinds ofgarbage from the road. The street sweeper comes with its own auxliary engine unit, which has stable functions and high cleaning eficiency.

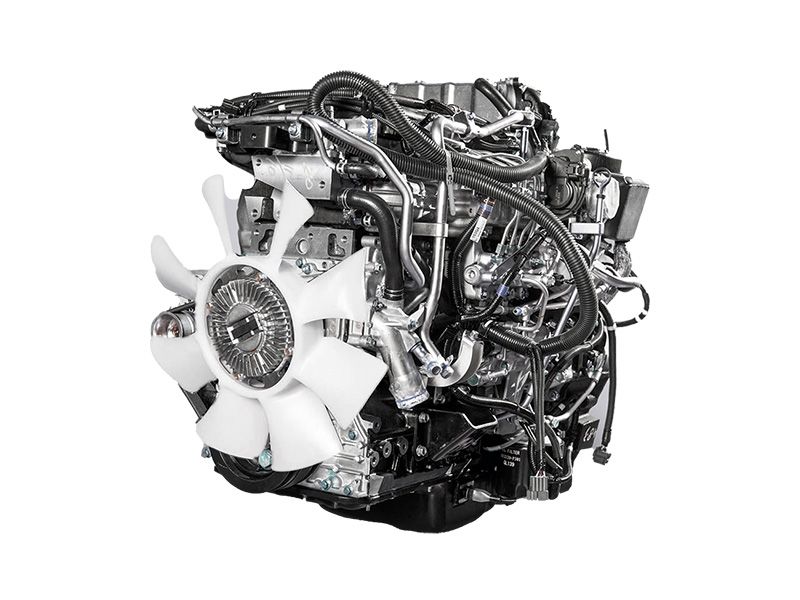

4KH1CN5LS

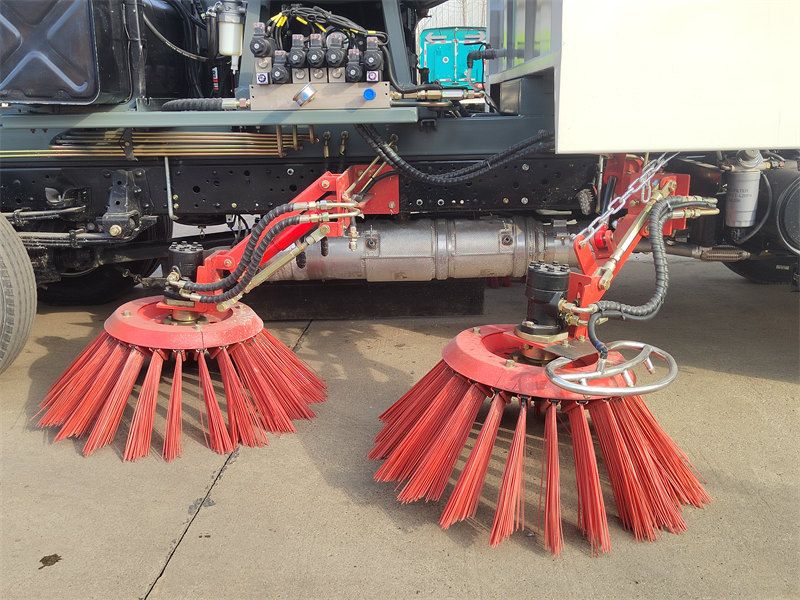

Road Sweeper with water spraying nozzles, driving by USA technology hydraulic motor, durable quality
| Truck name | ISUZU small road sweeper | |
| Wheelbase | 3360mm | |
| Front/rear suspension | 1015/2330 mm | |
| Engine model | Chassis engine | 4KH1CN5LS |
| Auxiliary engine | ISB140 33 | |
| Engine rate | Chassis engine | 72kw, 2999cc, 98hp |
| Auxiliary engine | 103 kW | |
| Max upgrade angle | 30% | |
| Emission standard | Euro 5 | |
| Accelerating outside noise | ≤84dB(A) | |
| Max speed | 95 km/h | |
| Approach angle | 24° | |
| Departure angle | 12° | |
| Weight specifications | Kurb weight | 6400 kg |
| Whole weight | 7300kg | |
| Dimensions | Overall dimension | 6000×2200×2550mm |
| Ground clearance | 250 mm | |
| Sweeping performance | Sweeping speed | 3~20 Km/h |
| Sweeping width | 3 m | |
| Water pressure | 12 MPa | |
| Water pump flow | 115 L/min | |
| Clean and suction performance | Cleaning efficiency | ≥95% |
| Maximum suction particle size | 110 mm | |
| Clean and suction width | 3 m | |
| Max clean capacity | 60000 m2/h | |
| Disc brush size | ≥400 mm | |
| Clean and suction speed | 3-20 km/h | |
| Water Tank | Water tank volume | 4 m³ |
| Dust tank | Dust tank volume | 1 m³ |

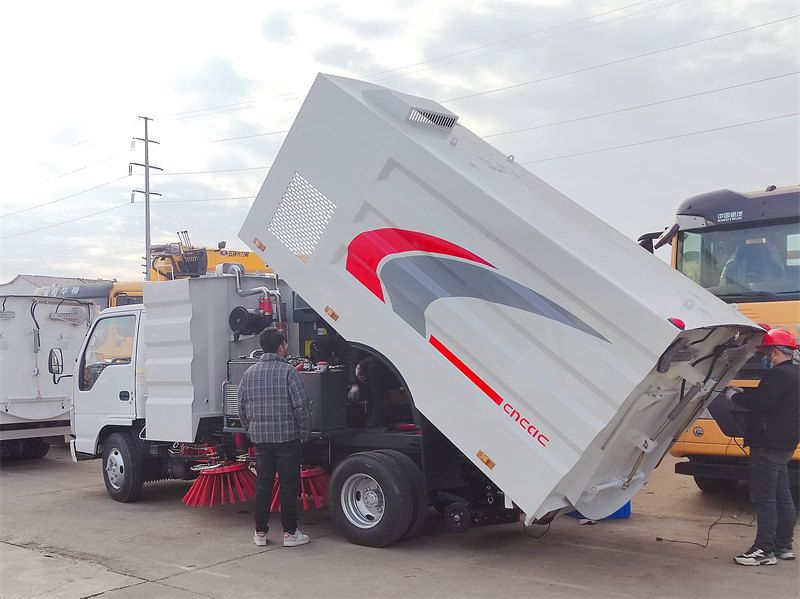

| Dump bin tilting angle | ≥46° | |
| Discharge door opening angle | ≥85° | |
| Hydraulic system | Model | Open, electrical control |
| Major parts | Gear pump, hydraulic motor, hydraulic cylinder, solenoid valve | |
| System pressure | 16 MPa | |
| Oil tank | 60 L | |
| Oil temperature | 60 ˚C | |
| Electrical system | Model | DC24 V |
| Voltage | 24 V | |
| Battery | 24 V | |
| Water spray system | Main parts | Electric diaphragm pumps, water filters, nozzles, etc. |
| Sweeping device | Model | Center 4 brush plates, driven by a hydraulic motor |
| Brush plate diameter | 850 mm | |
| Brush angle | Tilt forward: 4-6 degrees Tilt: 4-7 degrees | |

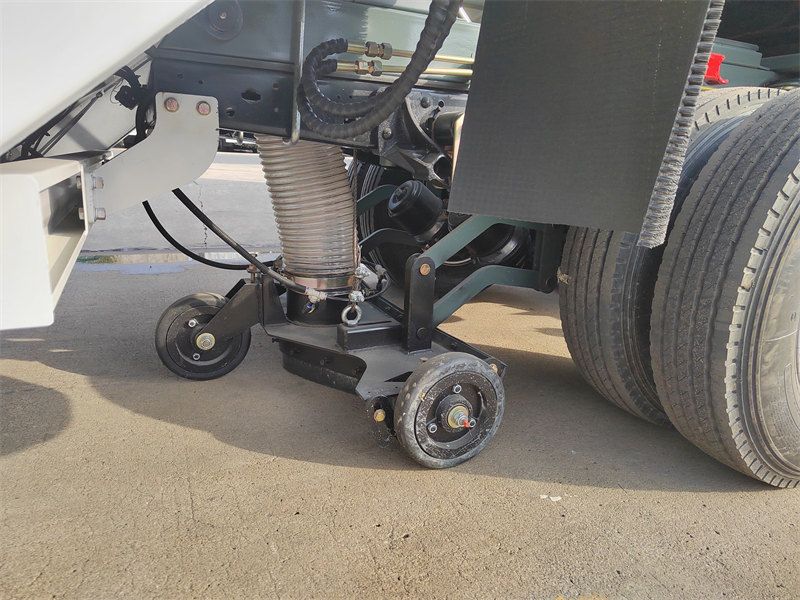

| Sucking plate | Model | Double suction, hydraulic control, spring suspension. |
| Suction plate diameter | 180 mm | |
| Suction plate width | 1800mm | |
| High pressure water system | Model | post pump |
| No:. | Germany PT36 | |
| System pressure | 10 MPa | |
| Speed | 1150 r/min | |
| Water valve model | Hydraulic pressure ball valve. | |
| Water valve pressure | 7 MPa | |
| Spray nozzles model | High pressure washing type | |
| Water filter | Mesh type | |
