product description

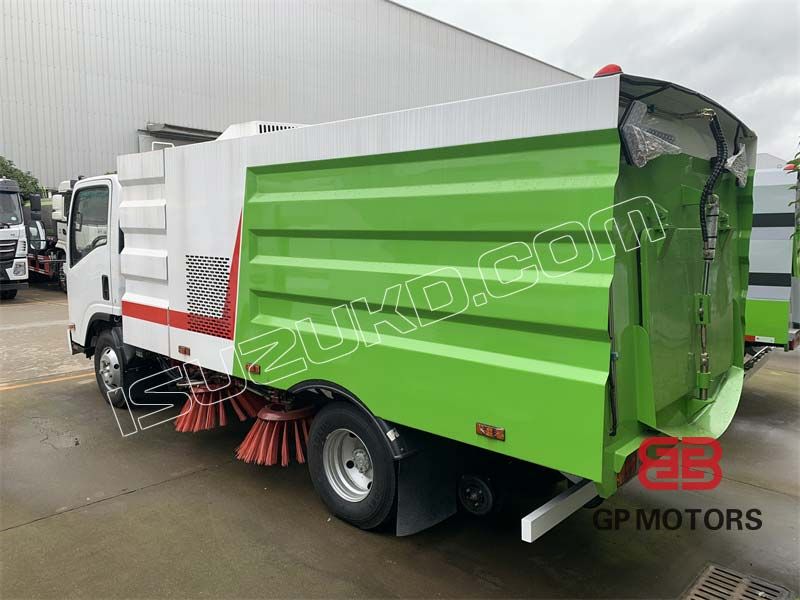

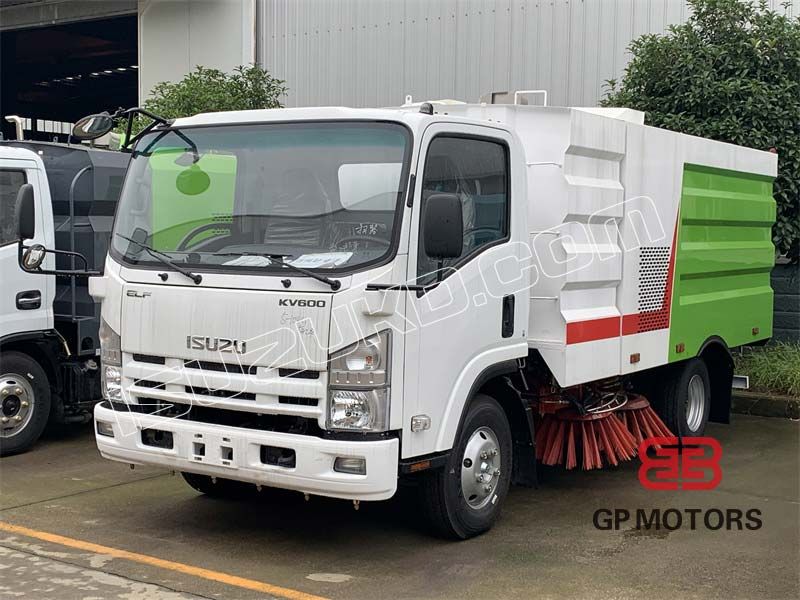

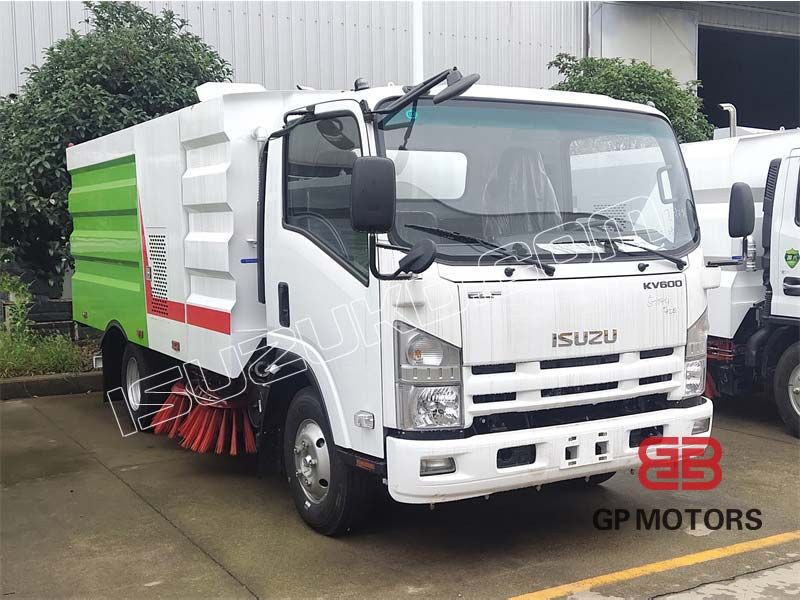

The lsuzu NKR vacuum sweeper truck is a versatile and efficient cleaning vehicle designed forthorough and effective street and road cleaning. With a maximum length of approximately 6 metersthis truck is compact yet powerful, ensuring maneuverability in urban areas while still deliveringexcellent sweeping performance.

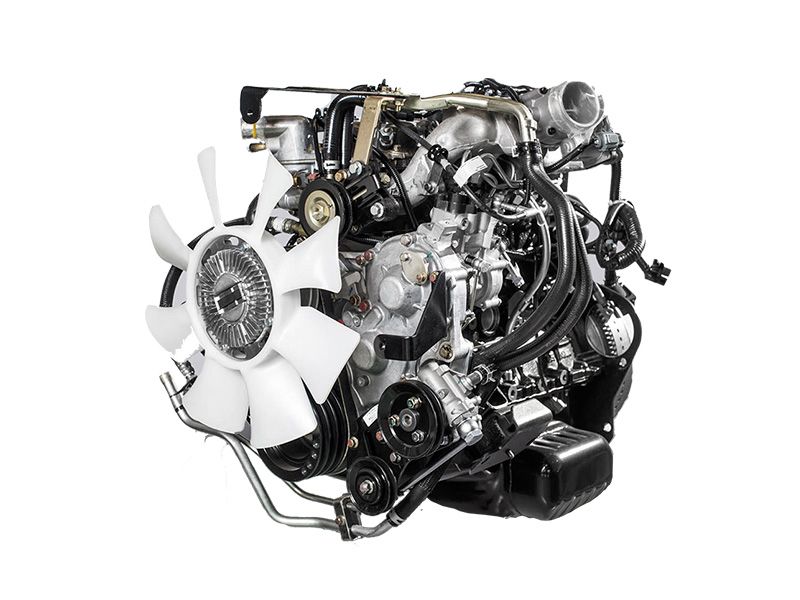

4KH1CN5LS engine, no overhaul within 100,000 km

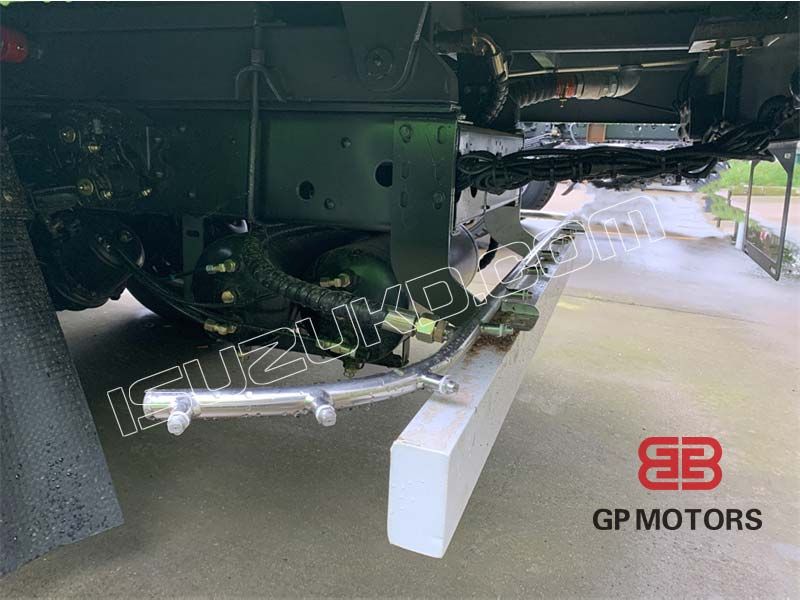

Road Sweeper with water spraying nozzles, driving by USA technology hydraulic motor, durable quality
| TECHNICAL SPECIFICATION | ||||||
| Main specification | Chassis brand | ISUZU | ||||
| Chassis model | ||||||
| Overall dimension(L*W*H) | 7160X2200X2800mm | |||||
| Dust tank | 4m3 | |||||
| Water tank | 1.5m3 | |||||
| Gross weight | 7,300 kg | |||||
| Chassis | Drive modle | 4X2 left hand drive | ||||
| Front axle | 2.5ton loading capacity | |||||
| Rear axle | 4.8ton loading capacity | |||||
| Wheel Base | 3360 mm or 3815mm | |||||
| Front/rear suspension | 1032/2138mm | |||||
| Approach/departure angle | 19/12(°) | |||||
| Tyre size & number | 7.00R16, with one spare tyre | |||||
| Max speed | 90 km/h | |||||
| Engine | Model | 4KH1CN5HS | ||||
| Engine Type | Diesel,Vertical in-line, water-cooled, four stroke, electronically controlled high pressure common rail | |||||
| Horse power | 96kw/130hp | |||||
| Displacement | 3856cc | |||||
| Fuel consumption | 10 L/100km | |||||
| Emission | Euro 5 | |||||
| Sweeper tank | Dust tank | 4m3 | ||||
| Water tank | 1.5m3 | |||||
| Water Tank material | stainless steel | |||||
| Tank thickness | 4-5mm | |||||
| Sweeping brush | 4 set | |||||
| Max cleaning width | 2800mm-3200mm | |||||
| Max cleaning capacity | 60000 m2/H | |||||
| Cleaning degree | ≥95% | |||||
| Max cleaning speed | 3-25 km/h | |||||
| Max diameter of the suction | 120mm | |||||
| Auxiliary engine | JX493 | |||||
| Auxiliary engine horsepower | 57KW/77.5HP | |||||
| Max discharge angle of the dust tank | 45 degree | |||||
| Operation | electronic automatic operation , | |||||
| Chassis：The lsuzu NKR vacuum sweeper truck is built on a sturdy and reliable chassis. ISuZu NKR series is known for its robustness and durability, making it suitable for heavy-duty applications. The chassis provides a strong foundation for the sweeper truck to operate smoothly on various terrains | ||||||

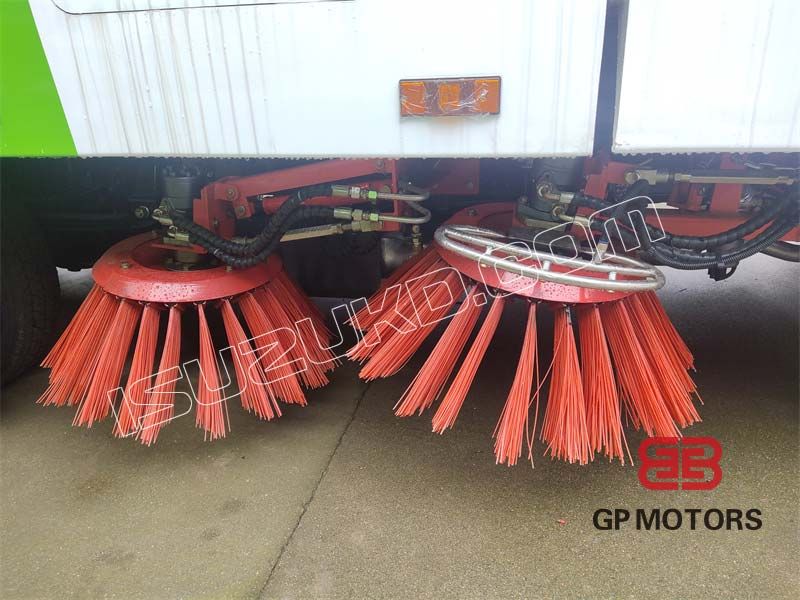

| sweeping mechanism：The sweeber mechanism is the kev component ofthe lsuzu NKR vacuum sweeper truck, it consists of brushes that rotate and sweep debris from the road surface into a colection hopper. The brushes are adjustable to ensure efective sweeping and can be quicky replaced if necessary. | ||||||
| Vacuum system：The vacuum system is responsible for sucking up and colecting fine dust and smal debris that cannot be swept by the brushes. it creates a stong suction force that draws in the waste mateial and deposits itinto the hopper. The vacuum sustem is powered by a hioh-oerommance enoine to enswre efficient operation. | ||||||
| Hopper：The lsuzu NKR vacuum sweeper truck is equiped with a large-capacty hopper for colecting and stoing the swept and vacuumed waste. The hopper is designed to be easly empled, alowing for quick disposal of he colected debrs. The hopper capacily vares depending on the speciic model ofthe sweeper truck. | ||||||
