product description

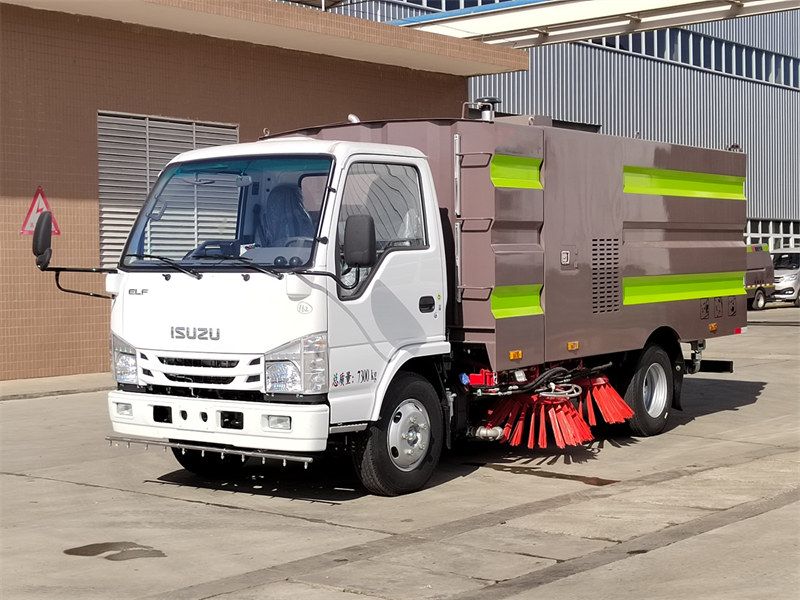

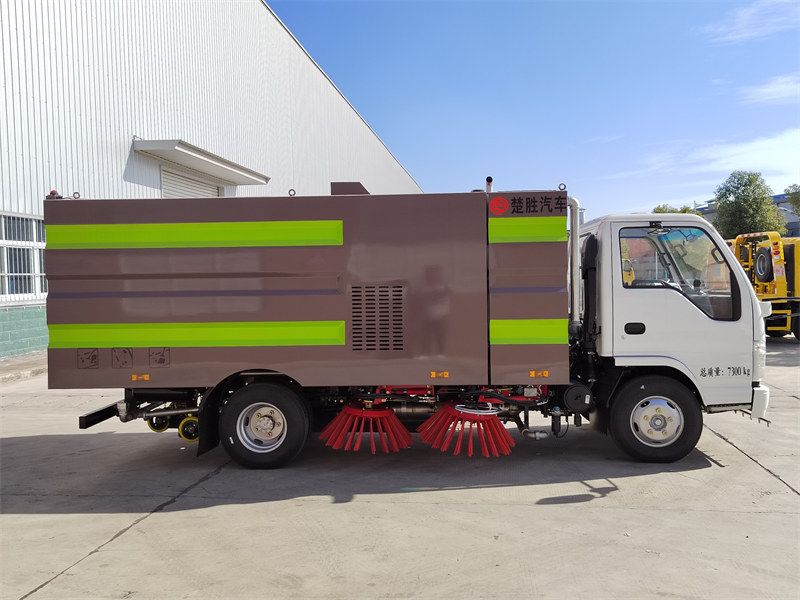

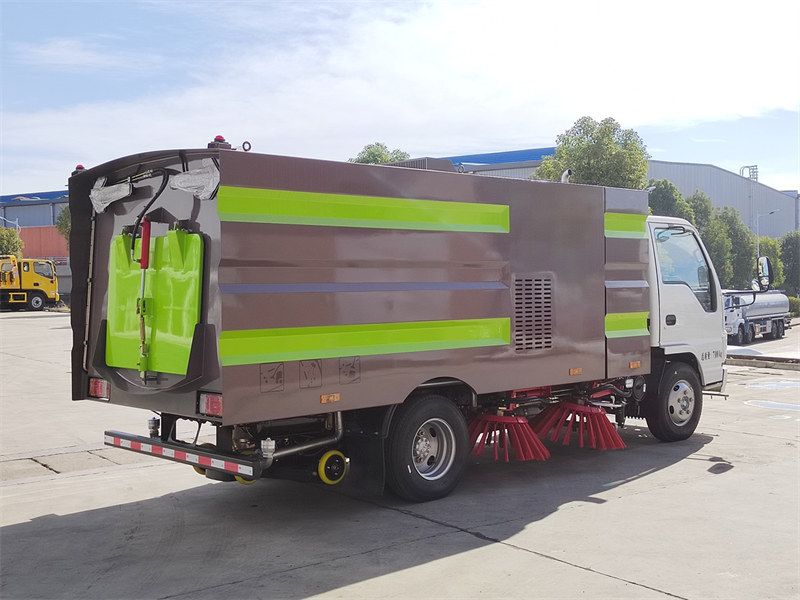

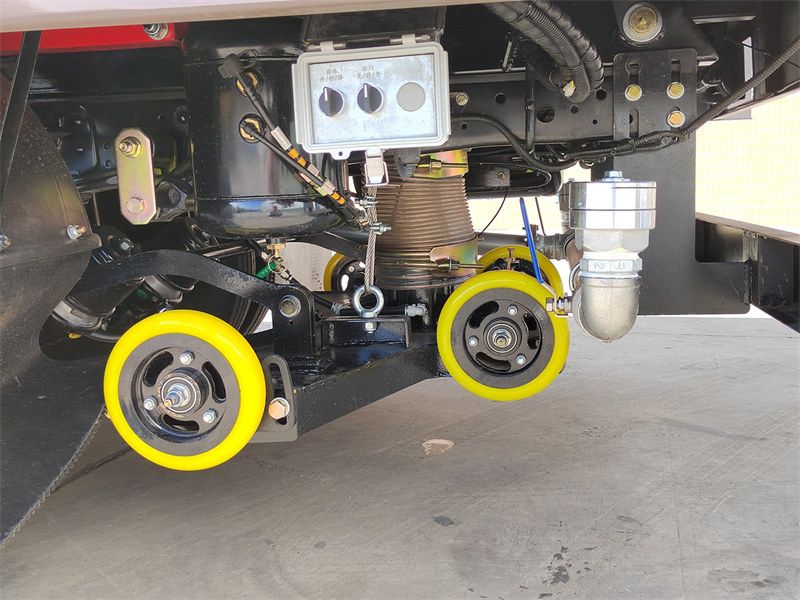

Customized Qingling mini ELF / 100P road truck for hot sale, Qingling 100P 4*2 drive 6 wheeler truck chassis, 4KH1CN5LS engine with 98HP, MSB 5-shift gear box, square-shape sweeper body 4000 Liters dust bin and 1000 Liters clean water bin, Import hydraulic motor with 4 sweeper plate, each side two sets, rear vacuum suction plate with roller, painting and logos as required.

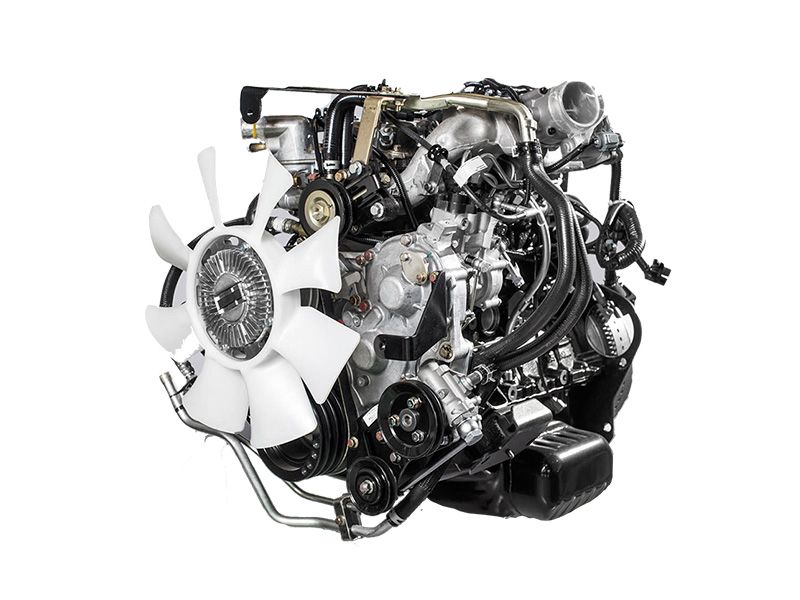

4KH1CN5LS engine, no overhaul within 100,000 km

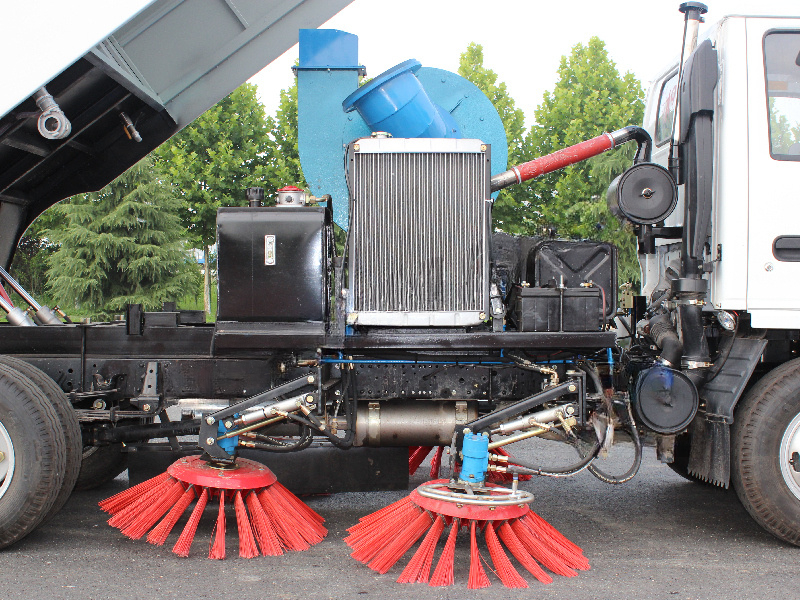

Road Sweeper with water spraying nozzles, driving by USA technology hydraulic motor, durable quality
| Vehicle Description | ||
| Overall dimension | 5900*2200*2440mm | |
| GVW | 7300kg | |
| Curb weight | 5260kg | |
| Chassis brand | ISUZU | |
| Traction type | 4*2, left hand drive | |
| Chassis Description | ||
| Chassis model | QL1070A | |

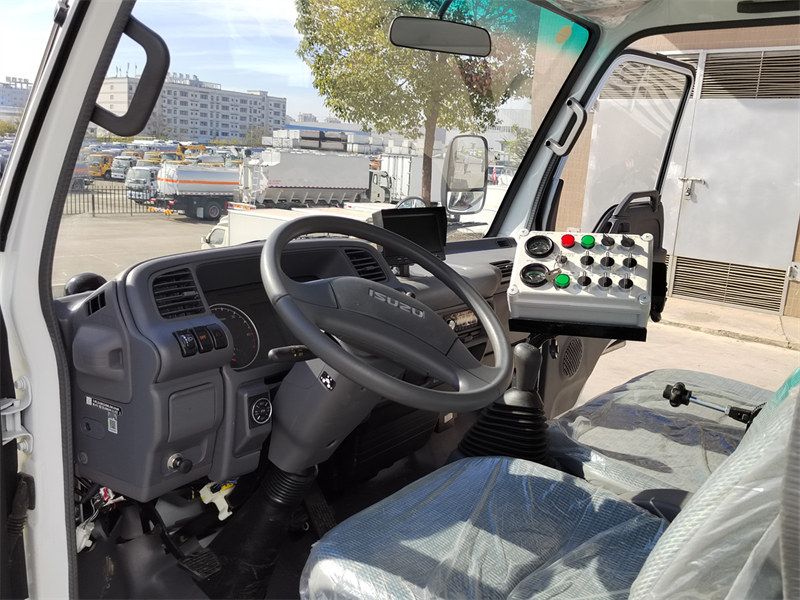

| Cab | Single cabin, two seats with AC | |
| Wheelbase | 3360mm | |
| Tire specification | 7.00R16 | |
| Tire quantity | 6+1 units | |
| Engine | Engine model | 4KH1CN5LS |
| Number of cylinders | 4 | |
| Emission standard | Euro 5 | |
| Displacement | 2999ml | |
| Horse power | 98hp | |
| Gear box | Type | ISUZU, MSB, manual |
| Number of gears | 5 forward gears& 1 reverse | |
| Brake system | Oil brake and vacuum booster pump | |
| Axle | Front | 2.5T |
| Rear | 4.8T | |
| Suspension | Front | Leaf spring |
| Rear | Leaf spring | |
| Fuel tanker | Type | Steel fuel tank, with lockable cap |
| Capacity | 100L | |
| Superstructure description | ||
| Tanker capacity | Water tanker | 3cbm |
| Garbage tanker | 2cbm | |

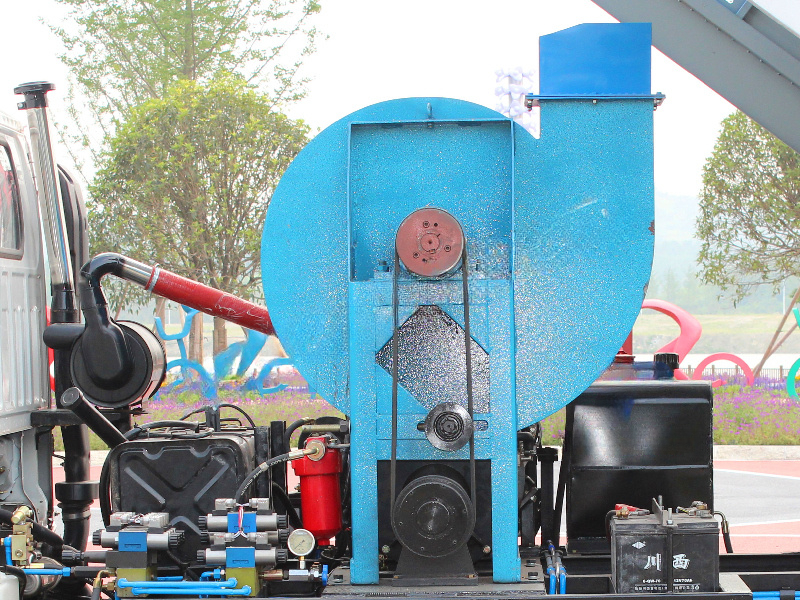

| Standard configuration | Equipped with auxiliary engine, sub-frame and fan. | |
| Equipped with water tanker, garbage tanker. | ||

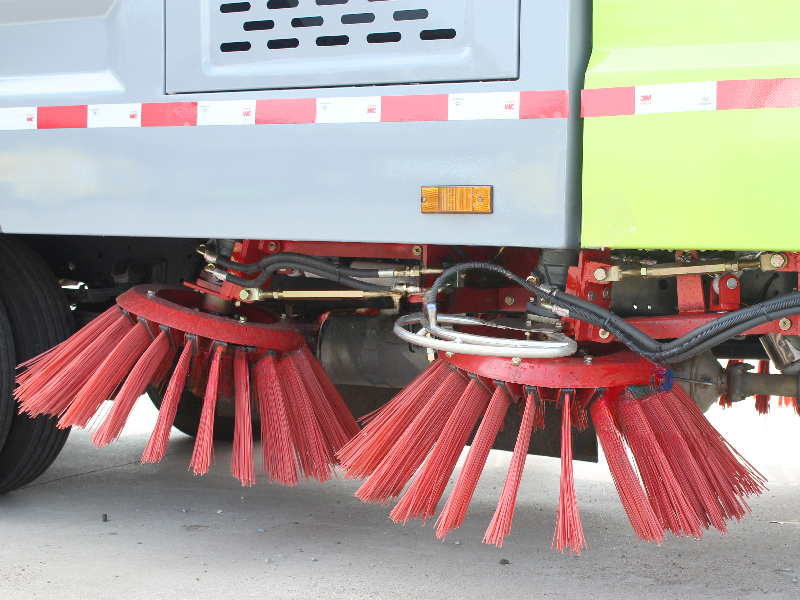

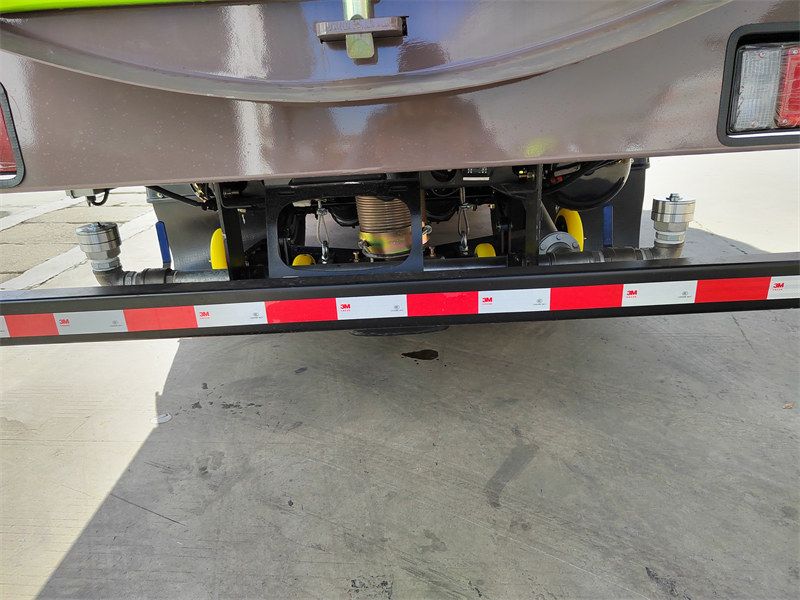

| Equipped with 4 sweeping brushes on each side and suction nozzle on the rear. | ||
| Equipped with dust suppression system. | ||
| Equipped with hydraulic system. | ||

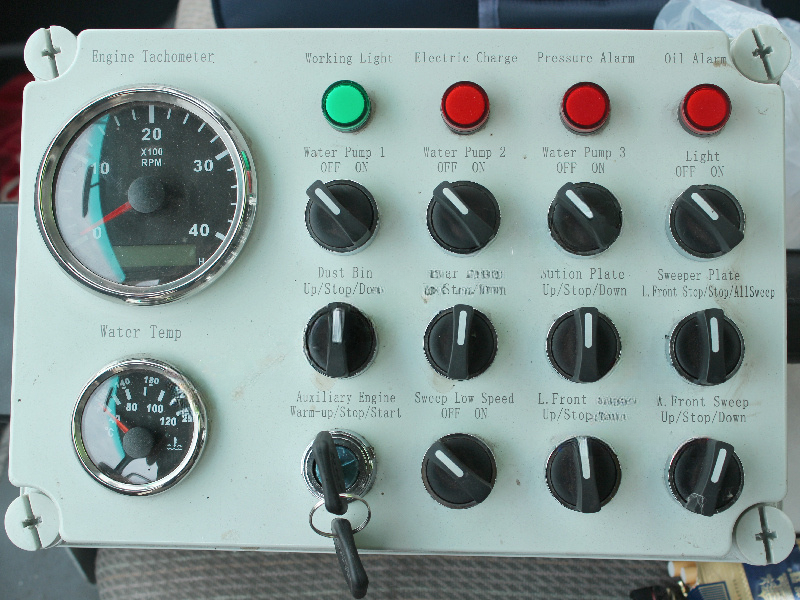

| Equipped with electrical system. | ||
