product description

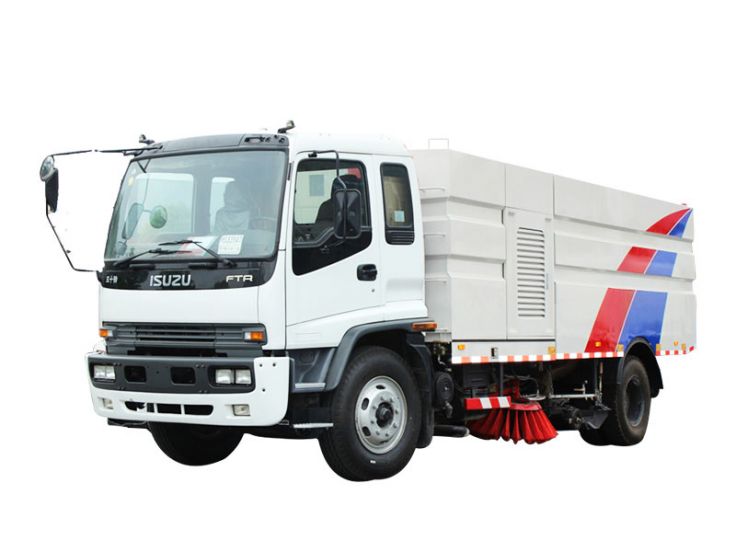

Using our original V-shaped nozzle cleaning technology, it integratesthe functions of the road sweeper and high-pressure cleaning truck. lt can not only perform road sweeping operations or washing operationsindependently but also perorm road scrubbing operations simultaneously. This truck has outstanding features such as no raised dust during operationno dust left after the operation, long operation time, and stable operating performance.
4HK1-TCG40
especially suitable for the cleaning and washing operationsof urban arterial roads.
| Truck Specification | ||
| Cab | ISUZU 600P single row cabin | |
| Driving Type | 4*2 Left hand driving | |
| Max Speed (km/h) | 99 | |
| Overall dimension(mm) | 6900*2200*2670 | |
| GVW( kg) | 10055 | |
| Mass in working order ( kg) | 7180 | |
| Wheelbase(mm) | 3365 | |
| F/R track base (mm) | 1680/1650 | |
| F/R overhang (mm) | 1010/1615 | |
| Approach/Departure Angel | 21/19 | |
| Tire | 8.25-20 (6+1) | |
| Clutch | Single-plate dry diaphragm spring clutch | |
| Steering | Hydraulic steering with power assistance | |
| Gear box | MLD 6-speed gear box | |
| Bridge | Front axle | 4T |
| Rear axle | 7T | |

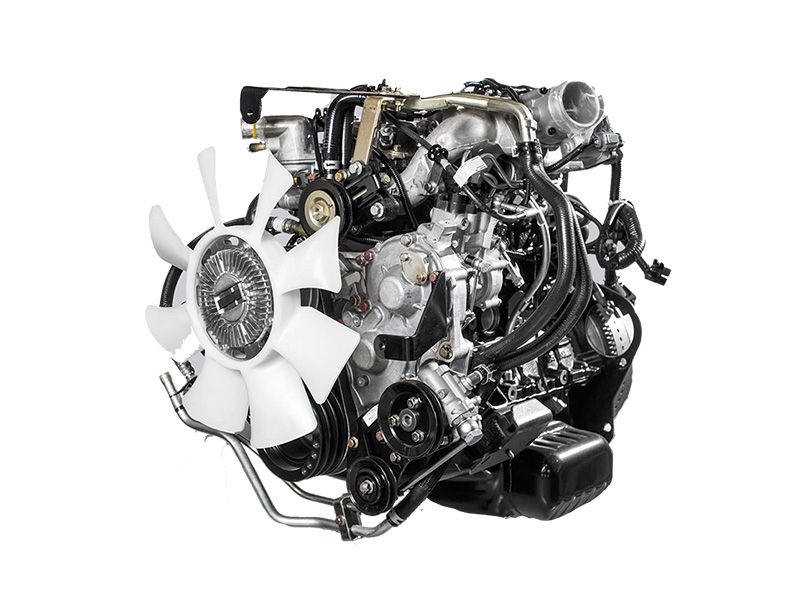

| Enging | Model | 4HK1-TCG40 |
| Fuel Type | Diesel fuel | |
| Type | ISUZU Water-cooled four-stroke,, direct injection, turbocharged | |
| Exhaust(ml) | 5193 | |
| Max output power/rotate speed (hp /rpm ) | 190/2600 | |
| Max torque/rotate speed(N.m/rpm) | 510/1600 | |
| Braking system | Service Brake | Oil brake |
| Park Brake | Spring energy | |
| Auxiliary brake | engine exhaust brake | |
| Eletric system | 24v | |
| Upper-Body specification | ||

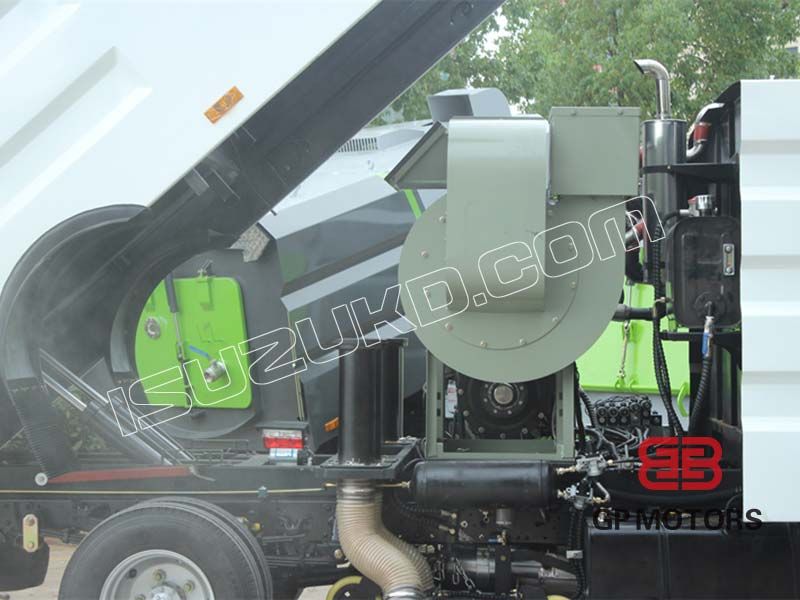

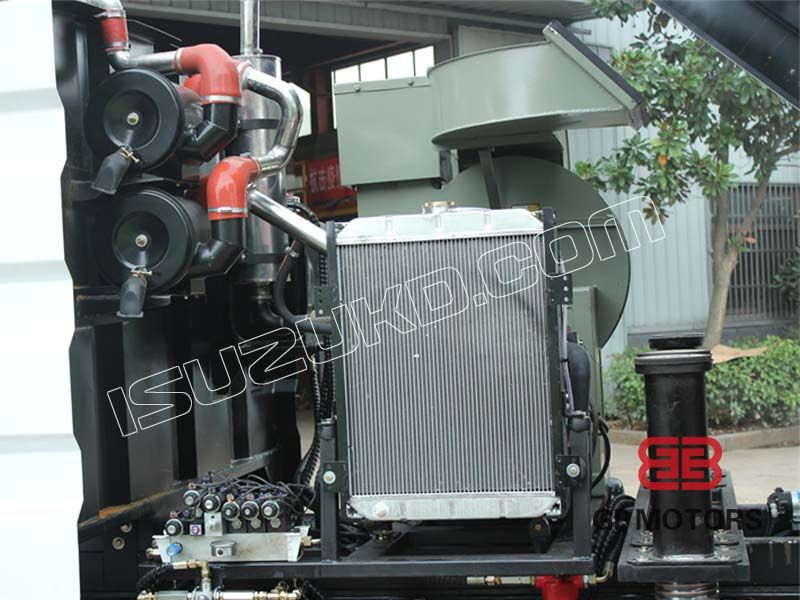

| Vice generator | ||
| Model | B140 cummins engine | |
| Rated power (kw) | 103 | |
| Suction sweep operation | ||
| Cleaning efficiency | ≥95% | |
| The maximum diameter of the suction body(mm) | 120 | |
| Suction sweep width(mm) | 2.8-3.2 | |
| Maximum cleaning capacity (m2/h) | 60000 | |
| Butterfly dish brush overhang dimension(mm) | ≥400 | |
| Working speed (km/h) | 3月20日 | |
| Water tank body | ||
| Rated capacity (m3) | 1.0-1.5 | |

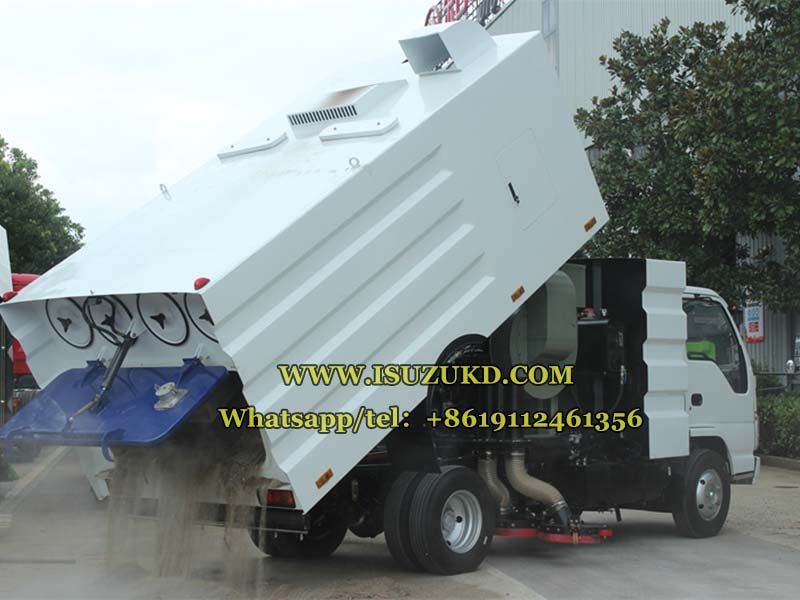

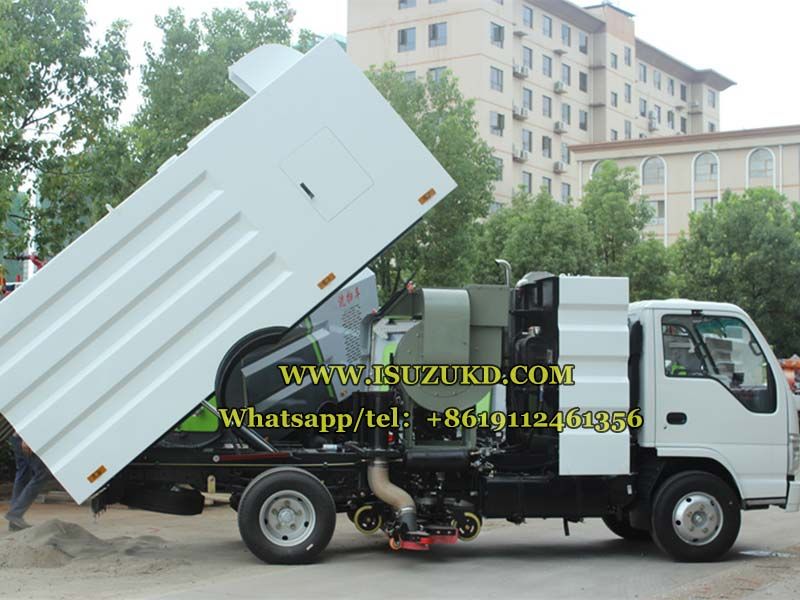

| Garbage tank body | ||
| Rated capacity(m3) | 3.5-4 | |
| Discharge door opening angle | ≥45º | |
| Hydraulic system | ||
| Model | Open, electrical control | |
| The main element | Gear pumps, hydraulic motors, hydraulic cylinders, solenoid valve | |
| Pressure (mpa) | 16 | |
| Hydraulic oil tank capacity (l) | 60 | |
| Hydraulic oil temperature (ºC) | 60 | |
| Electrical system | ||
| Model | DC24V | |
| voltage | 24V | |
| Battery | 24V(2 set 12 v battery series connection ) | |
| Sprinkle system | ||
| The main elements | Electric diaphragm pump, water filters, nozzles, etc. | |
| Sweeper disk device | ||
| Model | Center four sweeper disk, controlled by a hydraulic motor, front right can be independently controlled with avoidance and reset function | |
| Diameter (mm) | 850 | |
| Angel | Forward 4-6º roll 4-7º | |

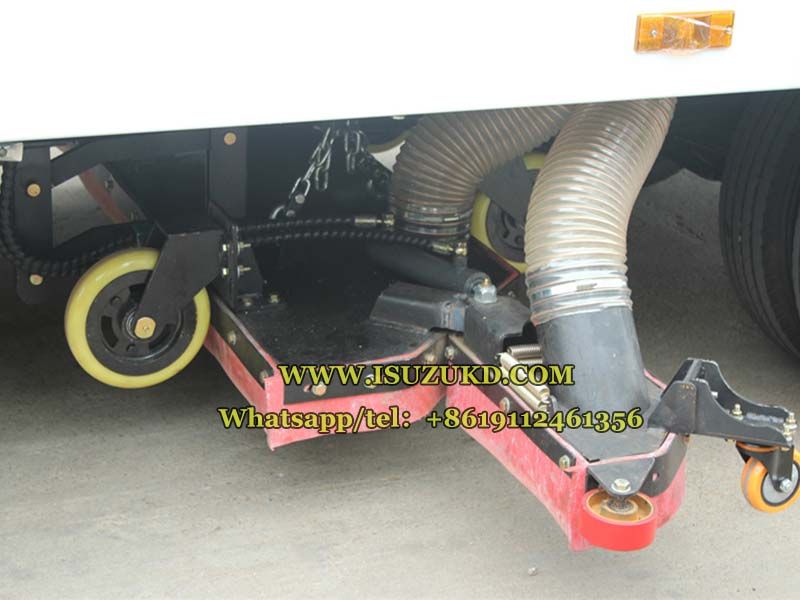

| Sucker device | ||
| Model | Single suction port, hydraulically controlled, spring suspension. | |
| Diameter (mm) | 200 | |
