Product features

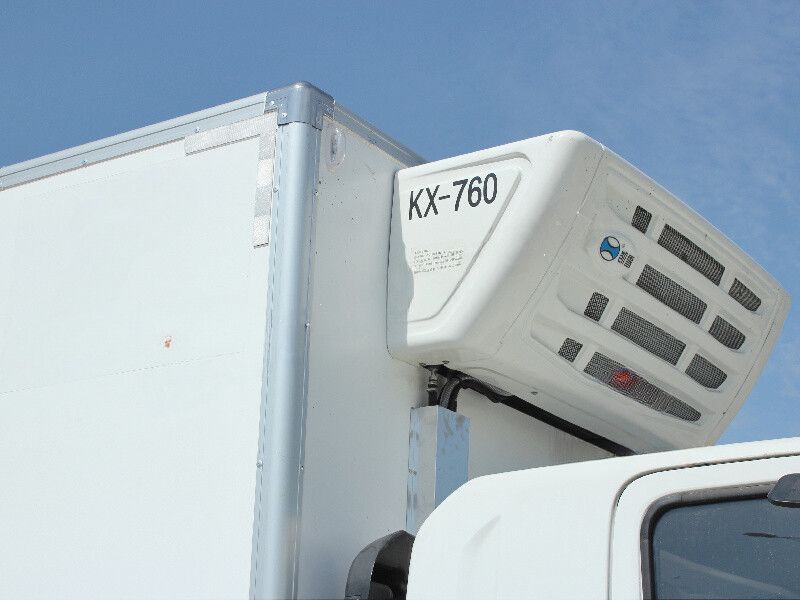

Chinese brand Refrigerated Unit KX-760
Chinese brand Refrigerated Unit KX-760, also optional as CARRIER, THERMOKING, DAKIN, etc
Exuberance shows
Product parameters
Manufacturer | Qingling Trucks | |

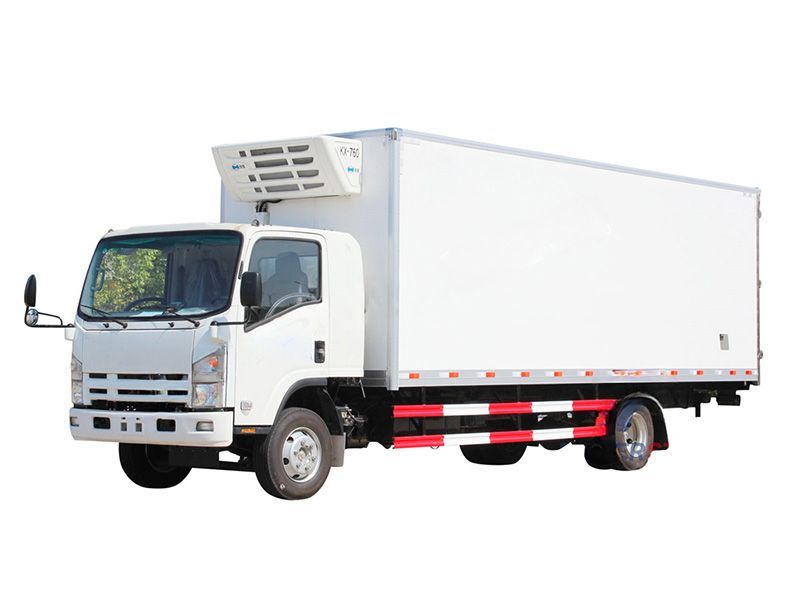

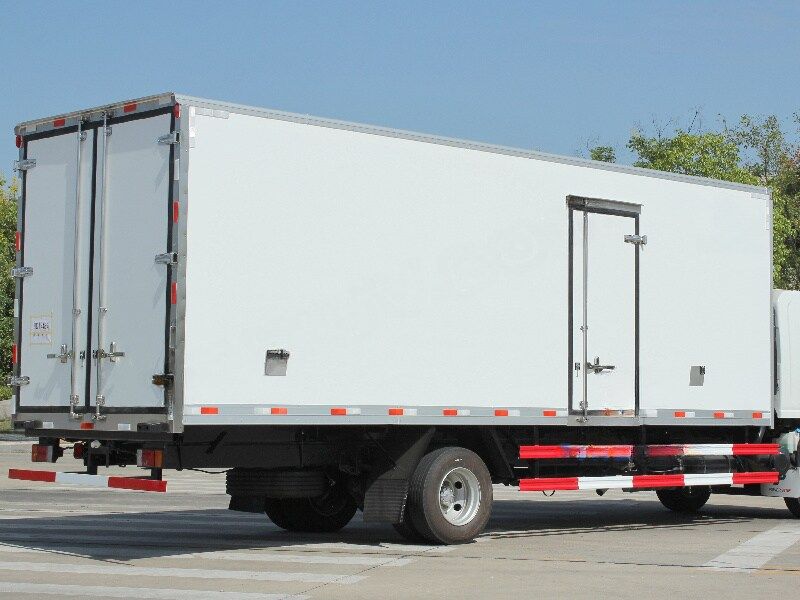

Item | QINGLING ELF Freezer Truck | |
Brand | QINGLINGISUZU | |
Model | PT06XLC | |
Production Time | 25 days | |
Truck Chassis | ||
Specification | Overall dimensions | 8500*2500*3360 mm |
Gross weight | 10,000 kg | |
Kerb weight | 4,500 kg | |
Wheelbase | 4,475 mm | |
Driving type | 4*2 | |
Chassis model | QINGLING ELF Medium-duty | |
Tire size | 235/75R17.5 | |
Passengers in cab | 3 | |
Engine | Engine model | 4HK1-TCG50 |
Type of fuel | Diesel | |
Power | 190 HP | |
Gearbox | MLD 6-shift gearbox | |
Upper Structure | ||
Freezer Body performance | Refrigerator Unit | Chinese Brand KAIXUE KX-760 |
Body Space Temperature | -15 degree~ +20 degree | |
Body Capacity | 6Tons | |
Body Size | 7000x2200x2000 mm | |
Panel Material | FRP + PU Foam + FRP 105mm | |
Panel Structure | All Closed Sandwich | |

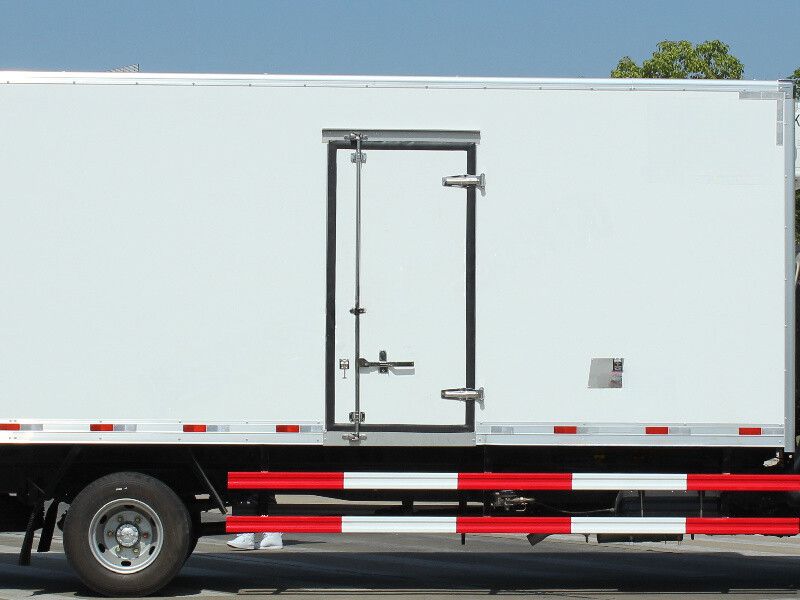

Side Door Type | Single door, on right side wall | |

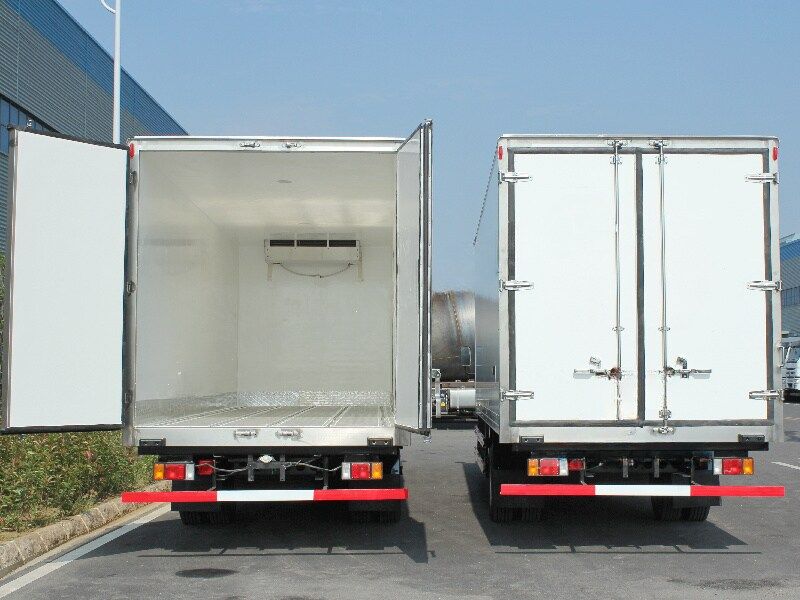

Rear Door Type | Full size double opening rear doors | |

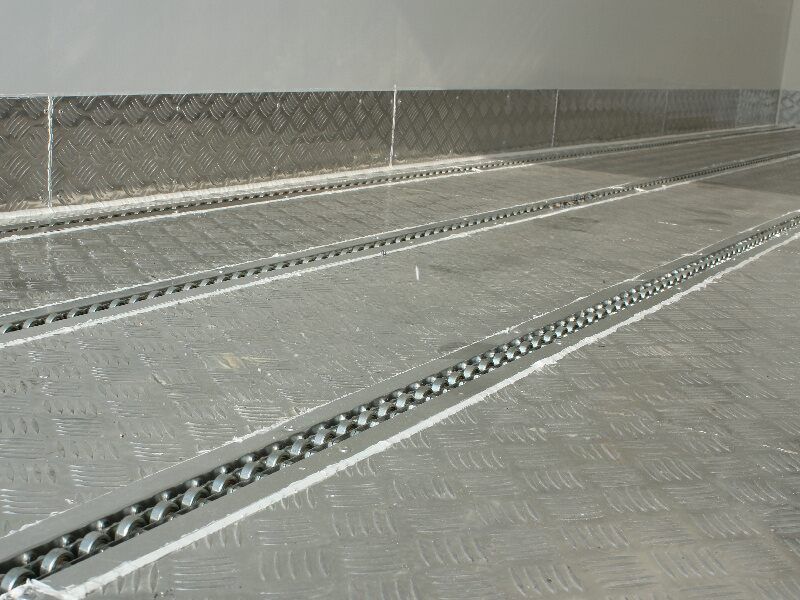

Flooring | Antiskid and abrasion resistant, customized wheel roller for easy operation | |
Marker Light | 2 sets White and 2 sets Red | |
Celling Light | 2 sets of 12/24V LED | |
Painting | Two primers, and one final paint coating | |
Color & LOGO | According to wish | |
Factory standard | “U” shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and rubber flaps... | |
Documents | English operation manual, Spare parts list, and all necessary export docs. | |
Optional equipment | 1, Other Refrigeration Brand: CARRIER, THERMOKING, DAIKIN (Any options) 2, Working camera can be equipped 3, Optional rear lifting platform | |
