N-Series

Home > Products > N-Series

ISUZU NKR55 Cab-Chassis

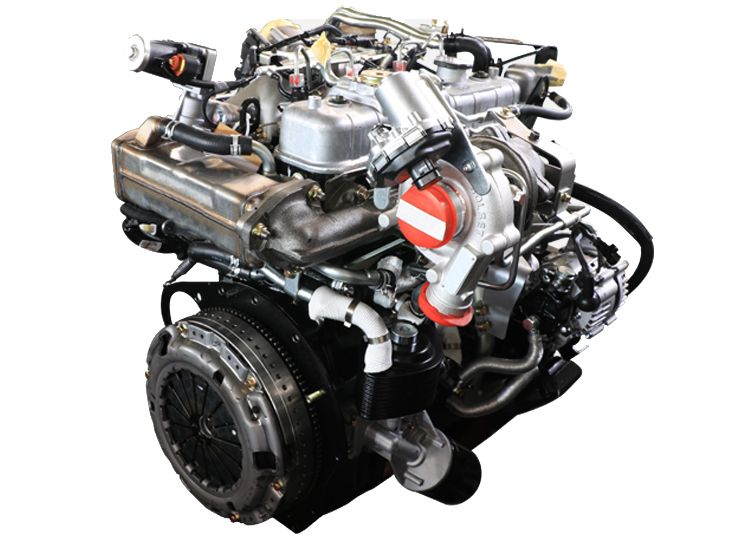

Model: 4JB1

Model: 4JB1

ISUZU 2.8L Diesel Engine


Fewer fuel comsuption

Reliable & Powerfull

Economical & Confortable




ISUZU NKR55 Cab-Chassis
ISUZU NKR55 Cab-Chassis
ISUZU NKR55 Cab-Chassis
ISUZU NKR55 Cab-Chassis
ISUZU NKR55 Cab-Chassis

Body application


To Ask Us Ask For Brochure

SPECIFICATIONS

MODELNKR55-E4-2490NKR55-E4-2765NKR55-E4-3360NKR55-E4-3815
Drive Type
Drive 4 × 2
wheels
4 wheeler6 wheeler6 wheeler6 wheeler
Weight&Capacities
GVW  (kg)4200438052507130
Curb Weight (kg)1680181018502050
Pay Load  (kg)

2000 ~ 4500

Size
Wheel   Base(mm)2490276533603815
Rear   Body Size (For Ref. Only)(mm)3100
360042755050
Engine Specs
Model
4JB1-CN
Type
4 cylinders in line,

turbo charging, inter cooling,
high presure common-rail diesel injection system,

liquid-cooled engine
Emission   Standard
EURO  IV
Displacement (L)2.771
Rated   Power (kw/rpm)72(98hp)/3400
Max.   Torque (N.m/rpm)220/1700


DIMENSIONS

ISUZU NKR55 Cab-Chassis
Wheelbase
WB
(mm)
2490
2765
3360
3815
Overall    Length
OAL
(mm)
4605
5230
5900
6645
Overall    Width
OW
(mm)
1695
1860
1860
1880
Overall    Height
OH
(mm)
2105
2180
2180
2220
Front    Overhang
FOH
 (mm)
1015
1015
1015
1015
Rear    Overhang
ROH
(mm)
1100
1450
1525
1815
Front    Tread
AW
(mm)
1385
1385
1385
1504
Rear    Tread
CW
(mm)
1395
1425
1425
1425
