Body application

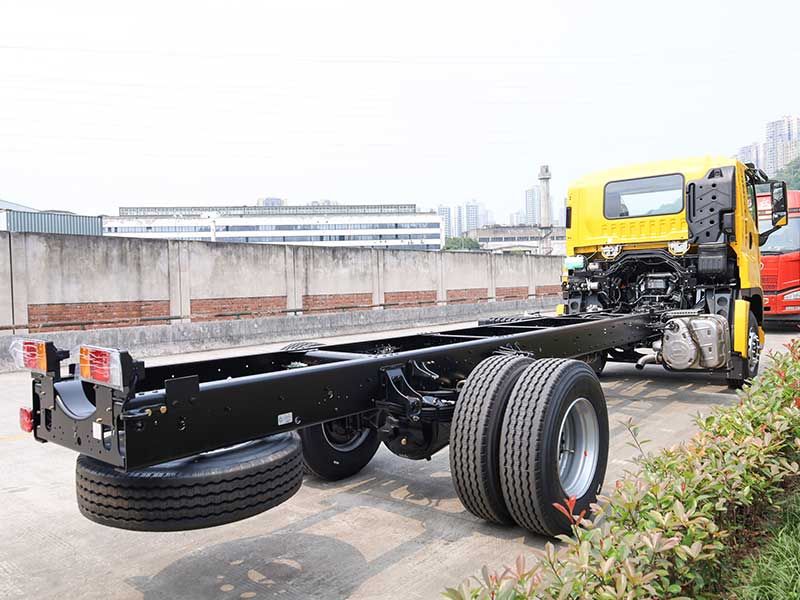

New ISUZU FVR GIGA 5X cabin chassis truck 18tons also called Isuzu FVR GIGA 5X class 240HP chassis,Isuzu FVR GIGA 4x2 18tons chassis,Isuzu new FVR GIGA 5X cab chassis,Isuzu FVR medium chassis with 6HK1 engine, Isuzu FVR GIGA 5x 18-ton chassis.
SPECIFICATIONS
| New ISUZU FVR GIGA 5X cabin chassis truck 18tons | ||
| Vehicle Dimensions and Parameters | Overall Dimension | 8800*2500*2810 (mm) |
| Wheelbase | 4500mm | |
| Front/ Rear Wheel Distance | 2060/1855mm | |
| Front/Rear Suspension | 1370/2830mm | |
| Weights and Capacities | Curb Weight | 6150 (kg) |
| GVW | 18000kg | |
| Axel Loads | 6500/11500kg | |
| Engine | Model | 6HK1-TCG61 |
| Power | 240HP/175Kw | |
| Displacement | 7790ml | |
| Exhaust Gas Treatment Technology | DPF+SCR | |
| Transmission | FAST 8-speed,manual | |
| Cab | Number of Seats | 2 seats and a bed |
| Chassis | Drive Type | 4x2 |
| Drive speed | 105 Km/h | |
| Tires | 7(Including Spare Tire) | |
| Tire model | 295/80R 22.5 | |
| Fuel Tank | Capacity | 200L |
| Type | Diesel | |
| Configurations | Power Steering System | |
| Air Conditioner | ||
| Retro-reflective Marking | ||
| ABS | ||
| Free Maintenance Battery | ||
DIMENSIONS
