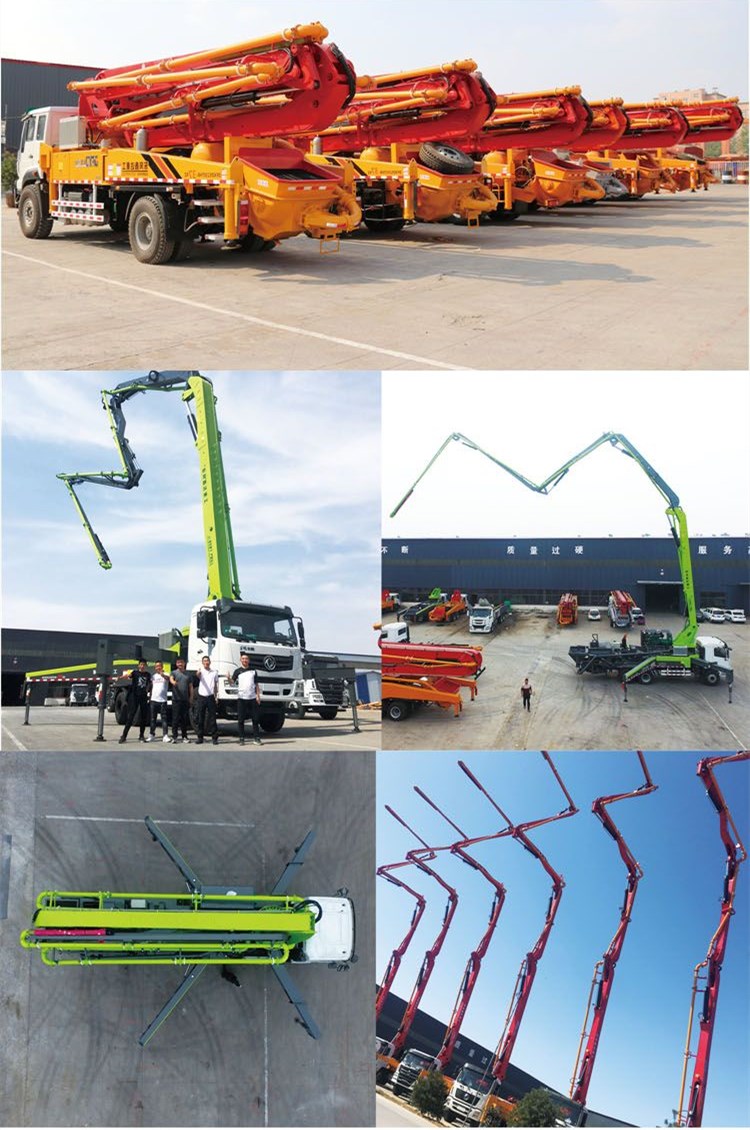

Body application
SPECIFICATIONS
| I. Chassis | ||

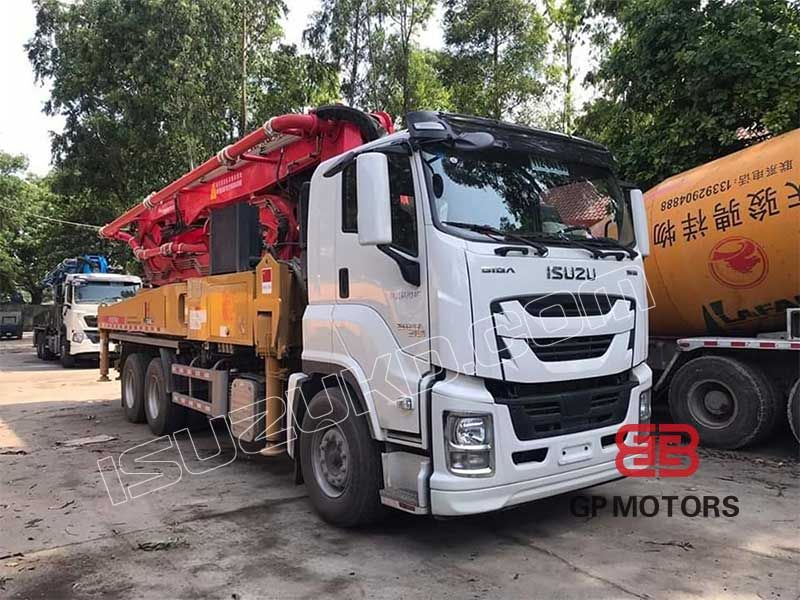

| 1 | Chassis Brand | ISUZU GIGA |
| 2 | Engine Power | 380HP 6UZ1-TCG50 |
| 3 | Gearbox | ZF-8 shift |
| II. Boom system | ||
| 1 | Max. Vertical height(M) | 38 |
| 2 | Max. Horizontal Concrete Placing radius (M) | 34 |
| 3 | Concrete placing depth(M) | 25 |
| 4 | Control mode | Electric proportion |
| 5 | Folding type of boom | RZ type |
| 6 | Folding type of boom | 360° |
| 7 | Opening mode of landing leg | X-R |
| 8 | Length of end hose (MM) | 3000 |
| 9 | Concrete delivery pipe dia. | 125 |
| III. Electric Control System | ||
| 1 | Working voltage: | 24 |
| IV. Hydraulic transmission system | ||
| 1 | Type of hydraulic system | Open type |
| 2 | System working pressure (Mpa) | 31.5 |
| 3 | Displacement of main hydraulic oil pump (ml/r) | 190 |
| 4 | Hydraulic fuel tank capacity (l) | 600 |
| 5 | Cooling mode of hydraulic oil | Forced-air Cooling |
| 6 | High-low pressure changeover valve | None |
| VII. Pumping system | ||
| 1 | Form of concrete distribution valve | S Valve |
| 2 | concrete cylinder | 230 |
| 3 | Maximum feeding height (MM) | 1500 |
| 4 | Hopper capacity (M3 ) | 0.65 |
| 5 | Slump of pumped concrete | 160-220 |
| 6 | Dimension of allowable maximum aggregate (MM) | 40 |
DIMENSIONS
