product description

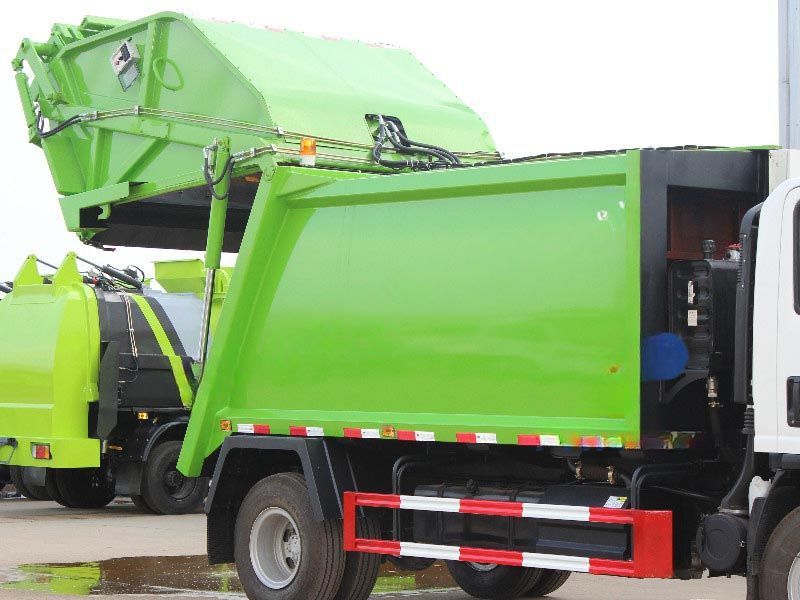

Customized Qingling 700P garbage compactor truck for hot sale, Qingling 700P 4*2 drive 6 wheeler truck chassis, 4HK1-TC51 engine with 190HP, MLD 6-shift gear box, arc-shape compactor body with top Chinese brand hydraulic cylinders, rear tilting device can be lifting 240L, 360L, 660L, 770L, 1100L international garbage bins, high strength T420 steel body with customized 8 CBM capacity

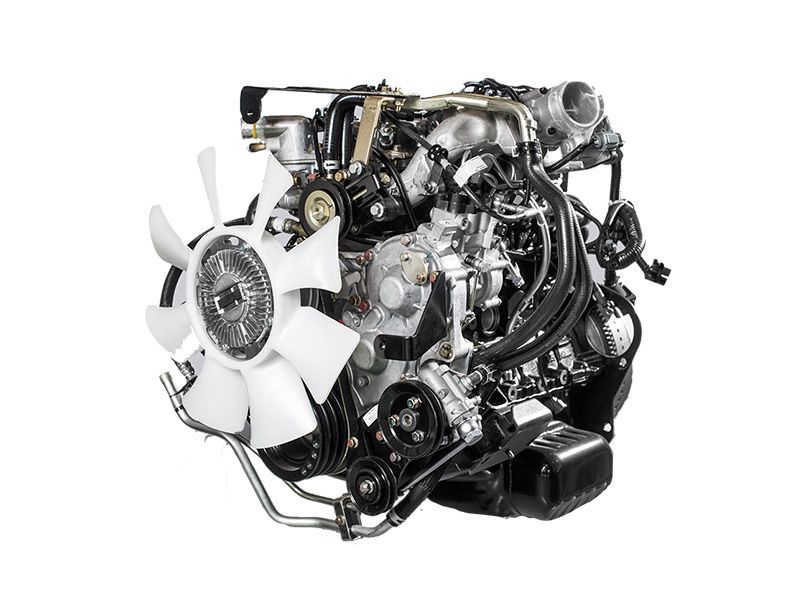

4HK1-TC51 engine, no overhaul within 100,000 km

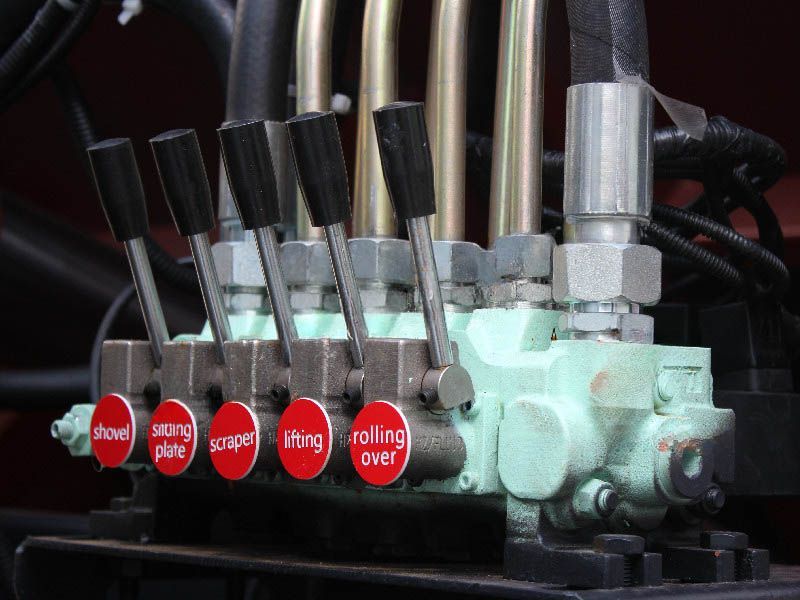

Italy technology multi valve, can ensure it work more than 5 years.
Manufacturer | Qingling Trucks | |
Item | QINGLING mini ELF Garbage Compactor Truck | |
Brand | QINGLING | |
Model | PT06ZYS | |
Production Time | 25 days | |
Truck Chassis | ||
Specification | Overall dimensions | 7200*2000*2650 mm |
Gross weight | 10,000 kg | |
Kerb weight | 5,000 kg | |
Wheelbase | 3,815 mm | |
Driving type | 4*2 | |
Chassis model | QINGLING 700P Light-duty | |
Tire size | 235/75R17.5 | |
Passengers in cab | 3 | |
Engine | Engine model | 4HK1-TC51 |
Type of fuel | Diesel | |
Power | 190 HP | |
Gearbox | MLD 6-shift gearbox | |
Upper Structure | ||
Compactor Body performance | Tank Capacity | 8 CBM |

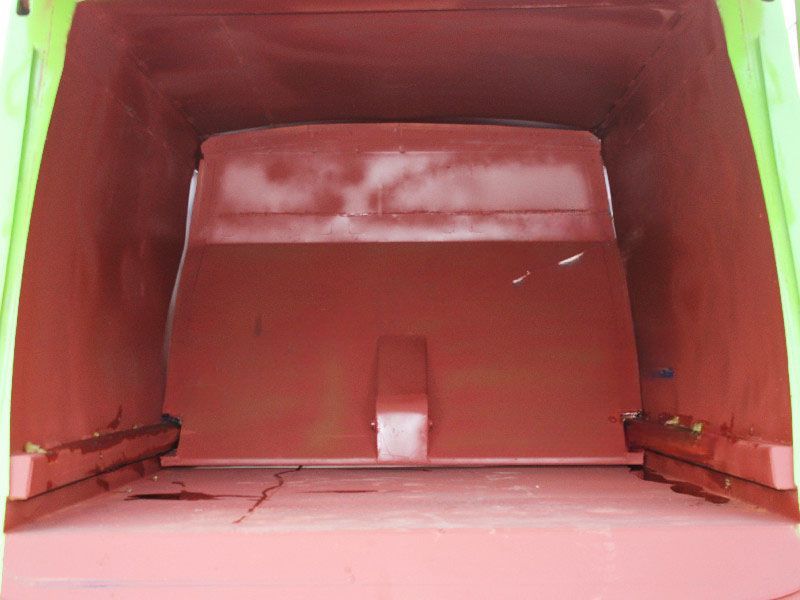

Tank Material | 4mm high strength steel T420, with inside and outside antirust treatment | |
Rear Hopper | 0.8-1.2 CBM | |
Waste Water Tanker | 100 + 200 Liters | |
Body Shape | Arc Shape as standard | |

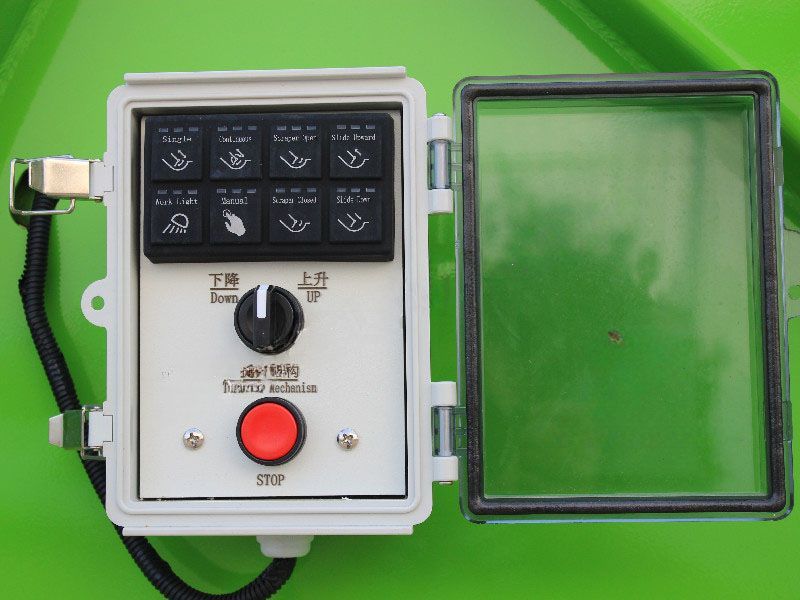

Control System | CAN-BUS electric control | |
Hydraulic Valve control | ||
Control Panel | English or Your language | |
Discharge Model | Horizontal Ejection | |

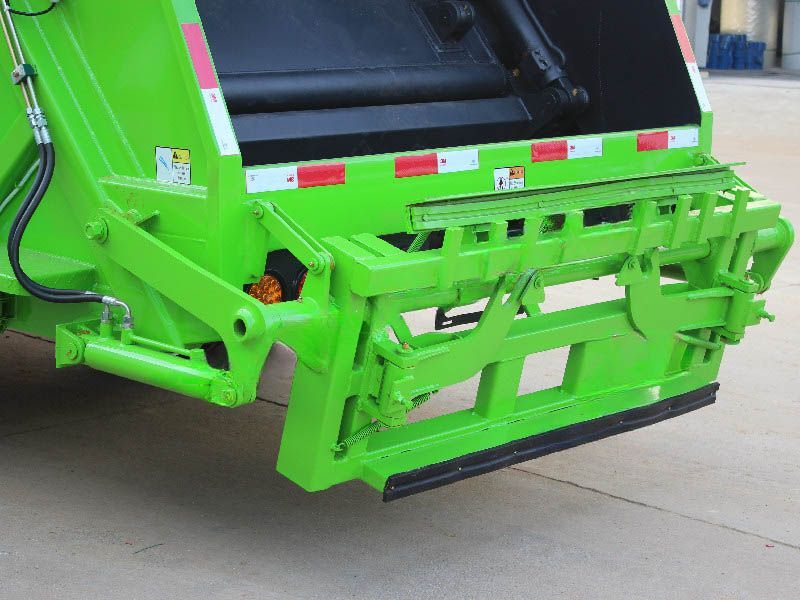

Tilting Device | Standard 240L * 2 | |
Customized 360L, 660L, 770L, 1100L bins | ||
Painting | Two primers, and one final paint coating | |
Color & LOGO | According to wish | |
Factory standard | “U” shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and rubber flaps... | |
Documents | English operation manual, Spare parts list, and all necessary export docs. | |
Optional equipment | 1, Back Alarm and Camera can be equipped 2, Italy brand multi-way valve can be optional 3, 660L, 770L, 1100L bins lifting device can be optional 4. Front snowing sweeping device can be optional | |
