product description
The ISUZU NPR light-duty garbage compactor truck is a city service garbage truck with excellent performance. It is equipped with a 4HK1-TCG61 engine with a maximum power of 190 horsepower and a displacement of 5.19L. It adopts a 4-cylinder in-line turbocharged intercooler design. The total weight of the vehicle is 11 tons, and the actual load capacity is 4.9 tons. The chassis is 4*2 drive and the wheelbase is 4175mm. The garbage bin has a capacity of 10 cubic meters and is made of curved integral steel plates. The bottom and side plates are both 4mm thick Q235 special steel, and the compression ratio reaches 1:3.4. It is equipped with a 6-front and 1-rear gearbox, with a maximum speedof 90km/h and a fuel tank capacity of 100L. The garbage loading and unloading system adopts PLC automatic control.

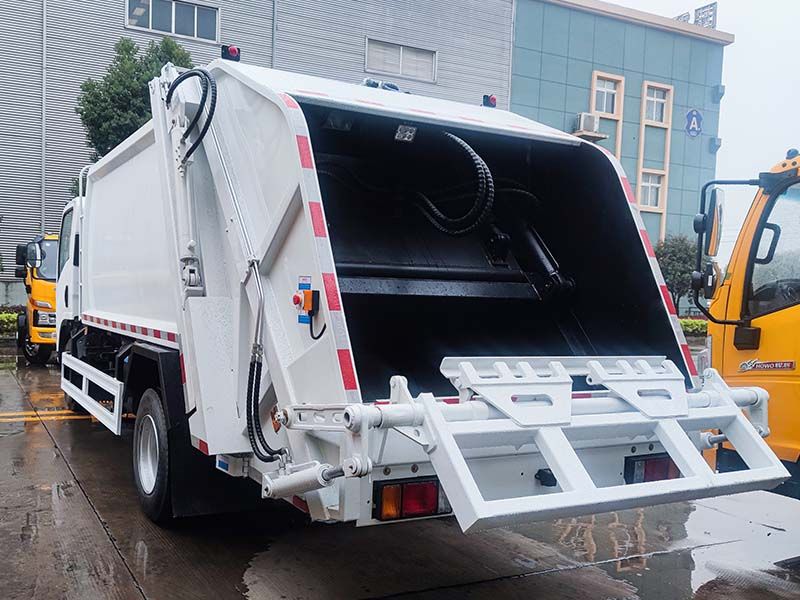

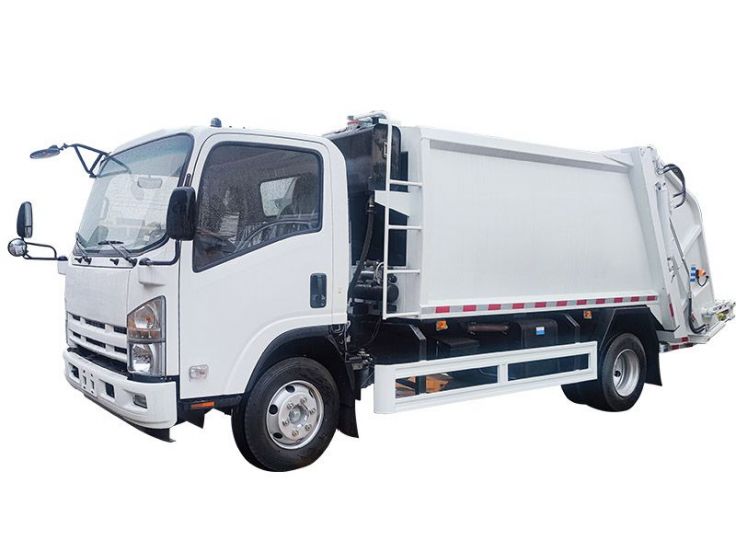

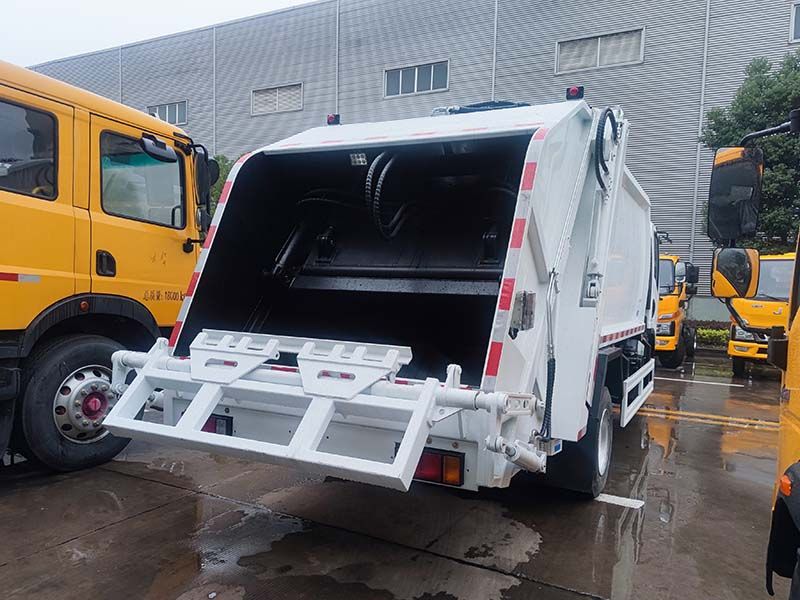

| ISUZU 700P 6 Ton Capacity 8m3 Container Compression Garbage Collection Sanitation Truck | ||
| General | Vehicle Brand | |
| Chassis Brand | ISUZU | |
| Overall Dimension | 7365 X 2250 X 3085 mm | |
| GVW / Kerb Weight | 10,300 kg / 6,800 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine, 4HK1 | |
| Power | 190 Hp (139 KW) | |
| Displacement | 5193 ml | |
| Emission Standard | Euro 4 | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | ISUZU gear box, no overhaul within 500,000km | |
| Wheelbase/No. of axle | 3815 mm / 2 | |
| Tyre Specification | 7.50-16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure and the main characteristic | Garbage box Capacity | 8 cbm (6 ton) |
| Garbage box Material | Carbon steel | |

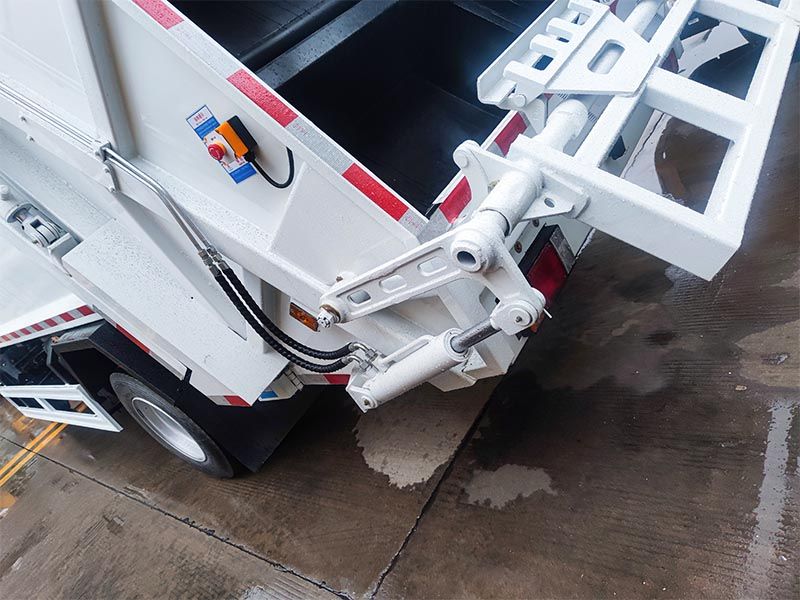

| 1: Can choose 240L(single bin,double bins)or 360L,660L,1100L standard bin lifting and turnover mechanism,can also choose ground hopper and other kinds of loading mechanism. | ||

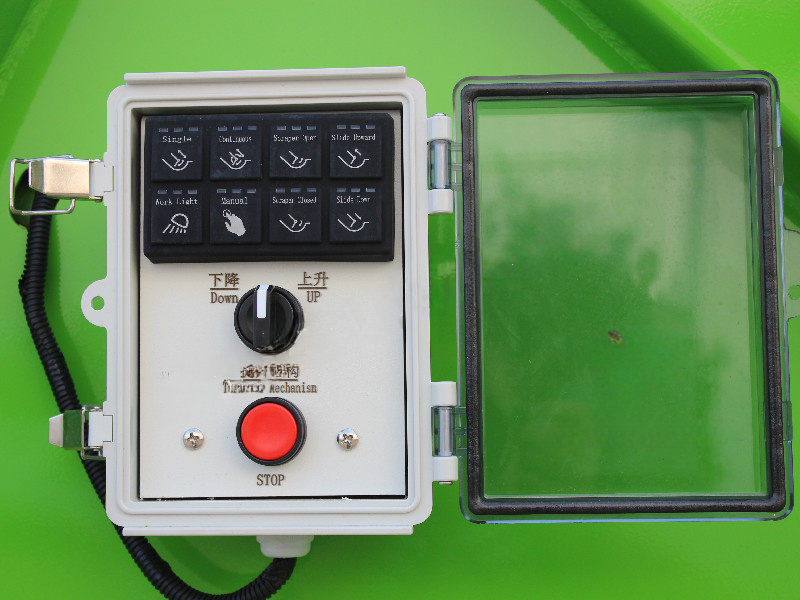

| 2: With manual and automatic two sets of control method, the operator can control in the cabin, in the middle side or the back of the truck , very convenient and efficient. | ||
| 3: With working device of emergency braking stop button. | ||

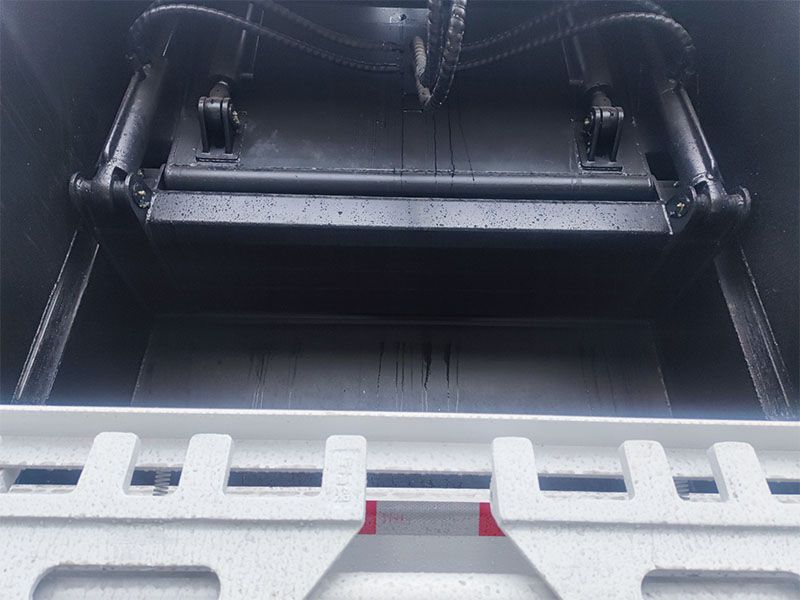

| 4: Garbage body use frame design, elegant, strong structure, large effective capacity. | ||

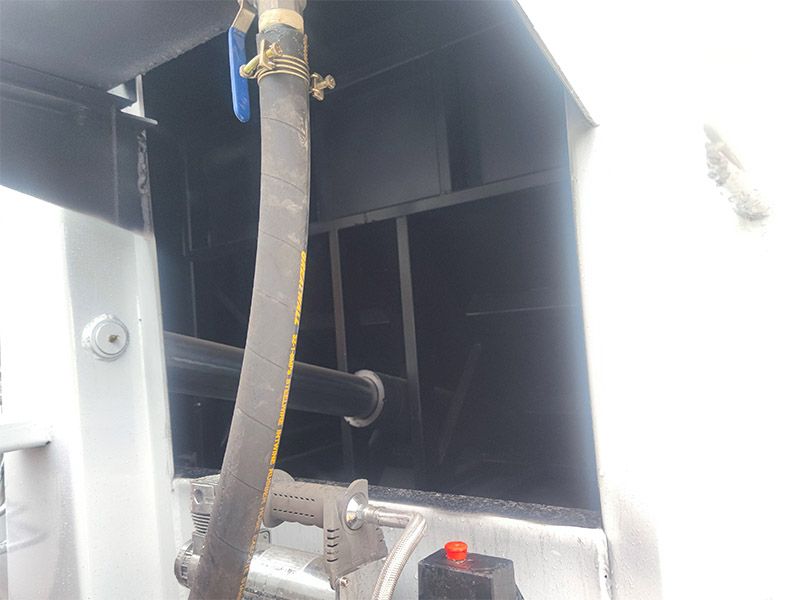

| 5: Equipped with special collection box, sewage directly into the sewage tank in the process of compression, that is effectively prevent second pollution caused by sewage leaks. | ||

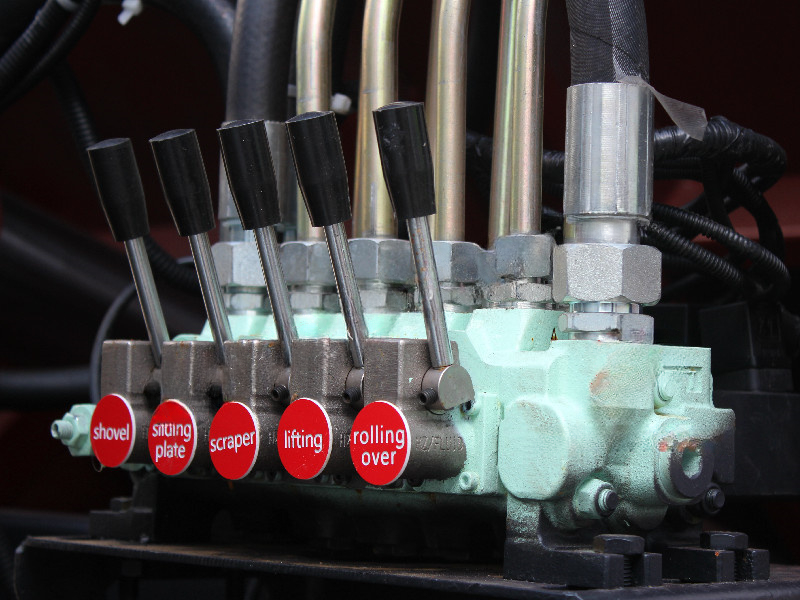

| 6: Through hydraulic system design, the truck achieve the function of two-way garbage compression, that is improve the compressibility ,make the compression ratio up to 1:2.5,the garbage can reach more then 600~800kg/m3 after compression. | ||
| 7: All other standard accessories: Tool kit, English manual… | ||
