Customized Colors
details show
Manufacturer | Qingling Trucks | |
Item | QINGLING ELF Water Tank Fire Truck | |
Brand | QINGLING | |
Model | PT03XF | |
Production Time | 40 days | |
Truck Chassis | ||
Specification | Overall dimensions | 7000*2400*3000 mm |
Gross weight | 10,000 kg | |
Kerb weight | 5,200 kg | |
Wheelbase | 3815 mm | |
Driving type | 4*2 | |
Chassis model | QINGLING ELF Light-duty | |
Tire size | 235/75R17.5 | |
Passengers in cab | 6 | |
Engine | Engine model | 4HK1-TC51 |
Type of fuel | Diesel | |
Power | 190HP | |
Gearbox | MLD 6-shift gearbox | |
Upper Structure | ||
Water Tanker performance | Water Tank Capacity | 4,000L |
| Foam Tank Capacity | 1,000L | |
Tank Material | 4 mm carbon steel with hexagonal design, both inside and outside antiseptic treatment | |

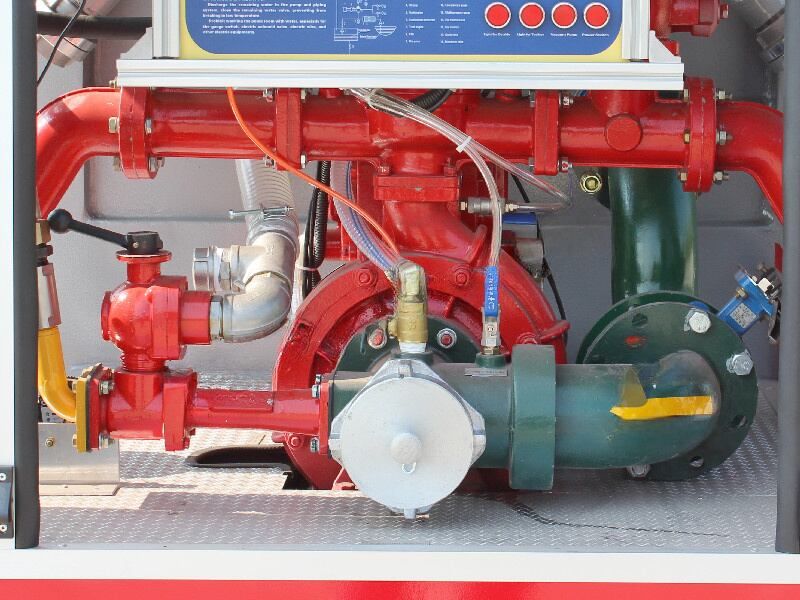

Fire Pump | Top Chinese brand | |
Model: CB10/40 | ||
Pressure (Mpa): 1.0 | ||
Flow Rate: 40L/s | ||
Fire Monitor | Top Chinese brand | |
Model: PL24 | ||
Rated Working Pressure: 0.65 Mpa | ||
Water Jetting Distance≥50 m | ||
Electric Alarm | Standard equipped | |
Pillow Light | Equipped on top of cabinet with siren | |
Painting | Two primers, and one final paint coating | |
Color & LOGO | According to wish | |

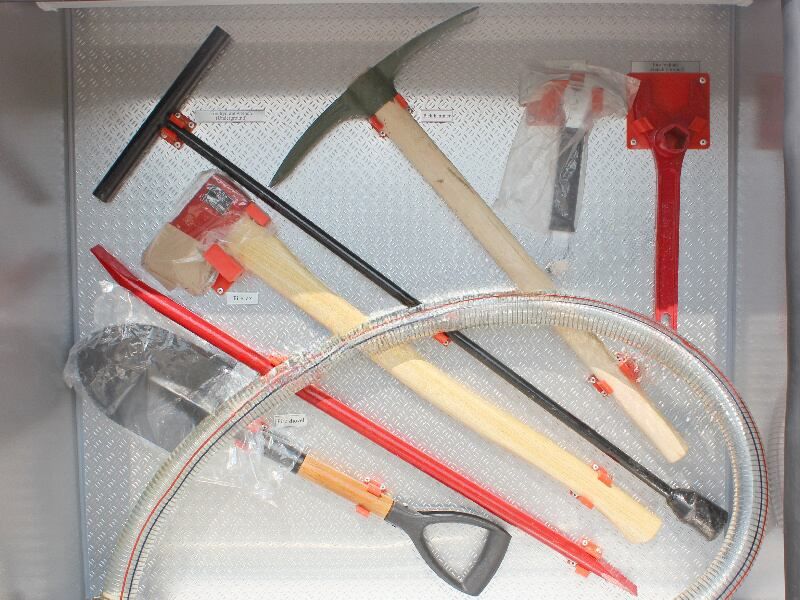

Factory standard | “U” shape Sub Frame, Safety protection, Sandwich PTO, Working Lamp, Fire Pump, Fire Monitor, Full Fire Fighting Equipment, Hand holds, Mudguards, and rubber flaps... | |
Documents | English operation manual, Spare parts list, and all necessary export docs. | |
Optional equipment | 1, Stainless steel tank optional 2, Foam tank, dry powder tank system optional 3, Front towing system optional | |
