Manufacturer | Qingling Trucks | |

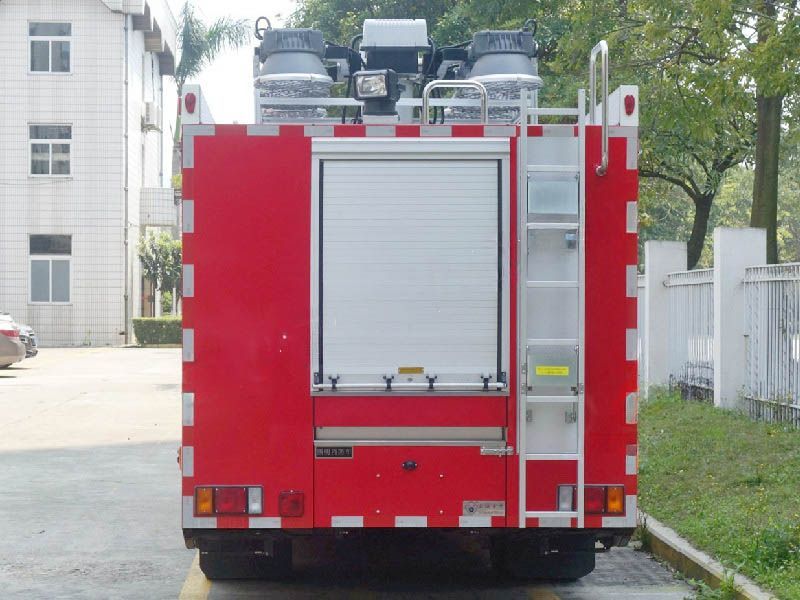

Item | QINGLING 700P Rescue Fire Fighting Truck | |
Brand | QINGLING | |
Model | PT03XF | |
Production Time | 35 days | |
Truck Chassis | ||
Specification | Overall dimensions | 7050*2300*3200 mm |
Gross weight | 10,000 kg | |
Kerb weight | 6,800 kg | |
Wheelbase | 4175 mm | |
Driving type | 4*2 | |
Chassis model | QINGLING 700P Light-duty | |
Tire size | 235/75R17.5 | |
Passengers in cab | 3 | |
Engine | Engine model | 4HK1-TC51 |
Type of fuel | Diesel | |
Power | 190HP | |
Gearbox | MLD 6-shift gearbox | |
Upper Structure | ||

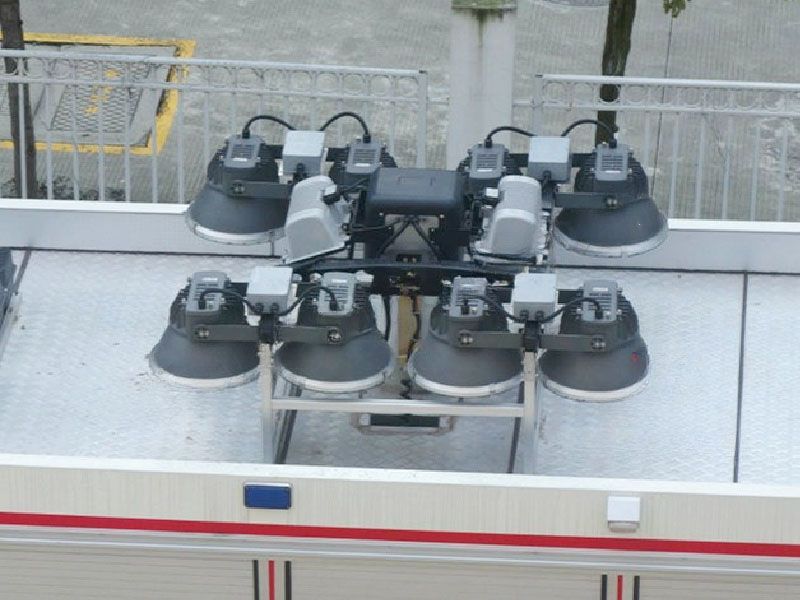

Lifting Light System | Main Lamp | 8*1000 W |
Lifting Height | 7.6 m | |
Control Box | AC380V, Wire control | |

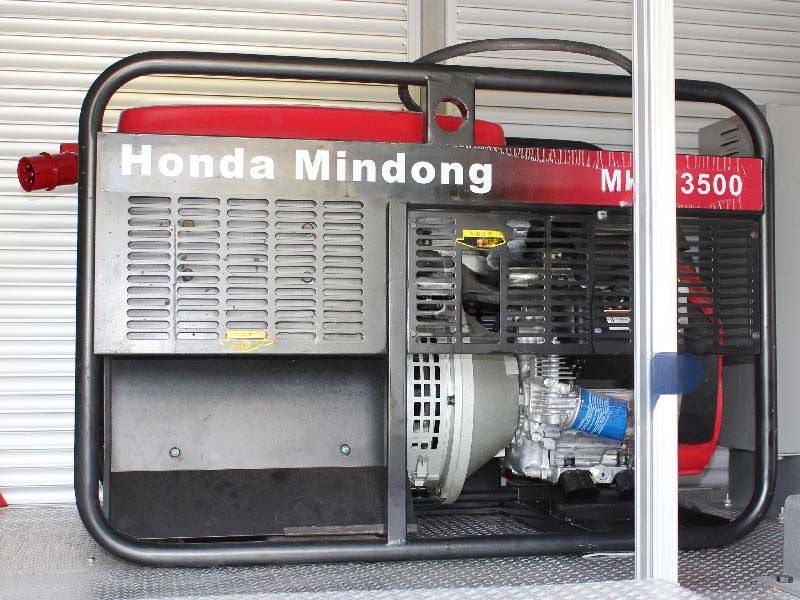

Generator | Brand | Original Import Honda brand |
Voltage | 380V | |
Power | 10kv/A | |
Optional | Electric / Manual | |
Electric Alarm | Standard equipped | |
Pillow Light | Equipped on top of cabinet with siren | |
Painting | Two primers, and one final paint coating | |
Color & LOGO | According to wish | |
Factory standard | “U” shape Sub Frame, Safety protection, Cabin Working Lamp, Top Lifting working lamp, rear working lamp, Generator, Full Fire Fighting Equipment, Hand holds, Mudguards, and rubber flaps... | |
Documents | English operation manual, Spare parts list, and all necessary export docs. | |
Optional equipment | 1, Rear folding arm boom crane optional 2, Front heavy towing winch optional 3, Front snow removal equipment optional | |
