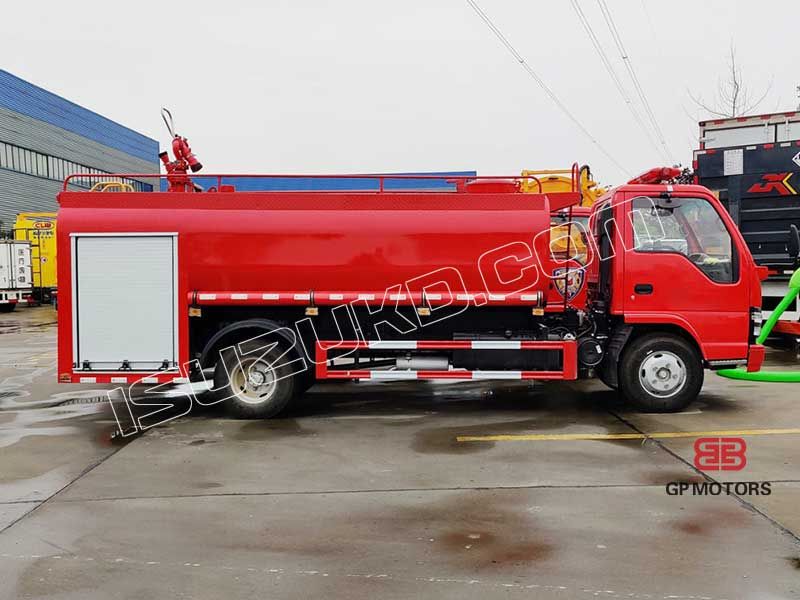

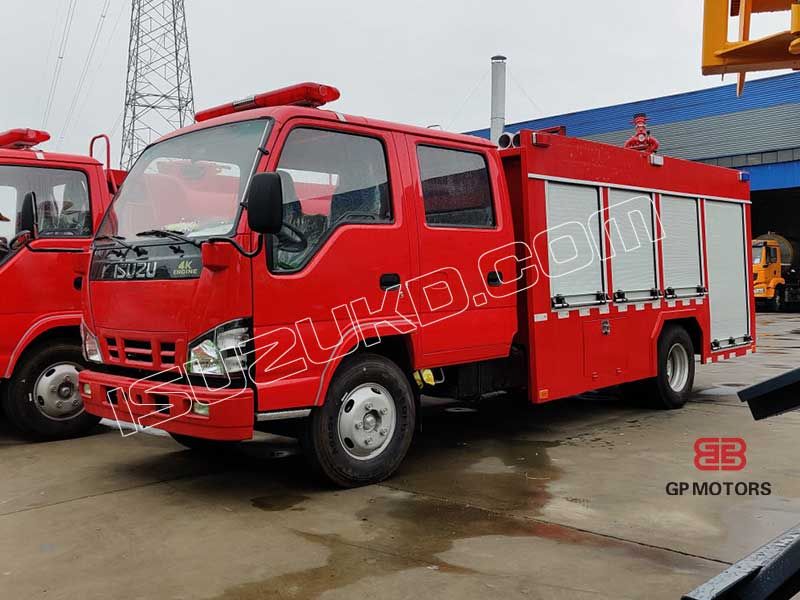

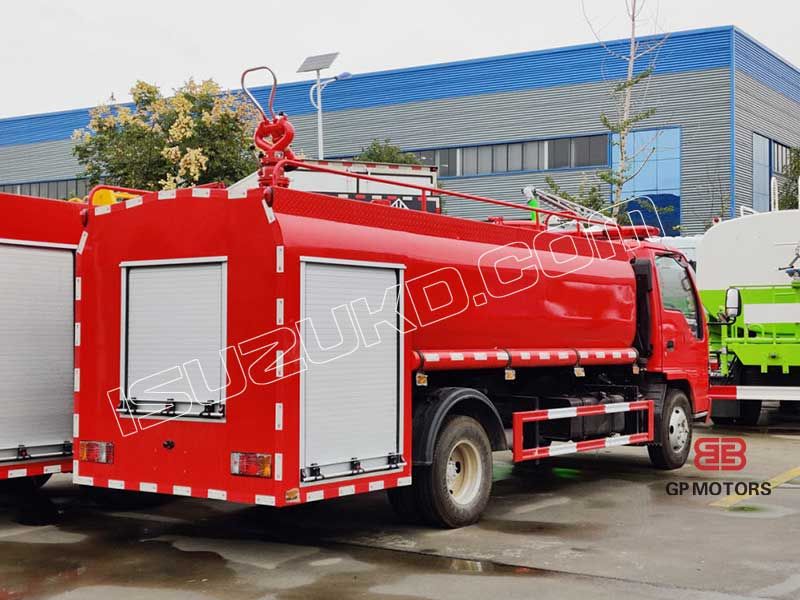

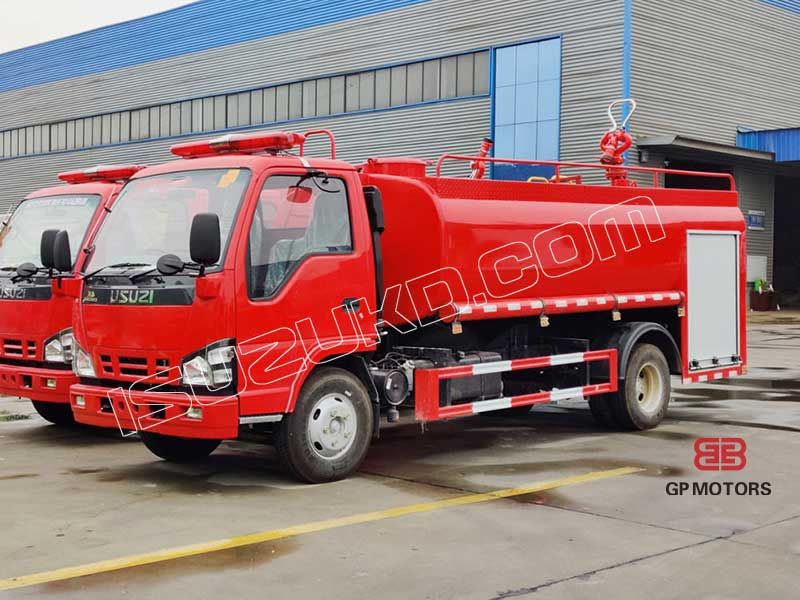

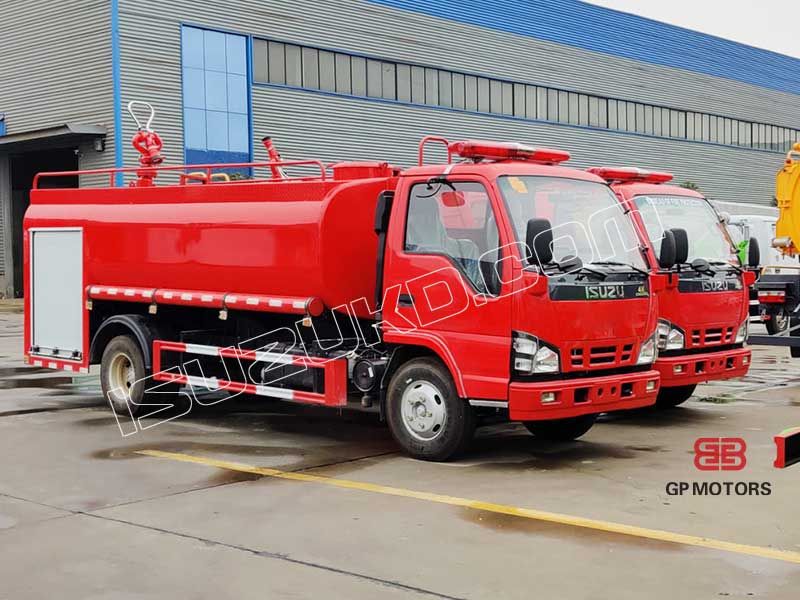

| ISUZU NKR 4x2 130hp 4000 liters water tanker fire fighting truck parameters | ||||
| Chassis | ||||
| Cabin | Brand: lSUZU GP MOTORS Trucks | |||
| NKR, 4x2 left hand drive. | ||||
| with air conditioner, 2 seats, with USB,radio, loud speaker | ||||
| Vehicle Main Dimensions | Overall dimensions (LxW xH)mm: 9200*2330*2780 mm | |||
| Wheel base:3815(mm) | ||||
| Overhang (front/rear):1335/2665(mm) | ||||
| Approach angle:26° | ||||
| Departure angle.16° | ||||
| Weight in KGS | Curb Weight:4805 kg | |||
| Payload: 5tons | ||||
| Max. driving speed(km/h) | 90 | |||
| Engine | Brand | ISUZU | ||
| Model | 4KH1-TCG40,EURO I | |||
| Emission | 3000 ml | |||
| Horse power | 130HP | |||
| PowerType | 4-stroke direct injection , 4-cylinder in-line with watcooling.turbo-charging and inter-cooling | |||
| Gearbox | ISUZU MSB5,5 Forwards gear & 1 reverse gear | |||
| Tire | 7.00R16.6 pcs+1 spare tire | |||
| Axle | Front axles 4T. rear axle 5t | |||
| Brake | Air brake | |||
| Upper parameters | ||||
| Water tank volume | 4000 liters | |||
| Manhole in the tank | DN450 | |||
| Thickness | 5mm | |||
| Material | Carbon steel and high tensile steel | |||
| Standard configuration of the tank | Equipped with front, side and Sprinkler (Sprinkling width>14m) Equipped with fire fighting pump pump (Suction lift >6m) Equipped with fire valve, water valve, and filter gauze. Equipped with water cannon rubber padding between tanker and chassis Equipped with water pump Equipped with fire brigade system, fire gun on top, (Sprinklingwidth>60m) | |||
| fire fighting pump | ||||
| Type of pump | Centrifugal pump | |||
| Minimum fire fighting pump flow | 40L/S | |||
| Minimum pressure | 1.0Mpa | |||
| Flow (L/S) | Outlet pressure(Mpa) | Rated speed(r/min) | Crank power (kw) | Suction depth(m) |
| 40 | 1 | 3080+50 | 62.92 | 3 |
| 28 | 1.3 | 3360+50 | 63.92 | 3 |
| 20 | 1 | 2990+50 | 41.95 | 7 |
| Fir fighting fixed water cannon in the top of truck | ||||
| Diameter (mm) | φ100 | |||
| Flow (L/min) | 40L/min | |||
| Max range (m) | ≥65m | |||
| Working pressure(Mpa) | ≤07 MPa | |||
| Vertical rotation angle( degree) | -100 | |||
| Horizontal rotation angle (degree) | 360 | |||
| Size(mm) | 1000*340*600 | |||
| Weight (kg) | ≤50 | |||
| Pipe system | ||||
| Pipe Line inlet | 2 inlet, φ125 inlet in the pump(our standard is 1 inlet) | |||
| Pipe Line outlet | 2 outlet, p65, in the back of pump | |||
| Spraying water pump | ||||
| Function | Control the front ,side and rear sprinkler | |||
| Flow | 60m3/h | |||
| Pump head | 90m | |||
| Self-suction height | 6.5m | |||
| Suction time | 1.5 (min/4m) | |||
| Equipment | ||||
| Fire electine siren | 1-NOS | |||
| Emergency rotation lamp | 1-NOS | |||
| Fire axe | 1-NOS | |||
| Fire hook | 1-Nos(must be applied to climb) | |||
| Fireman ladder(extension ladder ) | 1-NOS | |||
| Jet&spray nozzle | 1-NOS | |||
| Jet nozzle | 1-NOS | |||
| Fire hoses(b/s system)(65mm,20m) | 4-NOS | |||
| Suction pipe (length 4m ) | 2-NoS | |||
| Water filter(p100.metal) and guide rope | 2-NoS | |||
| Suction pipe wrench(100mm) | 2-NoS | |||
| Fire hydrant wrench | 2-NoS | |||
| Fire extinguisher(3kg) | 2-NoS | |||
