| Isuzu FVR Emergency Rescue Fire Truck | ||||
| Cab | ISUZU F series single cab, with power steering. Electronic flameout,with a/c | |||
| Driving Type | 4*2 Left hand driving | |||
| Max Speed (km/h) | 90 | |||
| Overall dimension(mm) | 8820×2500×3450mm | |||
| GVW( kg) | 19000 | |||
| Mass in working order ( kg) | 11000 | |||
| Rated payload | 8000kg | |||
| Wheelbase(mm) | 4600 | |||
| Tire | 295/80R22.5 (6+1) | |||
| Clutch | Single-plate dry diaphragm spring clutch | |||
| Steering | Hydraulic steering with power assistance | |||
| Gear box | 10-speed | |||
| Bridge | Front axle | 7T | ||
| Rear axle | 13T | |||
| Engine | Model | ISUZU 6HK1 | ||
| Fuel Type | Diesel fuel | |||
| Type | Water-cooled four-stroke,, direct injection, turbocharged | |||
| Exhaust(ml) | 7800 | |||
| Max output power/rotate speed (hp /rpm ) | 240HP | |||
| Braking system | Service Brake | Compressed air brake | ||
| Park Brake | Spring energy | |||
| Auxiliary brake | engine exhaust brake | |||
| Eletric system | 24v | |||
| Upper-Body specification | ||||
| Cabin | Cabin with Bed | |||
| Crane | Model | SQ5ZK2 | ||
| Lifting capacity | 5000kg | |||
| Arm qty | 3 | |||
| Winch | Qty | 1 | ||
| Capacity | 3000kg | |||
| Search light | Rotating angle | 360° | ||
| Working height | 5m, auto lifting | |||
| Buble | 500w*4pcs | |||
| Max wind velocity | <6 grade | |||
| Genaral power | 5kw | |||
| Fire truck body | Truck body is empty, equipments are optional | |||
| color | The whole vehicle is red for fire fighting, there are white in the middle of truck in accordance with the whole truck | |||
| Technical Parameter | ||||

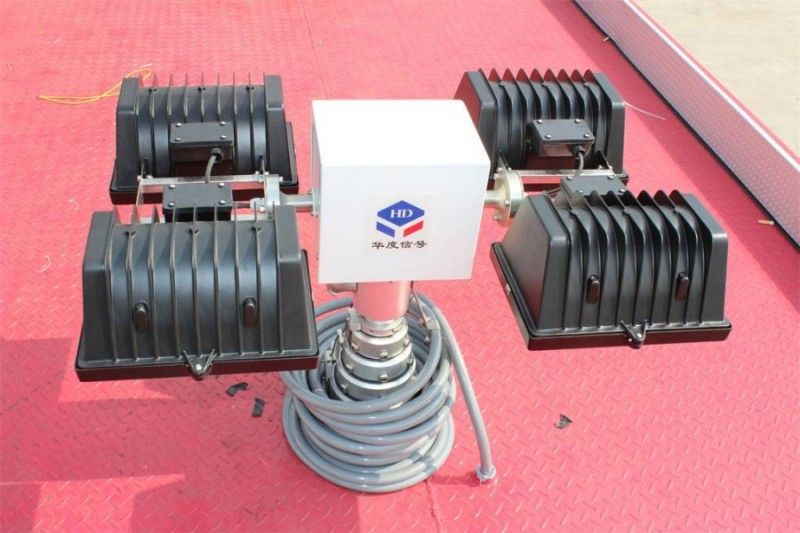

| Lifting lighting system 升降照明系统 | Main light | 4x1000w Yuntai DC12V | ||
| Lifting height | 7.6M air pump AC220V | |||
| Electric control box | AC380V wired remote control | |||
| Hydraulic crane 液压起重机 | Maximum rated lifting quality 最大额定起重质量 | 3200kg | ||
| Maximum lifting torque 最大起重力矩 | 4Ton.m | |||
| Maximum working range 最大工作范围 | 5.8M | |||
| Maximum lifting height 最大举升高度 | 7.4M | |||
| Maximum leg span 最大腿跨度 | 3540mm | |||

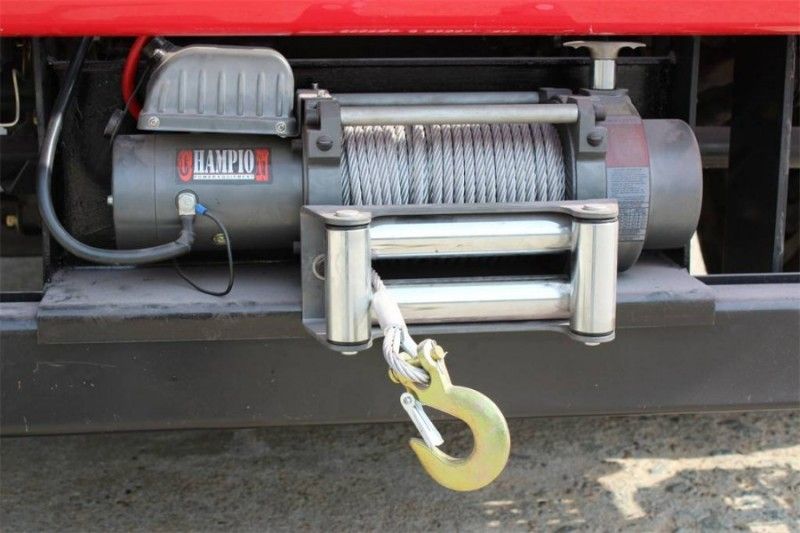

| Front electric winch 前电动绞盘 | Voltage | 24VDC | ||
| Current | 240A | |||
| Calibration pull | 8000kgf (3629kg) | |||
| Speed ratio | 150:01:00 | |||
| Speed | 5.6m/min | |||

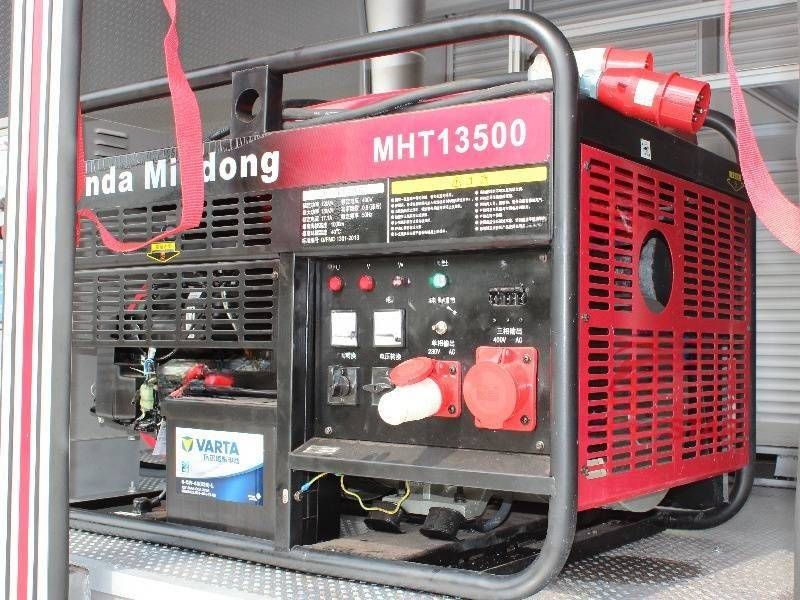

| generator | Voltage | 380V | ||
| Power | 10kv/A | |||
| Electric start / hand start | ||||
| Fire truck special function description | ||||
| Cab | Flat-top all-metal enclosed cab, double row seat, four-door, panoramic curved windshield. Optional new front cover, front bumper, front combination light, door and window, front under cover. 平顶全金属封闭驾驶室，双排座椅，四门，全景曲面风挡。选装新型前盖、前保险杠、前组合灯、门窗、前下盖。 | |||

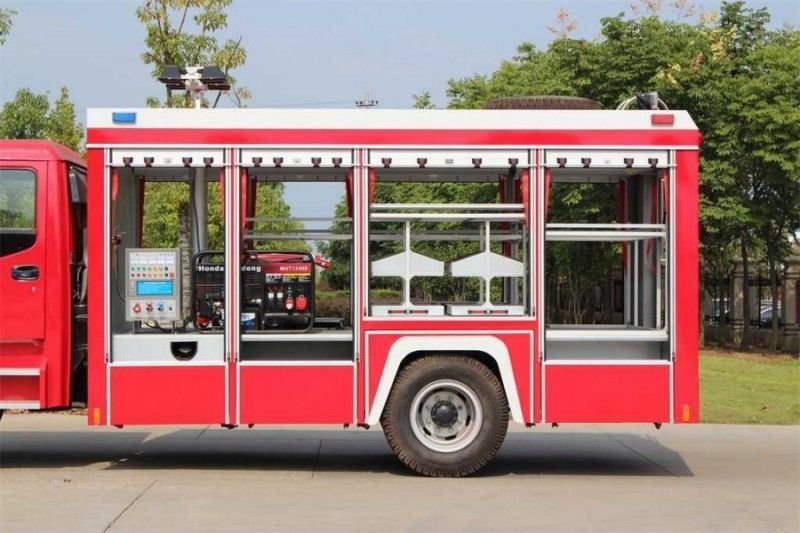

| Equipment box | It is manufactured by the built-in tower technology of aluminum alloy profiles produced by European technology, and is fully spliced. Aluminum alloy shutter doors are used 采用欧洲技术生产的铝合金型材内置塔技术制造，全拼接。采用铝合金卷帘门 | |||
| Electrical configuration | The front end of the cab is a long row of police lights, and the rear of the car is equipped with a 24V/60W fire field lighting. The red and blue matching strobe lights are arranged on the upper sides of the vehicle, and the safety sign lights, passenger compartment and equipment box are installed below. The pump room is equipped with lighting, plus 100W alarm, rotary warning light switch, communication equipment preparation interface. 驾驶室前端为长排警灯，车后部装有24V/60W消防场照明灯。车体上方两侧布置红蓝匹配频闪灯，下方安装安全标志灯、乘客舱及设备箱。泵房内装有照明灯，另加100W报警器、旋转警示灯开关、通讯设备预备接口。 | |||
