| ISUZU FTR foam fire engine specifications | |||
| Vehicle name | ISUZU foam tender fire truck | Overall Dimension (mm) | 8280×2500×3470 |
| Vehicle Model | PT5060GXFP | Wheel base (mm) | 4500 |
| Traction system | 4*2 | Gross Weight (kg) | 16000 |
| Cab Capacity | 2+3 | Curb Weight (kg) | 8050 |
| Transmission | manual | Front Track (mm) | 1910 |
| Chassis Brand | ISUZU | Rear Track (mm) | 1800 |
| Tyre Model | 10.00-20 | Approach Angle (°) | 26 |
| Quantity of Tyre | 6+1 | Departure Angle (°) | 13 |
| Quantity of Axles | 2 | Front Overhang (mm) | 1250 |
| Max Speed (km/h) | 90 | Rear Overhang (mm) | 2160 |
| Chassis | |||
| Chassis Model | QL1160VMF | Leaf Spring | 7/7+5 |
| Engine (Motor) | |||
| Brand | ISUZU | Type | Diesel |
| Model | 4HK1-TC50 | Displacement (ml) | 5193 |
| Power (kw) | 205 | Emission standard | Euro 5 |
| Equipment | |||
| Water Tank Capacity | 5000 L | Tank Material | carbon steel |
| Foam Tank Capacity | 1000 L | Tank Material | stainless steel |
| Nozzle Pressure | 1.0 Mpa | Water Flow Speed | 60 L/s |

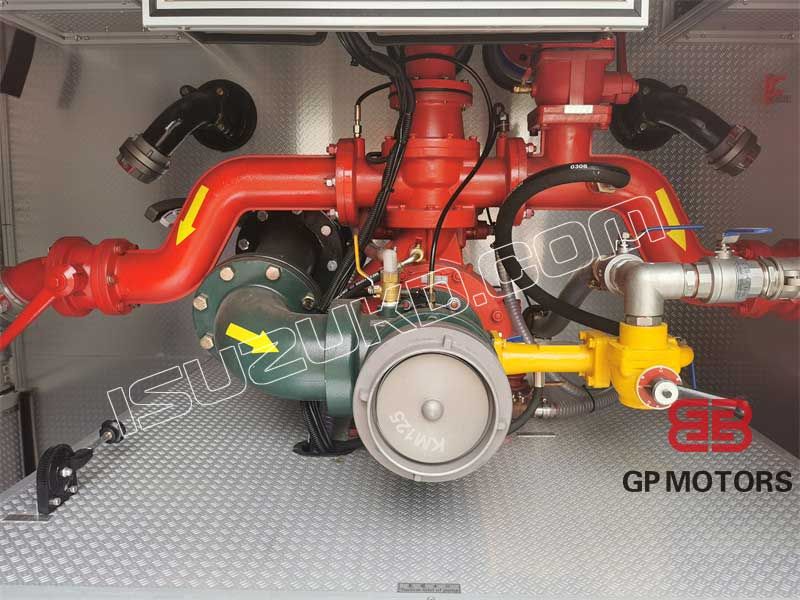

| Low Pressure Pump | CB10/60 | Range (m) | water≥65m, foam≥60m |
| REMARKS: | |||

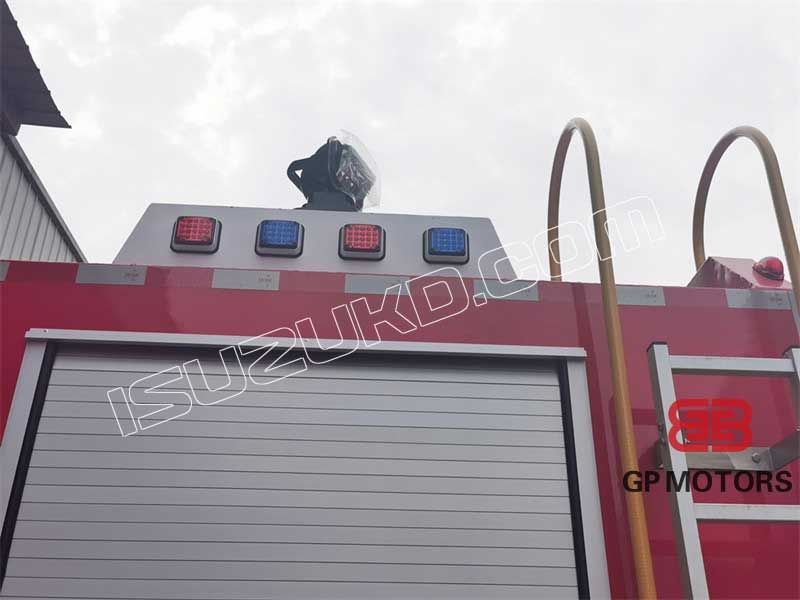

| The cab is in general complete steel frame welding structure. The tank is made of qualitative carbon steel material, thickness 4mm, preservative treatment, durable in use. Aluminum alloy roller shutter door can be easily operated with small noise.The fire truck is equipped with PTO indicator light, 100w alerter, LED alarm lamp, identification lamp, clearance lamp and rear lamp. Besides, the fire fighting apparatus such as suction pipe, water filler, fire hose, hose adapter, pickax, spade etc. are equipped. | |||
