| Chassis Dimensions and Parameters | Overall Dimension(LxWxH) | 6200x2500x3060mm |
| Wheelbase. | 3815mm | |
| Front wheel distance | 1680mm | |
| Rear wheel distance | 1650mm | |
| Front Suspension | 1110mm | |
| Rear Suspension | 1525 | |
| Leaf Spring. | optional | |
| Weights and Capacities | Curb Weight: | 5100kg |
| Payload: | 5200kg | |
| GVW: | 10055kg | |
| Axle Loads: | 4000/7000kg | |
| Engine | Engine model | 4HK1-TC |
| Max output. | 139KW | |
| Displacement | 5193ml | |
| Horsepower. | 190PS | |
| Exhaust Gas Treatment Technology: | DP (Can be customized to remove and suitable for all market | |
| Transmission | Transmission. | MLD |
| Forward Gear. | 6 Speed Gear | |
| Backward Gear. | 1 Speed Gear | |
| Brake | Air Brake | |
| Generator | 24V | |

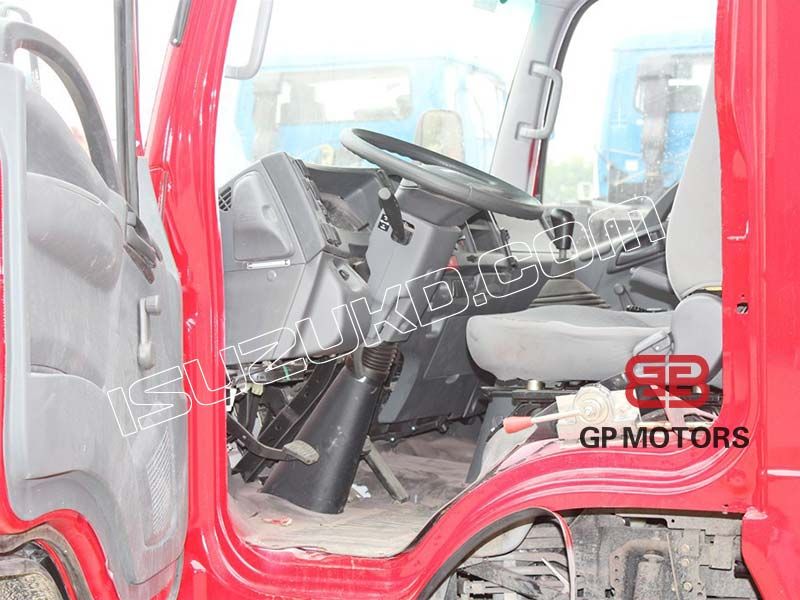

| Cab | Number of Seats. | 2+4 seats, double cabin with 4 doors |
| Chassis | Drive Type. | 4x4 offroad model |
| Tires. | 7(Including Spare Tire) | |

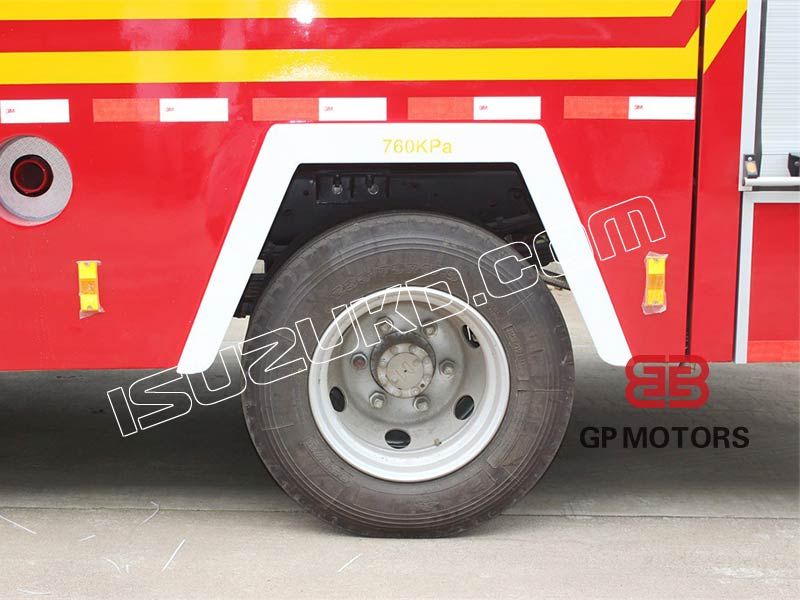

| Tire Model | 235175R17.5 | |
| Fuel Tank | Number. | 1 |
| Capacity | 100L | |
| Configurations. | 1 | Power Steering System |
| 2 | Air Conditioning | |
| 3 | Retro-reflective Marking | |
| 4 | ABS | |
| 5 | Free Maintenance Battery | |
| 6 | Central Lock | |
| 7 | Power Window | |
| 8 | Data Recorder | |
| 9 | Speed Light | |
| 10 | Large Indoor Light | |
| Water Tank | Capacity | 4000L(Water)+1000L(Foam) |
| Type. | Steel plate welded type, with vertical and horizontal anti-sway plates inside | |
| Material: | stainless steel 304 | |
| Tank Equipment | Manhole. | 1 Pcs manhole with quick lock and open device |
| Overflow Valve Device | 1 Pcs | |
| Liquid Level Sensor. | 1 PcS | |
| Sewage draining exit. | 1 Pcs. Manual valve control | |
| Fire Pump. | Model: | CB20.10/15.30 |
| Assemble Type. | Rear-mounted | |
| Main performance. | Situation 1:When pressure is 1.0MPa, flow is 30L/s Situation 2:When pressure is 2.0MPa, flow is 15L/s | |
| Water diversion time | ≤35s | |
| Pipe System | Suction pipe | The pump is equipped with a DN125 water inlet, which can suck water from natural water sources or from liquid tanks |
| Outer water inlet pipe. | The diameter of the outer water inlet on the rear side of the pump is DN125, connected to the outside Suctiontube, internal buckle tube tooth type interface (seal with stuffy cap); suction Water pipe DN125x4m (2 pieces) | |
| There are 1 Normal atmospheric pressure water outlet controlled by DN80 ball valve on the left and rightsides of the pump. | ||
| One DN80 gun pipeline adopts DN80 flexible joint and is controlled by DN80 ball valve. | ||
| Water injection pipe. | There is a DN65 external.water iniection port on both sides of the vehicle body. | |
| 1 DN65 water iniection pipeline. whichy iniect water into the tank through a water pump | ||
| Drain Residual WaterPipe. | To protect the water pump and each ball valve, a residual water valve is installed at the lowest point of the pipeline | |
| Cooling water pipe. | PTO equipped with cooling pipe and stainless steel ball valve | |

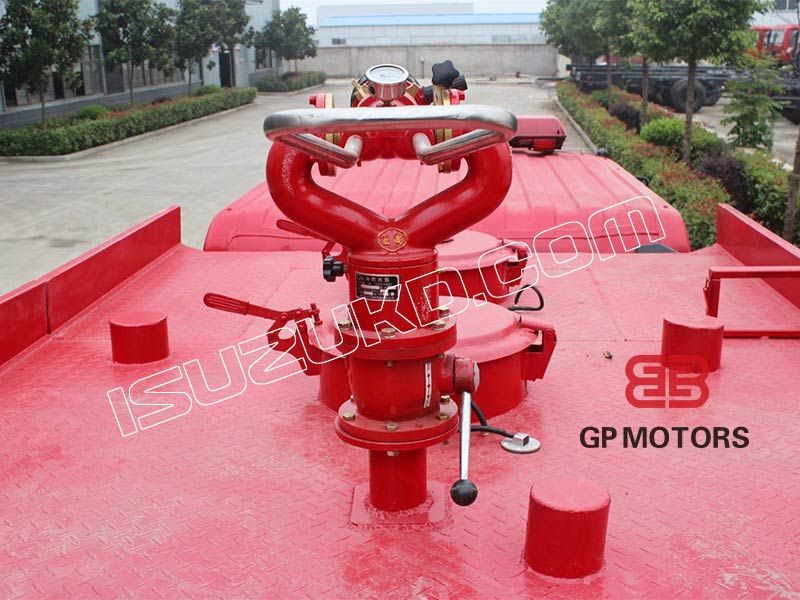

| Fire Monitor. | Rated Flow. | 30US |
| Work pressure. | ≤1.0MPa | |
| Shooting range. | 255m | |
| Horizontal rotation angle. | 360° | |
| Back leaning Angle: | -30~70° | |
