| TECHNICAL SPECIFICATIONS | |||||||
| Main specifications | Chassis brand | ISUZU | |||||
| Chassis model | QL1070A6 | ||||||
| Overall dimension(L*W*H) | 5998×2000×2860mm | ||||||
| Water tank volume | 3,000 liters | ||||||

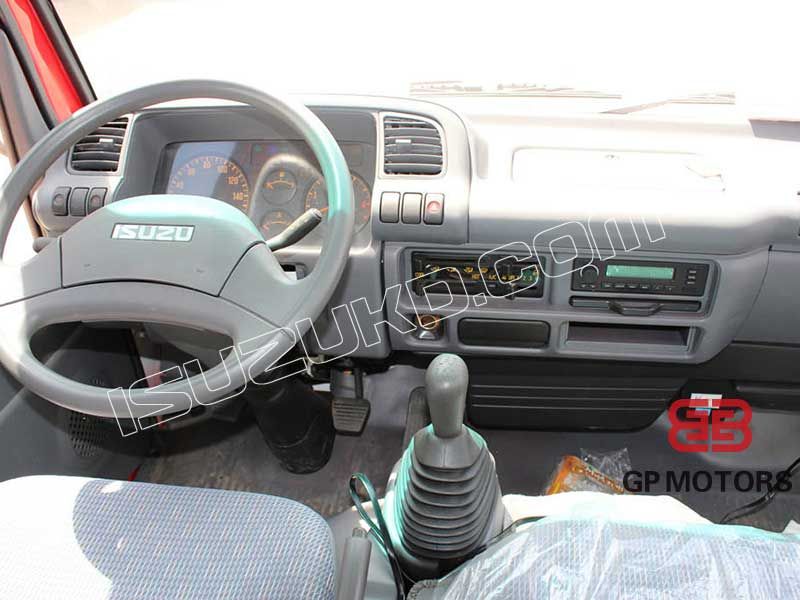

| Cabin | double cabin, with Air conditioner, electronic windows, USB | ||||||
| Chassis | Drive model | 4x2 left hand drive | |||||
| Axle (front/rear) loading | 2.5t/4.8t | ||||||
| Front/rear suspension | 1015/1623mm | ||||||
| Wheel Base | 3360mm | ||||||
| Approach/departure angle | 24/13(°) | ||||||

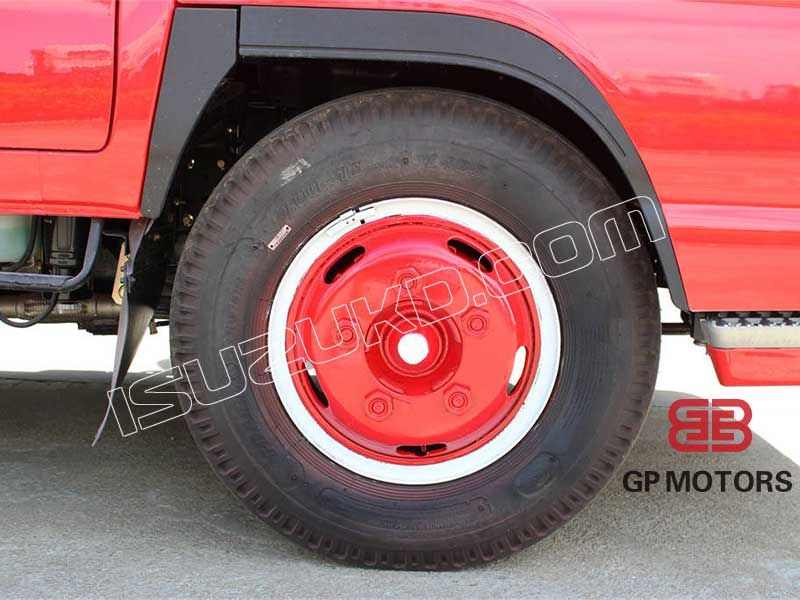

| Tyre size & number | 7.00R16 with one spare tyre | ||||||
| Transmission | ISUZU MSB brand, manual, 5 gears with reverse | ||||||
| Max speed | 98km/h | ||||||
| Brake | Oil brake, With ABS | ||||||
| Color | Red and white including tanker , standard . | ||||||
| Engine | Brand | ISUZU | |||||
| Model | 4KH1CN5HS | ||||||
| Engine Type | Four-cylinder, in-line, water cooling, direct injection(DI) type, turbocharged, intercooling | ||||||
| Horse power | 130 HP | ||||||
| Displacement | 2999ml | ||||||
| Emission | Euro 5 | ||||||

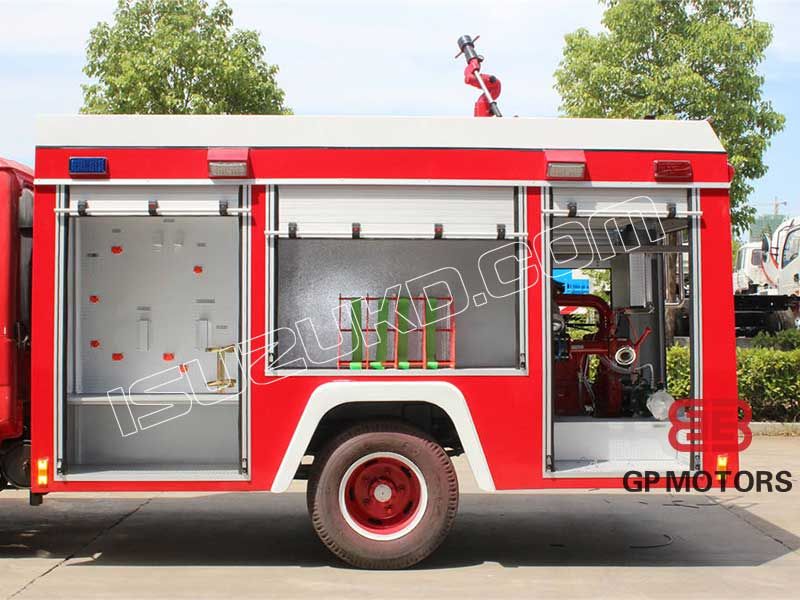

| Upper Body | |||||||
| Water tank volume | 3000 Liters | ||||||
| Tank material | Carbon steel | ||||||
| Water tank thickness | 4 mm | ||||||

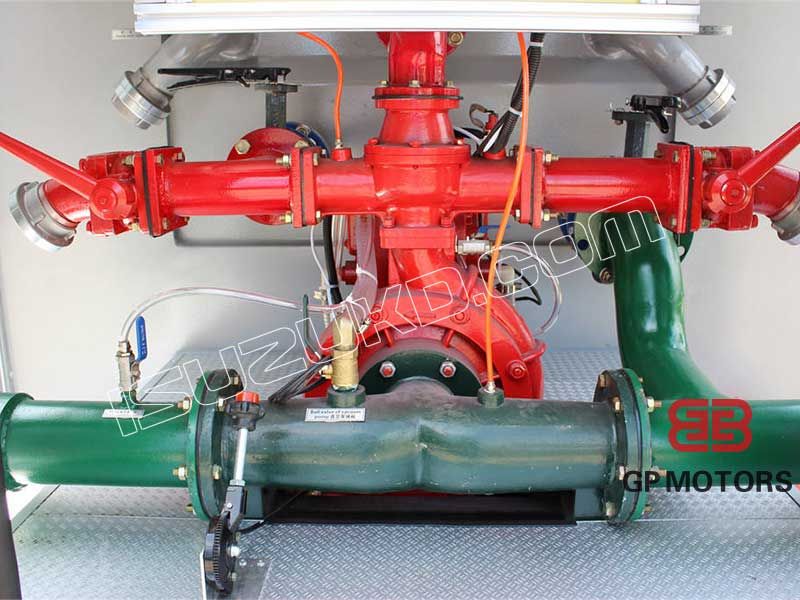

| Fire pump model | CB10/30, Normal pressure pump | ||||||
| Fire pump pressure | ≥1.0 Mpa | ||||||
| Fire pump max suction height | 7 m | ||||||
| Fire pump flow | 30 (L/S) | ||||||
| Fire pump rated speed | 3000 (r/min) | ||||||
| Fire pump time of drawing water | ≤35 (s) | ||||||
| Fire pump Input | 1 unit, diameter: 100mm | ||||||
| Fire pump Outlet | 2 units, diameter: 65mm | ||||||
| Water-foam shooter Model | PS30, mounted on the top of tank | ||||||
| Water-foam shooter nozzle range | Water (m)≥45 m | ||||||
| Max Fire Fighting Distance | ≥60m | ||||||
| Fire monitor flow | 1440 (L/S) | ||||||
| Fire monitor rated working pressure | 0.8 Mpa | ||||||
| Fire monitor rotation angle | 360 (°) | ||||||
| Standard configurations | Water pump operation panel in English, fender should be black, with alarm light, detachable ladder, body rear equipment box under the direction of the upward tilt of about 45 degrees, all interfaces of the vehicle and accessories are British, with a 30m roll of black high-pressure hose | ||||||
