Manufacturer | Qingling Trucks | |
Item | QINGLING ELF 4x4 Tipper Truck | |
Brand | QINGLING | |
Model | PT06ZX | |
Production Time | 25 days | |
Truck Chassis | ||
Specification | Overall dimensions | 5900*2200*2550 mm |
Gross weight | 10,000 kg | |
Kerb weight | 3,300 kg | |
Wheelbase | 3,815 mm | |
Driving type | 4*4 | |
Chassis model | QINGLING 700P Medium-duty | |
Tire size | 8.25-20 | |
Passengers in cab | 3 | |
Engine | Engine model | 4HK1-TC51 |
Type of fuel | Diesel | |
Power | 190 HP | |
Gearbox | MLD 6-shift gearbox | |
Upper Structure | ||
Tipper Body performance | Body Size | 4,000*2000*550 mm |
Body Material | Carbon steel, with inside and outside antirust treatment | |
Body Thickness | Side 4 mm | |
Floor 5mm | ||

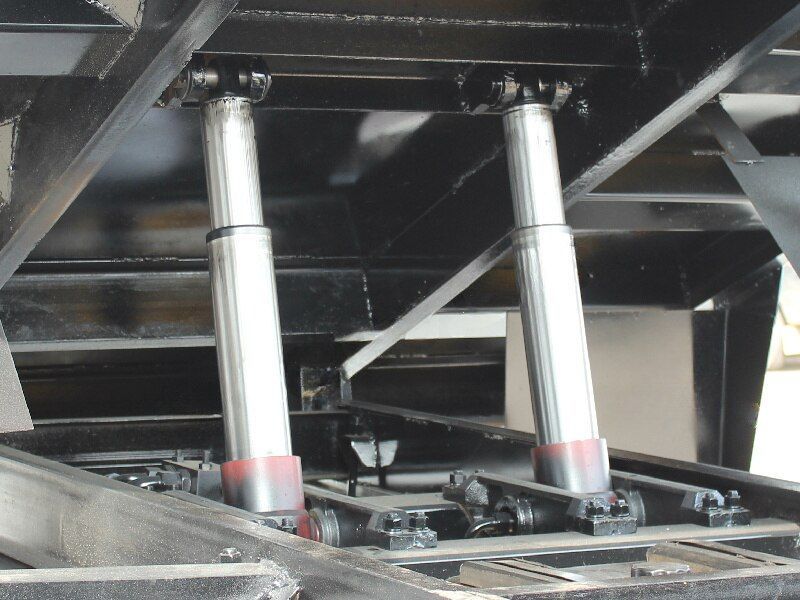

Hydraulic Cylinder | Double Hydraulic cylinders with balance valve | |
Body Shape | Square with drop side | |
Control Panel | English | |
Spare Tire | One set equipped in front of dump body | |
Painting | Two primers, and one final paint coating | |
Color & LOGO | According to wish | |
Factory standard | “U” shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and rubber flaps... | |
Documents | English operation manual, Spare parts list, and all necessary export docs. | |
Optional equipment | 1, Stainless steel body, Aluminum alloy body 2, Road cleaning device in the front of cabin 3, Towing Winch | |
