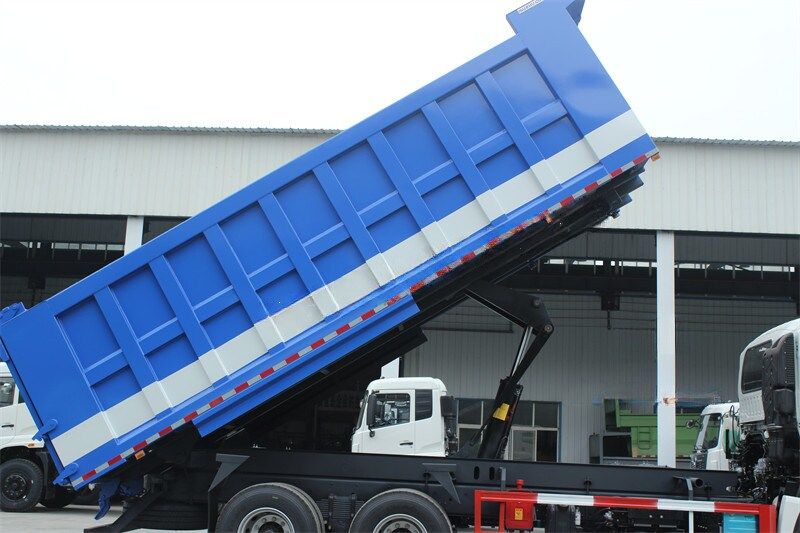

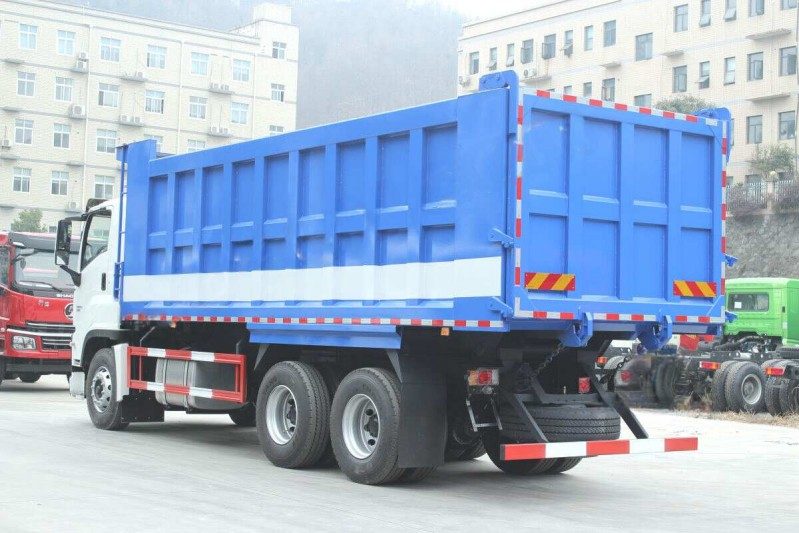

Reinforced dump box
Cargo box with reinforced structure, high quality carbon steel

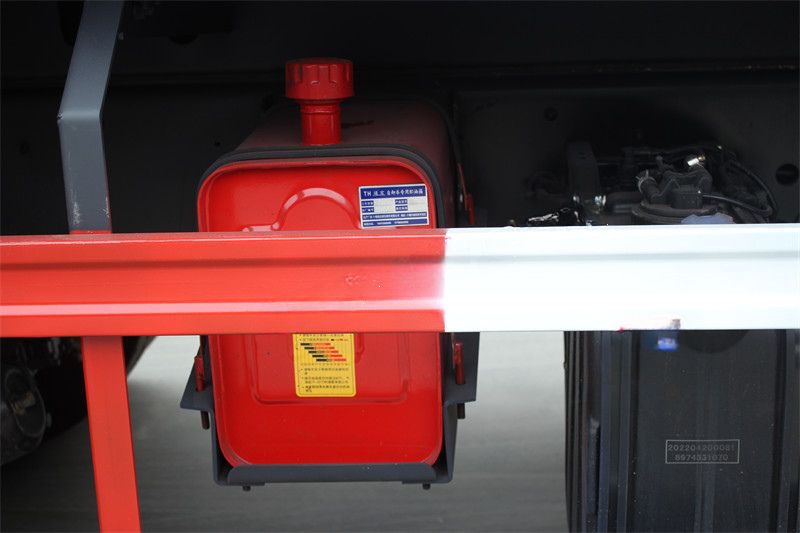

Hydarulic oil tank
Large volume hydraulic oil tank
details show
Manufacturer | Qingling Trucks | |

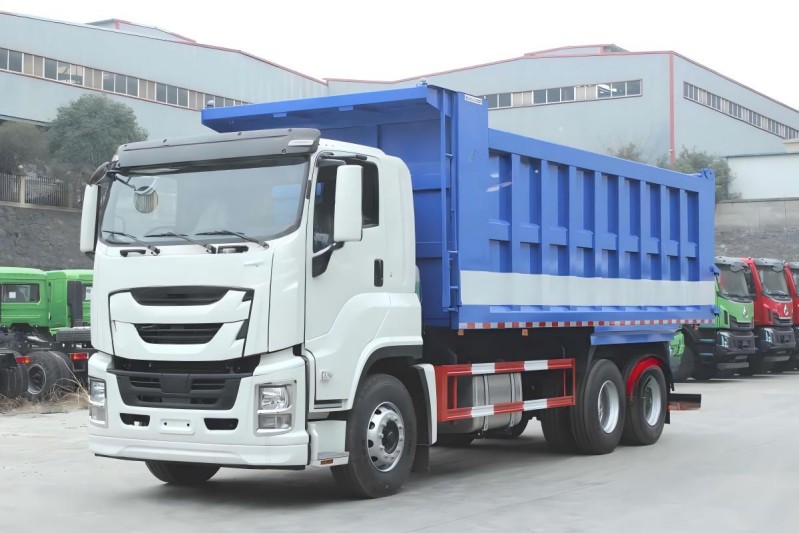

Item | QINGLING Dump Truck | |
Brand | QINGLING | |
Model | PT34ZX | |
Production Time | 35 days | |
Truck Chassis | ||
Specification | Overall dimensions | 9650*2600*3700 mm |
Gross weight | 34,000 kg | |
Kerb weight | 15,500 kg | |
Wheelbase | 4565+1370 mm | |
Driving type | 6*4 | |
Chassis model | QINGLING GIGA heavy-duty | |
Tire size | 315/80R22.5 | |
Passengers in cab | 3 | |
Engine | Engine model | 6WG1-TCG52 |
42Type of fuel | Diesel | |
Power | 420 HP | |
Gearbox | 12-shift gearbox | |
Upper Structure | ||
Boom Crane performance | Dump box size | 6000x2400x1500 |
Loading capcity | 25~30 tons | |
Body material | High performance carbon steel | |
Plate thickness | Side 6mm, bottom 8mm | |
Control | Hydraulic | |

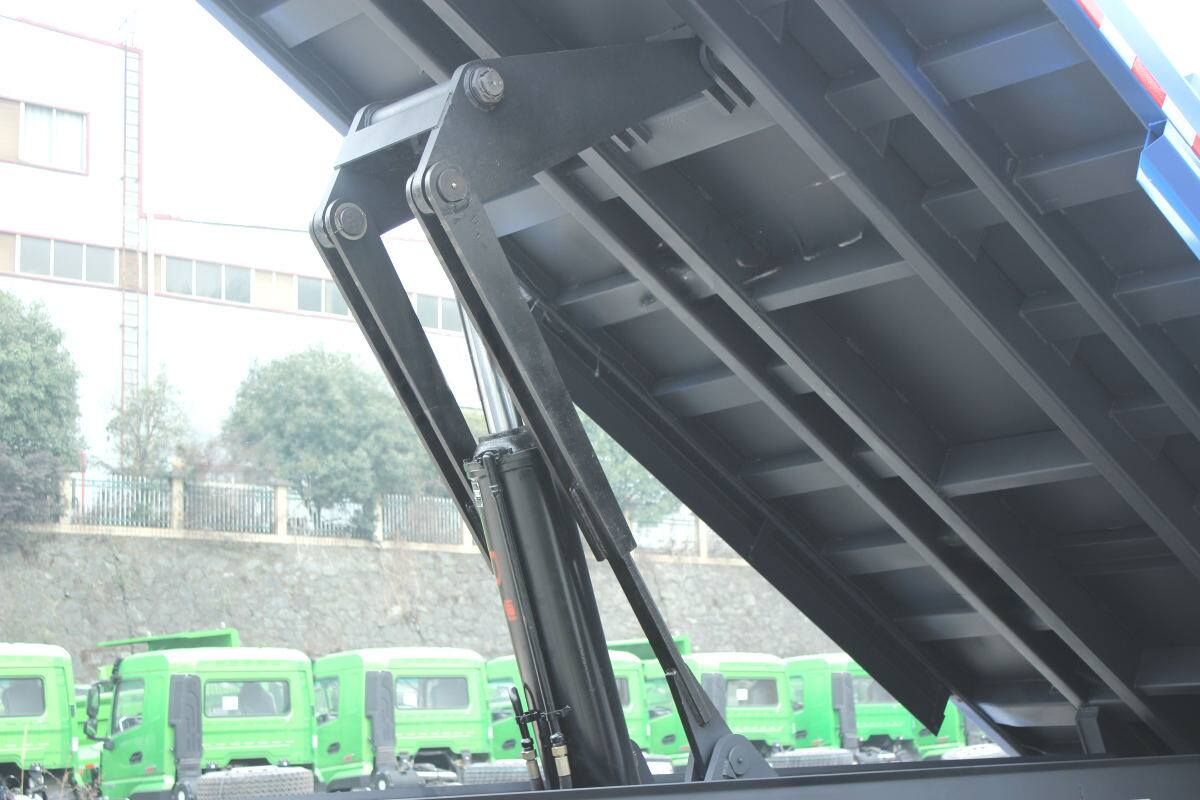

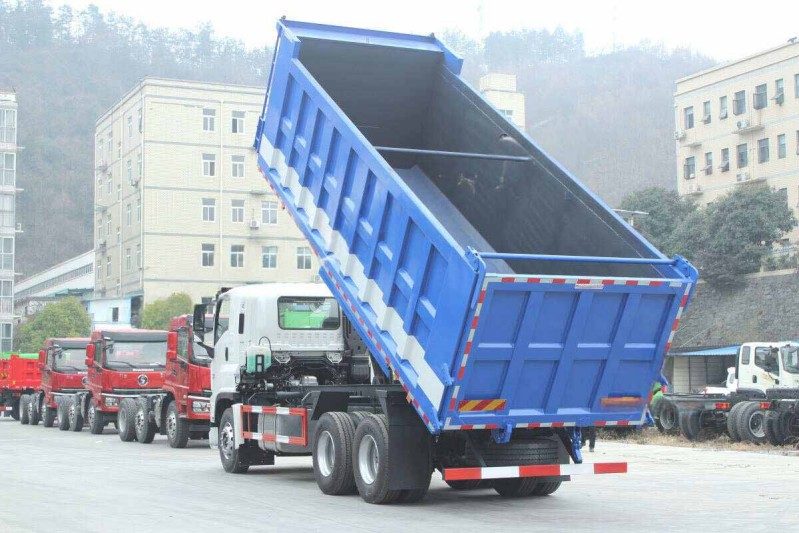

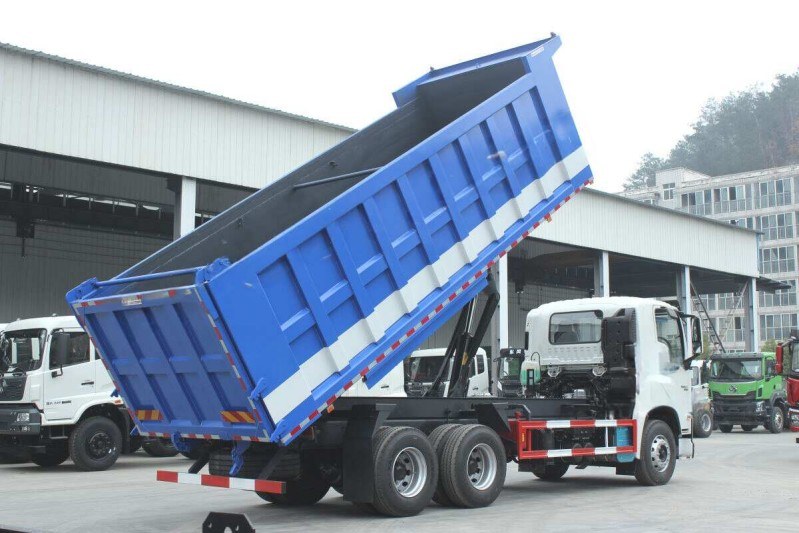

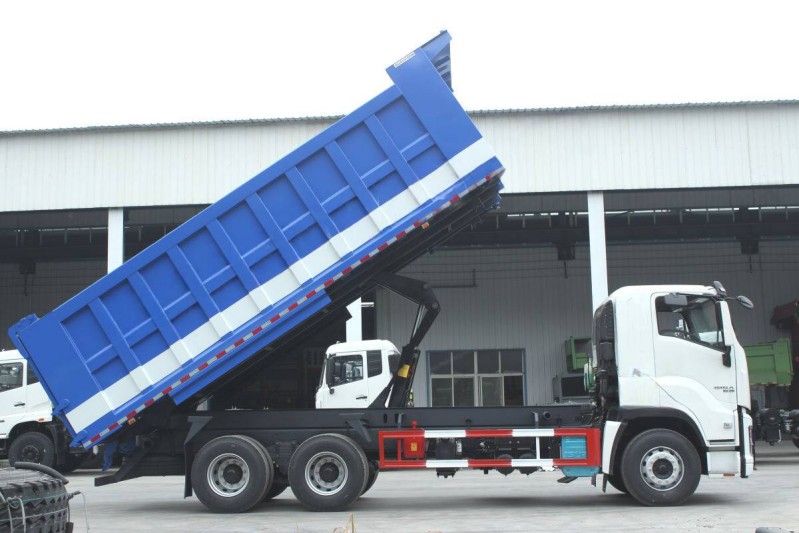

Lifting type | Middle lifting device | |
Tipping angle | 45 degree | |
Painting | Two primers, and one final paint coating | |
Color & LOGO | According to wish | |
Factory standard | “U” shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and rubber flaps... | |
Documents | English operation manual, Spare parts list, and all necessary export docs. | |
Optional equipment | 1, Front lifting system 2, U-shape dump box 3, Working camera can be equipped | |
