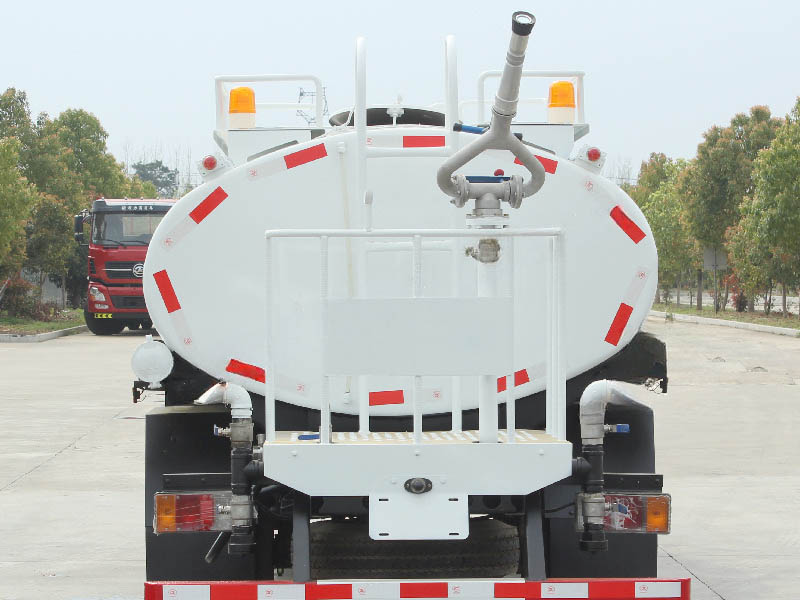

Water canon for water spraying
Water canon for water spraying, with distance 40-45m
Body application
SPECIFICATIONS
Manufacturer | Qingling Trucks | |
Item | QINGLING NPR Drinkable Water Tanker Truck | |
Brand | QINGLING | |
Model | PT05YS | |
Production Time | 25 days | |
Truck Chassis | ||
Specification | Overall dimensions | 5990*2000*2450 mm |
Gross weight | 7,300 kg | |
Kerb weight | 3,200 kg | |
Wheelbase | 3,360 mm | |
Driving type | 4*2 | |
Chassis model | QINGLING NQR Light-duty | |
Tire size | 7.00-16 | |
Passengers in cab | 3 | |
Engine | Engine model | 4KH1CN5HS |
Type of fuel | Diesel | |
Power | 130HP | |
Gearbox | MSB 5-shift gearbox | |
Upper Structure | ||
Water Tanker performance | Tank Capacity | 5,000L |
Tank Material | 4mm food grade stainless steel 304-2B material | |
Water Pump | Top Chinese brand | |
65QZB-40/50 model stainless steel water pump, flow rate 40m³/h | ||
Suction Time | 180 s | |
Tank Shape | Ellipse as standard | |

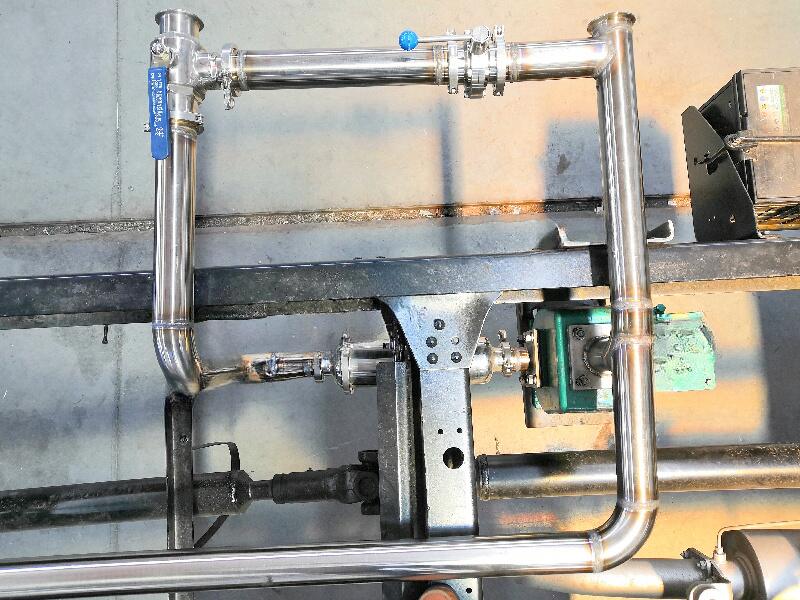

Pipeline | 3m food grade hose DN65 mm | |
Function | Standard Pump In and Pump Out | |
Discharge Valve | Rear platform with water canon and water spraying nozzles | |
Control Panel | English | |
Discharging system | Gravity discharge or pump out from tank body. | |
Painting | Two primers, and one final paint coating | |
Color & LOGO | According to wish | |
Factory standard | “U” shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and rubber flaps... | |
Documents | English operation manual, Spare parts list, and all necessary export docs. | |
Optional equipment | 1, Stainless steel tank, Aluminum alloy tank 2, Wider platform and Fire Cannon 3, Electricity controlled separately sprinkler 4, Spreading salt water Snow-melting agent | |
DIMENSIONS
