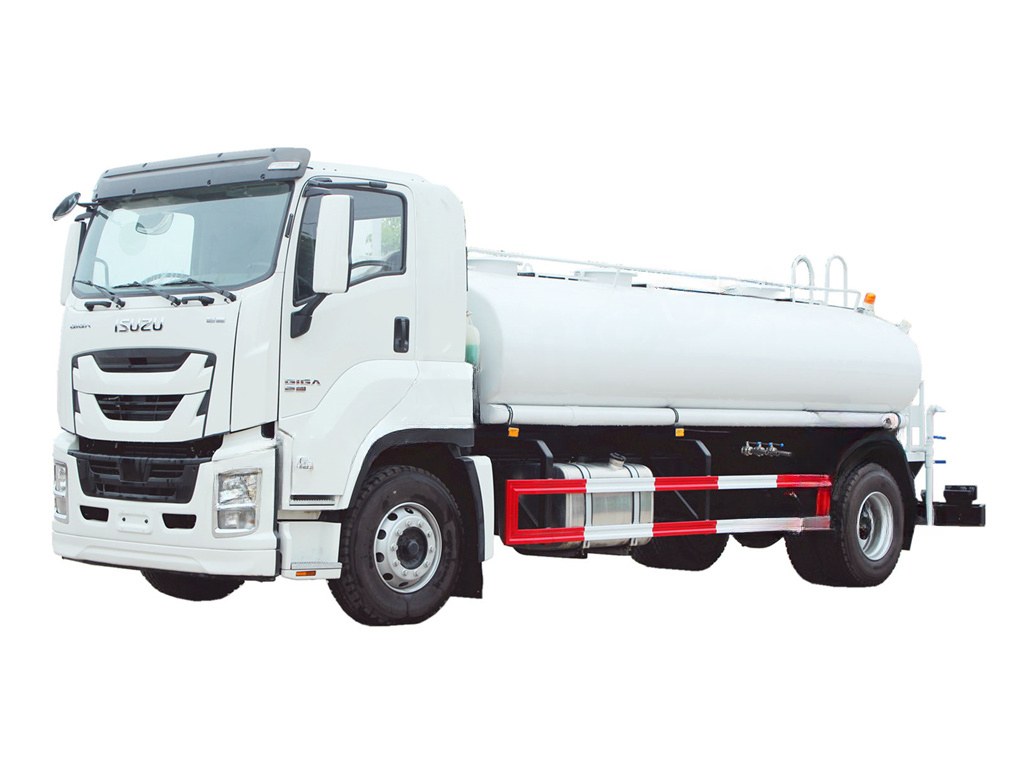

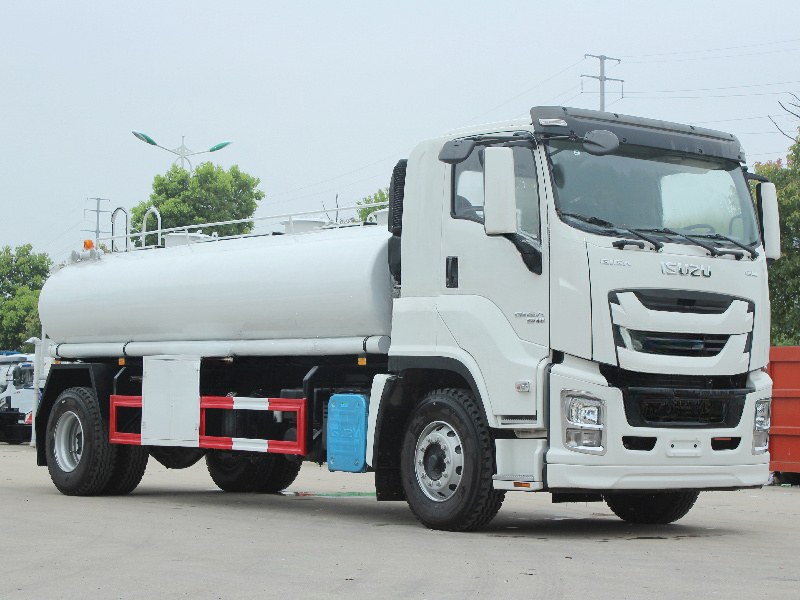

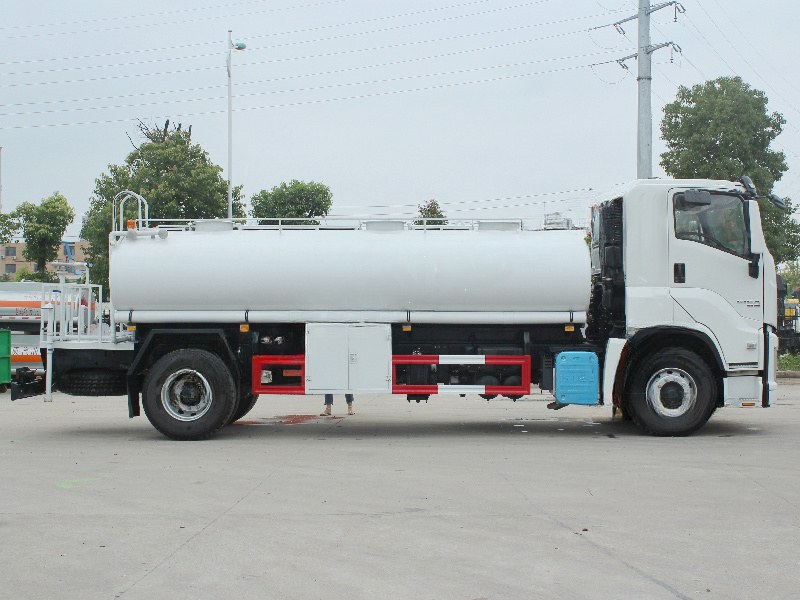

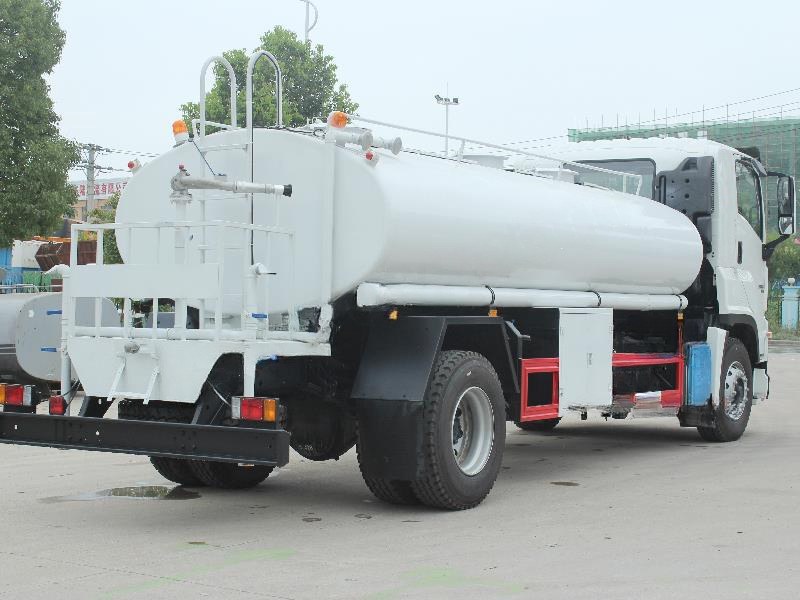

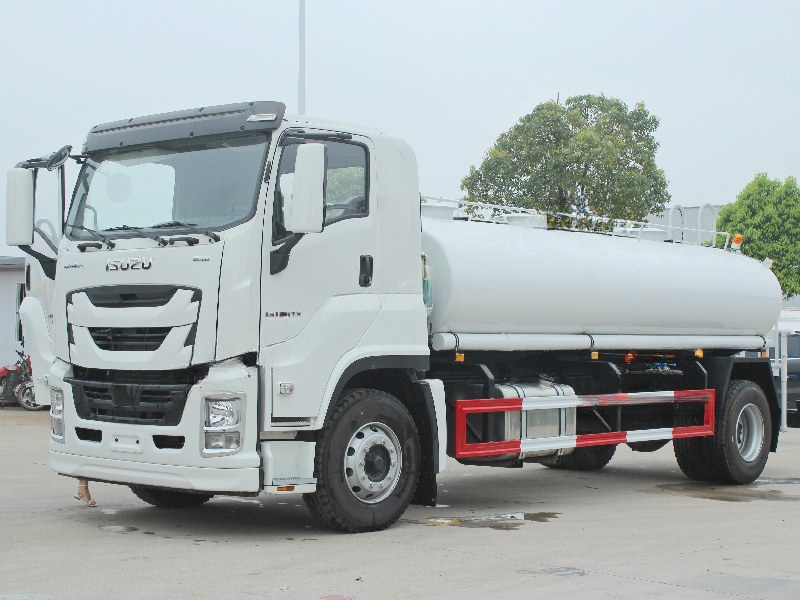

ISUZU GIGA Water Hauling Truck
Work capacity:15000 liters
Engine power:350 HP
Engine type:6UZ1-TCG61
Axle drive:4x2
Gear box:FAST 12-speed, manual
Remarks:ISUZU GlGA chassis, large water tank with watercannon
Body application
SPECIFICATIONS
| Technical Parameters | |
| Vehicle Name | ISUZU GIGA water tanker truck |
| Driving Type | 4×2,left hand drive |
| Color | White |
| Weights | |
| Gross vehicle weight (kg) | 22000 |
| Curb weight(kg) | 8500 |
| Payload (kg) | 15000 kg |
| Dimensions | |
| Wheelbase(mm) | 4600 |
| Overall Dimension(mm) | 8500×2500×3250 |
| Tanker volume | 15000 L (4000 gallon) |
| Max speed(km/h) | 110 |
| Engine | |
| Engine model | 6UZ1-TCG61 |
| Engine type | 4 stroke water-cooled, inter-cooling, turbocharged |
| No. of cylinders | 6 cylinders |
| Displacement(ml) | 9839 |
| Max. output (kw) | 257 |
| Max. power (HP) | 350 |
| Driving system | |
| Transmission | FAST 12-speed ,12 forwards,2 reverse, manual |
| Steering | Power steering |
| Brake | Air brake |
| Cab | |
| Cabin | ISUZU GIGA |
| Standard configuration | with A/C, ABS, power window, central lock, multifunction steering wheel |
| Axle | |
| Front axle | 9 tons |
| Rear axle | 13 tons |
| Tire specification | |
| Tire specification | 295/80R22.5 |
| No. of tires | 6+1 pcs |
| Water tanker | |
| Water tanker material | High quality carbon steel (Q235). |
| Introduction | 1. Suction≥7m Sprinkler width≥14m Range≥28m |

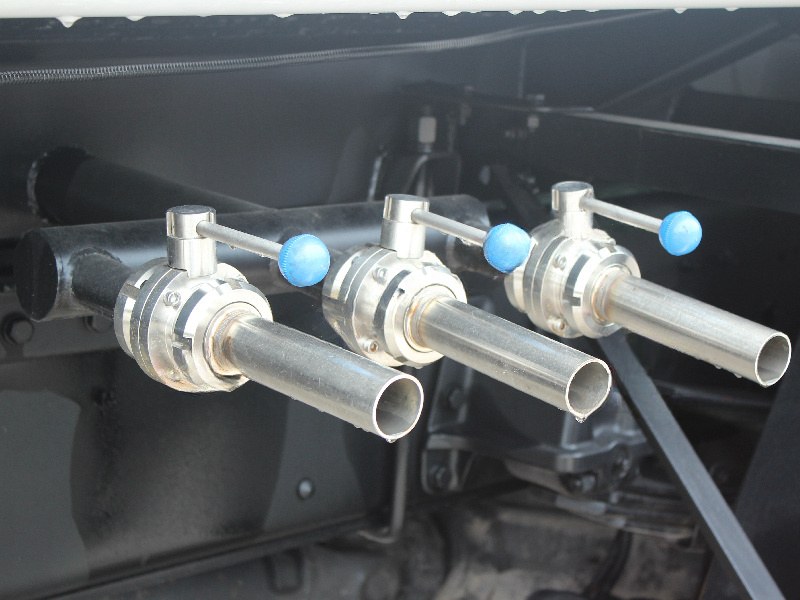

| 2. Equipped with front, rear and side nozzles | |

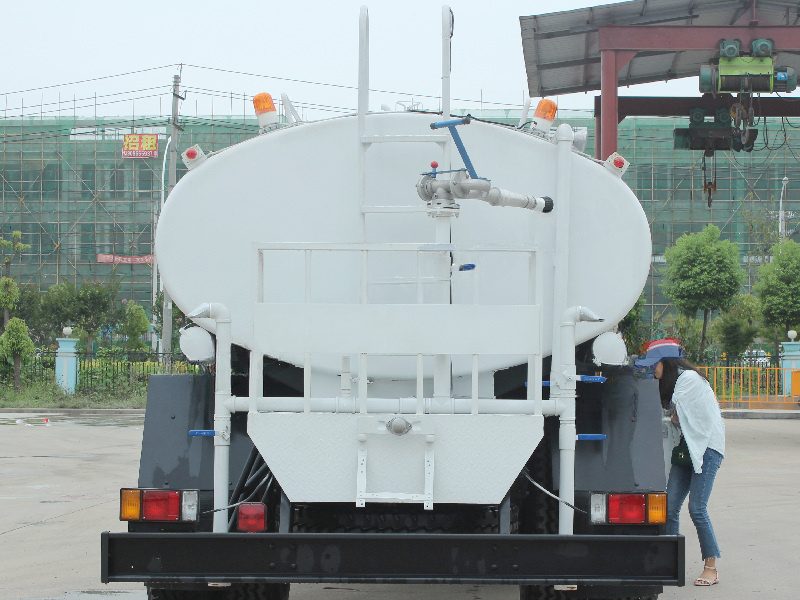

| 3. Equipped with the working platform and water cannon at the rear | |
| 4. China famous brand water pump | |
| Manhole | 1 unit DN600mm manhole |
| Water pump | Water pump model: 80QZF-60/90N (N/S) |
| Water pump flow rate(L/m): 60m3/h | |
| Head of delivery(m): 90m | |
| Self-priming function(min/4m):1.5 | |
| Efficiency(%):95% | |
| Related rotate speed(r/min)1180 | |
| matched power(kw):22 | |
DIMENSIONS
| Common faults of the water pump of ISUZU water bowser trucks | ||
| Malfunction | Possible Reason | Solution |
| Pump Cannot Self-Priming | 1.There is not enough or no Liquid Storage internal of Pump 2.There is leakage for suction pipeline 3.Revolving speed too low 4.Suction Lifting too high or the inlet pipeline blocked 5.Bad airproof for pump | 1.Add some Liquid Storage 2.Carefully examine and eliminate the problem 3.Adjust to most suitable speed 4.Reduce lifting height or inlet pipeline length 5.Repair it or replace it |
| Not Enough Pressure | 1. Inlet pipeline is blocked 2.Impeller sealing ring is damaged 3.Not enough power or low revolving speed 4.Inlet or Qutlet valve not fully open | 1.Clean up the blockage 2.Replace new sealing ring 3.Increase power and adjust to suitable speed 4.Open the valves completely |
| High Consumption for pump axle | 1. Flow too high 2.Revolving speed too high 3.Bearing distortion or lmpellerblocked 4.Internal pipeline blocked or stuck | 1.Decrease the flow 2.Properly reduce the revolving speed 3.Adjust or replace new one 4.Cleaning up |
| Too Noise for pump | 1.Pump foot instability 2.Cavitation phenomena 3.Bearing sever wear 4.Internal pipeline in pump blocked or stuck 5.Sundries in pump or pipeline 6.Pump and PTo not same shaft | 1.Reinforce the pump 2.Adjust working environment 3.Replace it 4.Adjust or replace it 5.Cleaning up the pump or pipeline 6.Adjust to same shaft |
