Original italy MORO vacuum pump
Original Italy MORO vacuum pump, PM110W model water cooling pump, durable life service
Body application
SPECIFICATIONS
Manufacturer | Qingling Trucks | |

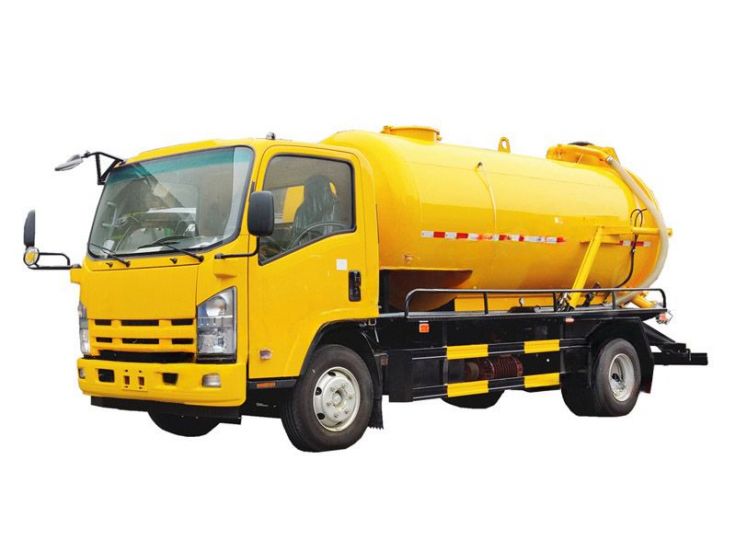

Item | Qingling FTR Septic Pump Water Jetting Tanker Truck | |
Brand | Qingling | |
Model | PT10QW | |
Production Time | 30 days | |
Truck Chassis | ||
Specification | Overall dimensions | 8500*2500*3200 mm |
Gross weight | 18,000 kg | |
Kerb weight | 9,500 kg | |
Wheelbase | 4700 mm | |
Driving type | 4*2 | |
Chassis model | Qingling FTR Heavy-duty | |
Tire size | 10.00R20 | |
Passengers in cab | 3 | |
Engine | Engine model | 4HK1-TC50 |
Type of fuel | Diesel | |
Power | 205HP | |
Gearbox | MLD 6-shift gearbox | |
Upper Structure | ||
Vacuum Tanker performance | Tank Capacity | 6,000L |
Tank Material | 6mm carbon steel with antiseptic treatment | |
Vacuum Pump | Original Italy Import famous MORO PM110W brand | |
Suction Time | 250 s | |
Tank lifting angle | ≥45° | |
Self-suction height | 7 m | |
Suction hose | 7m length with DN 100 mm | |
Rear cover | Hydraulic control | |
Water Tanker performance | Tank Capacity | 4,000L |
Tank Material | 4mm carbon steel with antiseptic treatment | |
High Pressure Water Pump | Original Germany Import famous PINFL brand | |
High Pressure Pipe | 60m high pressure water pipeline with diameter φ19 | |
Jetting Nozzle | Standard 10 units with different models | |
Control Panel | English | |
Discharging system | Gravity discharge or pump out from tank body. | |
Painting | Two primers, and one final paint coating | |
Color & LOGO | According to wish | |
Factory standard | “U” shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and rubber flaps... | |
Documents | English operation manual, Spare parts list, and all necessary export docs. | |
Optional equipment | 1, Stainless steel tank, Aluminum alloy tank 2, Wider platform for Pipeline Storage 3, Wireless Electricity controller optional | |
DIMENSIONS
