60m High pressure water jetting pipeline
Standard 60m high pressure water jetting pipeline with φ19mm, equipped with 10 sets jetting nozzles
Body application
SPECIFICATIONS
Manufacturer | Qingling Trucks | |
Item | QINGING ELF / NPR Septic Pump Water Jetting Truck | |
Brand | QINGLING | |
Model | PT08QW | |
Production Time | 30 days | |
Truck Chassis | ||
Specification | Overall dimensions | 7200*2200*2850 mm |
Gross weight | 10,000 kg | |
Kerb weight | 6,000 kg | |
Wheelbase | 4475 mm | |
Driving type | 4*2 | |
Chassis model | QINGLING ELF Light-duty | |
Tire size | 235/75R17.5 | |
Passengers in cab | 3 | |
Engine | Engine model | 4HK1-TCG51 |
Type of fuel | Diesel | |
Power | 190HP | |
Gearbox | MLD 6-shift gearbox | |
Upper Structure | ||
Vacuum Tanker performance | Tank Capacity | 5,000L |
Tank Material | 6mm carbon steel with antiseptic treatment | |
Vacuum Pump | Original Italy Import famous JUROP brand | |
Suction Time | 200 s | |
Tank lifting angle | ≥45° | |
Self-suction height | 7 m | |
Suction hose | 7m length with DN 100 mm | |
Rear cover | Hydraulic control | |
Water Tanker performance | Tank Capacity | 3,000L |
Tank Material | 4mm carbon steel with antiseptic treatment | |
High Pressure Water Pump | Original Germany Import famous PINFL brand | |
High Pressure Pipe | 60m high pressure water pipeline with diameter φ19 | |
Jetting Nozzle | Standard 10 units with different models | |
Control Panel | English | |
Discharging system | Gravity discharge or pump out from tank body. | |
Painting | Two primers, and one final paint coating | |
Color & LOGO | According to wish | |
Factory standard | “U” shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and rubber flaps... | |
Documents | English operation manual, Spare parts list, and all necessary export docs. | |
Optional equipment | 1, Stainless steel tank, Aluminum alloy tank 2, Wider platform for Pipeline Storage 3, Wireless Electricity controller optional | |

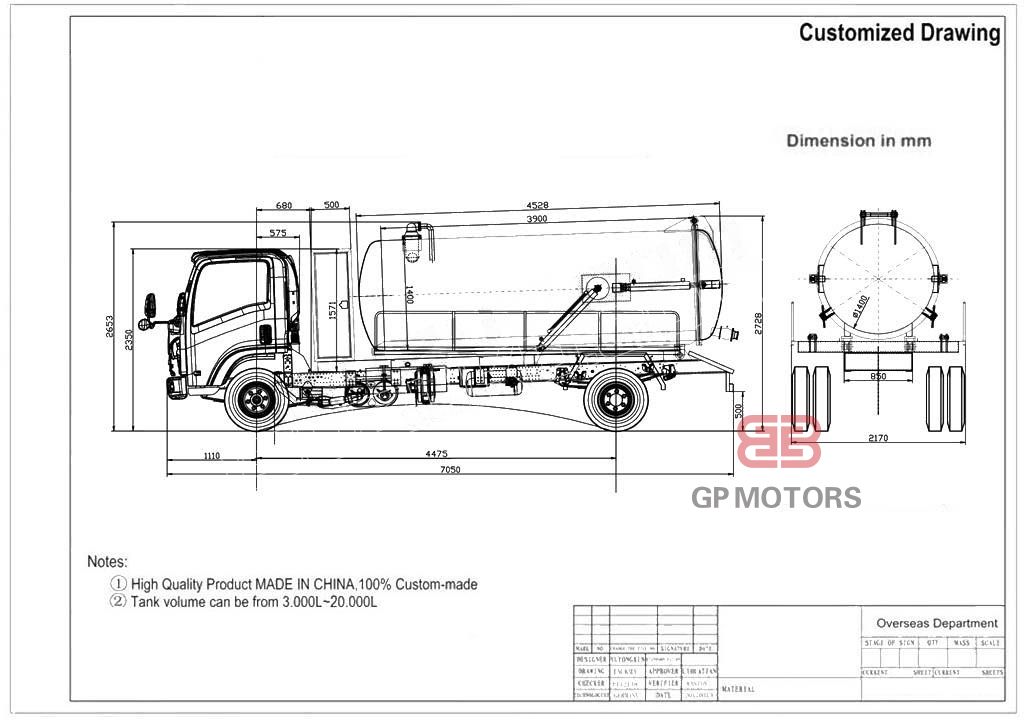

DIMENSIONS
