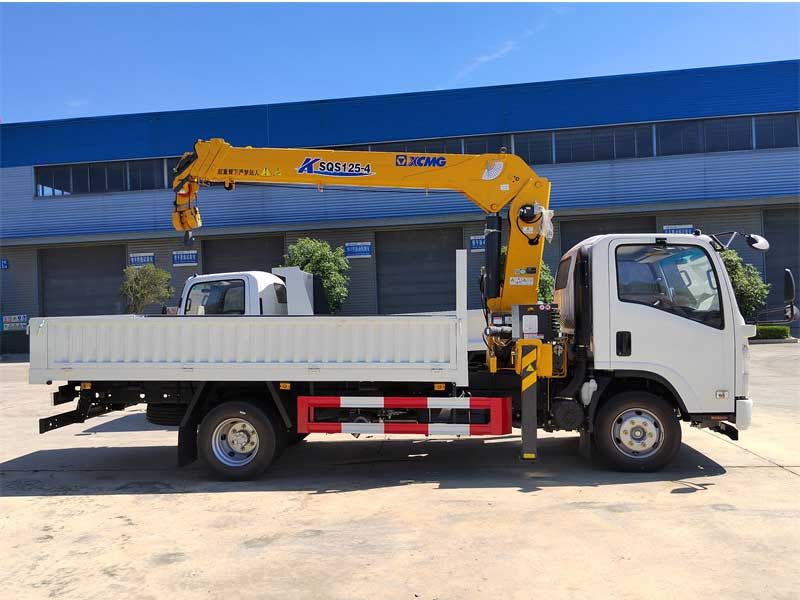

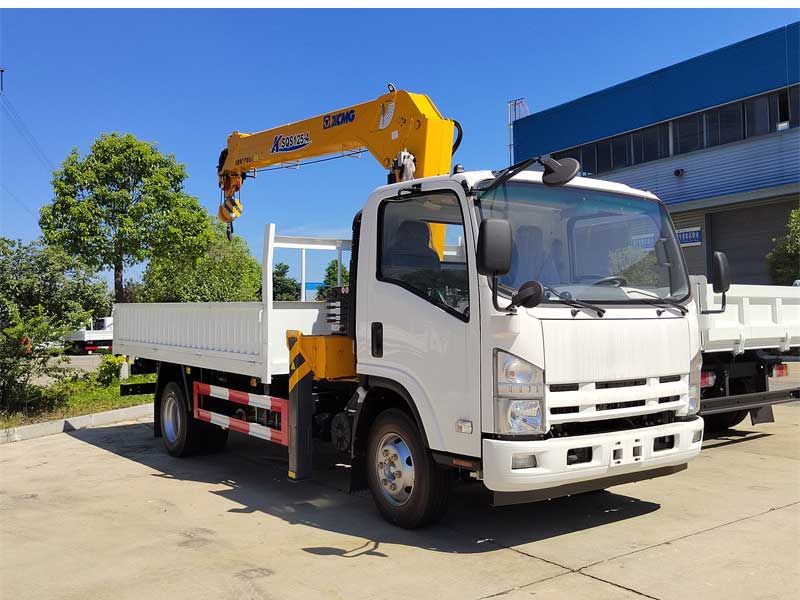

Performance highlights of ISUZU truck-mounted XCMG cranes
«The pentagonal boom section has good neutrality and high cross-section bending resistance. «Automatic end-position hook retracting device improves driving safety «The over-roll protection device and the optional remote flameout device can avoid frequent lifting and lowering of the crane, making the operation more efficient. «The standard XCMG special wide-temperature hydraulic oil can be used in winter and summer. «Various forms of operation to meet the needs of different customers
Tips for keeping your ISUZU truck-mounted crane balanced
ISUZU crane trucks are increasingly used in engineering construction. Whether it is a knuckle or telescopic boom crane, the number of boom sections is two or more and the boom is long. If the goods being lifted are too heavy, the balance of the vehicle will be affected. Problems may occur, so we need to take some countermeasures before carrying out lifting operations to prevent the vehicle from tilting or overturning.
details show
| Product Technical Specifications | |
| Product name | ISUZU Truck With Crane XCMG |
| Vehicle brand | POWERSTAR |
| Chassis brand | ISUZU |
| Driving type | 4×2，left hand drive |
| Cab | Single row, with A/C, ABS |
| No. of passengers | 3 |
| Overall dimensions | 7100*2300*2800 mm |
| Cargo dimensions | 4500*2300*550 mm |
| G.V.W | 11000 kg |
| Curb weight | 5850 kg |
| Loading capacity | 5000 kg |
| Max speed | 90 Km/h |
| Chassis model | QL110A8 |
| Wheel base | 4475 mm |
| Gear box | 6 forwards &1 reverse, manual |
| Brake system | Air brake |
| Operation control system | Power Steering |
| Electric system | 24V |
| Tires & Quantity | 235/75R17.5 & 16+1 |
| Engine | |
| Engine brand | ISUZU |
| Engine model | 4HK1-TC50 |
| Maximum power | 140 kw / 190 hp |
| Displacement | 5193 ml |
| Emission standard | Euro 5 |
| Type of fuel | Diesel |
| Type | 4 cylinders, in line, water cooling, turbocharged |

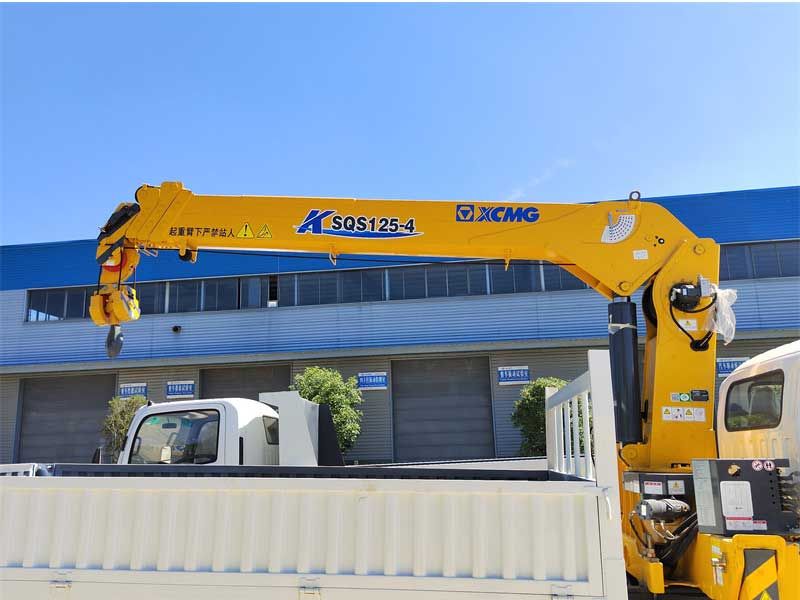

| XCMG Crane Specifications | |
| Model | KSQS125 |
| Max Lifting Capacity | 5000 kg |
| Max Lifting Moment | 12.5 T.M |
| Crane Weight | 2200 KG |
| Installation Space | 900 mm |
| Max. Working Radius | 11 m |
| Max. Lifting Height | 13 m |
| Max Pressure of Hydraulic System | 22 Mpa |
| Oil Tank Capacity | 90 L |
| Rotation Angle | All Rotation 360° |
| Boom Section | 4 |
