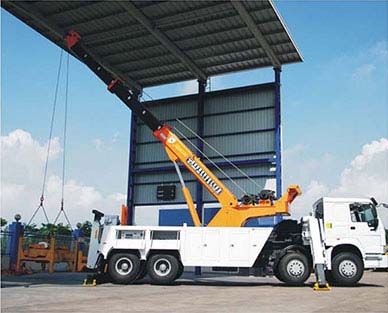

The ifing function is the most impontant function ofthe lsuzu rotany tow truck. it uses the telescopic., ifino. folding and other movements ofthe suppoting am toift the damaged vehicle from the front or rea, and then tow the entire vehicle away from the scene. The brackets of lsuzu tow trucks have various structural fomsThey can generaly lift the axles, wheels, leaf springs, frames, etc. of the accident vehicle and are easy to assemble and disassemble.

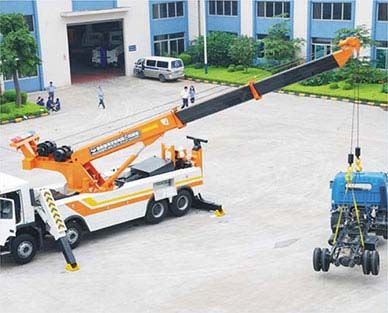

The lsuzu rotator tow truck is also equipped with a suport mechanism. The suport mechanism includes front legs and rear legs. Complex rescues often require laterallifting and towing operations with a boom. The suppor mechanism greaty improves the ovetuming resistance of the tow tnuck when it is lited sideways
details show
| CHASSIS | ||
| Cabin | GlGA standard cabin,left hand drive,with air conditioner,allowed for 2~3 persons | |
| No load(kg) | Curb Weight | 13070 |
| Front axle | 7000*2 | |
| Rear axle | 18000*2 | |
| Full load | Max. Overall Weight | 31000 |
| Overall Dimensions(mm) | Length | 11430 |
| Width | 2500 | |
| Height | 3270 | |
| Wheel base(mm) | 1800+4600+1350 | |
| Track(mm) | 2022/1830 | |
| F/R Suspension(mm) | 1500/2200 | |
| A/D Angle(°) | 16/18 | |
| Driving Model | 8X4 | |
| Tyre | 12R22.5 | |
| Max.Speed(km/h) | 105 | |
| Max.Grade-ability(%) | 30 | |
| Min. Turning Diameter(m) | 22.6 | |
| Min. Ground clearance(mm) | 310 | |
| Engine | Model | ISUZU 6WG1 |
| Horsepower(HP) | 420 | |
| Displacement(mL) | 9726 | |
| Transmisslon | FAST 12-Shift,10 forwards&2 reverses | |
| WRECKER EQUIPMENT | ||
| Max. Towing Weight(kg) | 43000 | |
| Lifting System | Max. Lifting Weight(kg) | 25000 |
| Max. Lifting Weight under all extension(kg) | 8300 | |
| Effective Length of Corbeling Arm(mm) | 3650 | |
| Extend-retract of Corbeling Arm(mm) | 1750 | |
| Slope Angle of Corbeling Arm(°) | 7 | |
| Folding angle under no load(°) | -7~92 | |
| Folding angle under load(°) | -7~16 | |
| Max. Ground Distance(mm) | <900 | |
| Landing Strength(KN) | 80*2 | |
| Hydraulic Hose | Tianhe,Guangdong Province | |
| Hydraulic Joint | Germany technology and exported Sealing rings | |
| Hydraulic Lock | Jiangyin Mingcheng Hydraulic and Mechanical Co..Ltd. | |
| Swivel Joint | Yangzhou Zhongmei Pressure Parts Co.Ltd | |
| Compartment plate | One-step Modeling by Germany 3P2A 1000T punching machine | |
| Wrecker structure parameters | ||
| Boom | Max Lifting weight | 30000 kg |
| Boom extended length | 4500 mm | |
| Max. Lifting Height | 12300 mm | |
| Inclination Angle | 5°-60° | |
| Rotating Angle | 360° | |
| Number of stages | 3 Stages | |
| Outriggers | Rated Lifting weight | 12500 kg |
| Rated Lifting Fully Extended weight | 4500 kg | |
| Longitudinal Span between Front Outrigger and Rear Outrigger | 7350 mm | |
| Transverse Span of Front Outriggers | 5490 mm | |
| Transverse Span of Rear Outriggers | 4387 mm | |
| Rated Towing Weight | 50000 kg | |
| Length of Cable wire | 25 m | |
| Equipment | High quality hydraulic part, single-level telescopic lifting arm, two units of hydraulic winch 15ton , tool case, two outriggersmanual operation device, two floodlight, one alarm lamp and basic accessores | |
